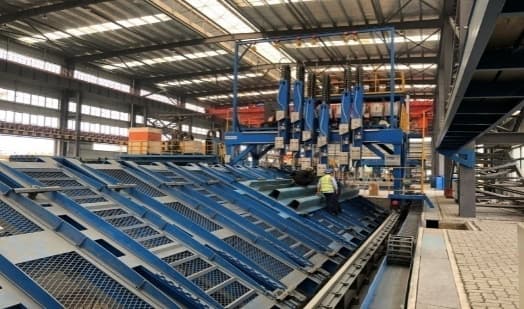

Steel bridge automated production line
Product Offering
Steel Bridge Intelligent Welding Equipment & Automated Production Lines
钢桥智能焊接装备及自动化生产线
Special-purpose robotic equipment and automated production lines for orthotropic steel deck and steel bridge fabrication, covering surface preparation, U-rib assembly, internal and external welding, synchronous welding, plate-unit straightening, robotic component welding, weld inspection and defect repair.
面向正交异性钢桥面板及钢桥结构制造的特种机器人和自动化生产线，覆盖焊前处理、U肋组装、内外焊接、同步焊接、板单元矫正、部件机器人焊接、焊缝检测及缺陷返修等主要工序。
Supplied by Wuhan Lixin Technology Co., Ltd.
Overview
Product overview
Lixin develops intelligent welding equipment and automated production systems for steel bridge fabrication based on robotic technologies for narrow and enclosed spaces.
The equipment portfolio covers the principal manufacturing processes for U-rib stiffened orthotropic steel deck panels. Individual machines can be supplied independently or integrated into automated and digital production lines according to the customer’s fabrication process, production capacity and plant configuration.
锂鑫科技依托狭小密闭空间机器人作业技术，研发面向钢桥制造的系列智能焊接装备和自动化生产系统。
装备体系覆盖U肋加劲正交异性钢桥面板主要生产工序，可根据客户制造工艺、产能和厂房条件提供单机设备，也可组合形成自动化、数字化钢桥板单元生产线。
Applications
Typical applications
- Orthotropic steel deck fabrication
- U-rib stiffened bridge deck panel production
- Steel box-girder fabrication
- Highway and railway steel bridge manufacturing
- New automated steel bridge production lines
- Intelligent upgrading of existing fabrication plants
- Projects requiring U-rib internal, external or double-sided welding
- High-volume standardized steel bridge component production
- 正交异性钢桥面板制造
- U肋加劲钢桥板单元生产
- 钢箱梁制造
- 公路及铁路钢桥制造
- 新建钢桥自动化生产线
- 既有钢桥制造基地智能化升级
- U肋内焊、外焊及双面焊制造项目
- 大批量、标准化钢桥部件生产
Features
Key product features
- Special-purpose systems developed for confined U-rib spaces
- Complete process coverage from preparation and assembly to welding, straightening, inspection and repair
- U-rib internal welding, external welding and synchronous internal/external welding configurations
- Automated deck-plate grinding, U-rib cleaning and positioning
- Mechanical straightening for welding deformation
- Robotic welding for diaphragms and connecting plates
- Laser cleaning, robotic grinding and U-rib access-opening equipment
- Integrated video monitoring, weld inspection and defect repair
- Flexible delivery as individual machines, production-line modules or complete automated lines
- 针对U肋内部狭小密闭空间开发的专用装备
- 覆盖前处理、组装、焊接、矫正、检测及返修等制造环节
- 支持U肋内焊、外焊及内外同步焊接配置
- 配套面板自动打磨、U肋清洗及定位组装设备
- 配置焊接变形机械矫正设备
- 配置横隔板及连接板机器人焊接系统
- 配套激光清洗、机器人修磨及U肋开孔设备
- 集成视频监控、焊缝检测和缺陷返修能力
- 可提供单机、产线模块或完整自动化生产线
Offering Details
Technical Details & Applications
Equipment Portfolio

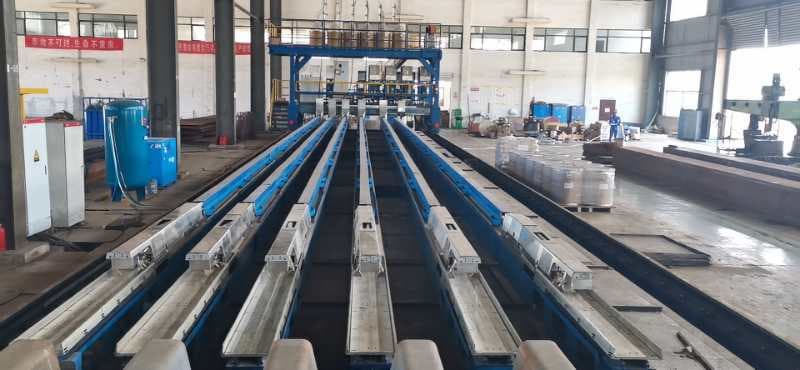

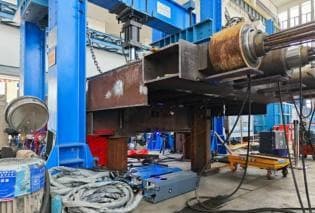

- U-rib intelligent internal welding machine.

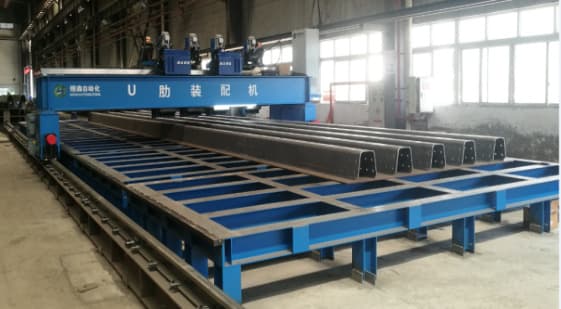

- Integrated U-rib assembly-and-welding system.
- Synchronous internal and external welding system.
- U-rib external welding machine.

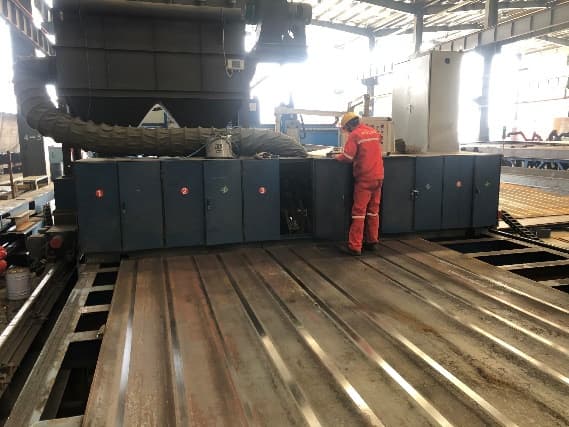

- Automatic deck-plate grinding and cleaning equipment.

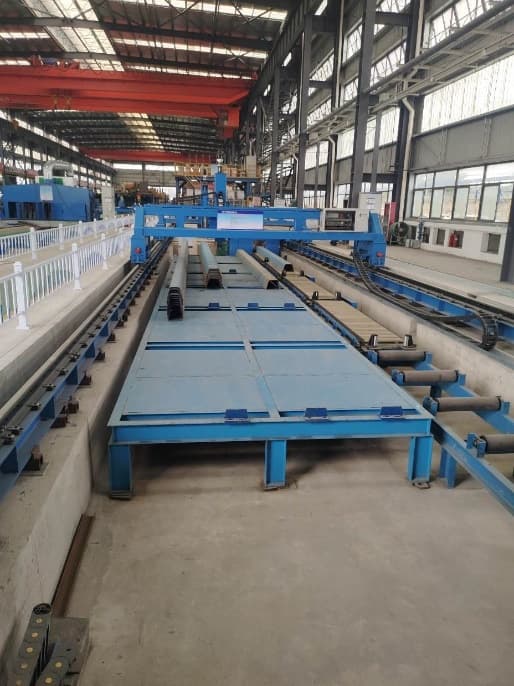

- U-rib cleaning and assembly equipment.

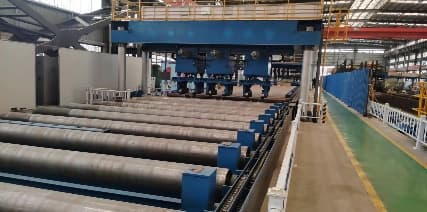

- Plate-unit straightening machine.

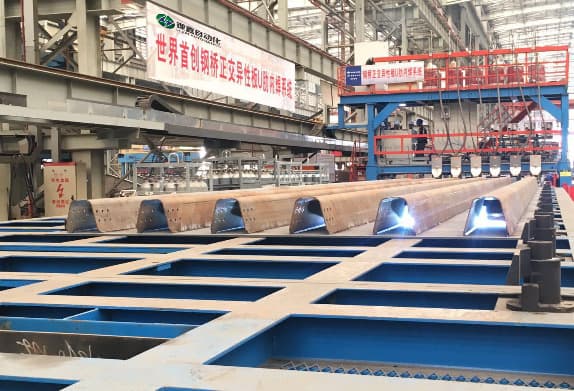

- Diaphragm and connecting-plate welding robot.
- U-rib laser cleaning and grinding robot.
- U-rib access-opening and restoration robot.
- Ultrasonic weld inspection robot.
- Overhead internal-welding robot.
Manufacturing Capacity
Lixin’s Wuhan Shuangliu intelligent manufacturing base covers approximately 8,000 m² and is located adjacent to Yangtze River port facilities. The facility has an annual manufacturing capacity of approximately 30 sets of intelligent welding equipment, 100,000 tonnes of steel bridge deck panels and 50,000 tonnes of bridge structures.
A multi-location manufacturing network across China supports production-line delivery, steel bridge fabrication and engineering service requirements.
Welding & Quality Control
U-rib welding systems can integrate remote wire feeding, shielding-gas supply, HD video monitoring, weld tracking, energy transmission and fume collection. Depending on project requirements, internal welds can be inspected by magnetic-particle testing, ultrasonic testing and phased-array ultrasonic inspection.
Robotic grinding and supplementary welding equipment enables localized weld defects to be repaired inside the U-rib, integrating welding, inspection and repair into the production process.
Application Experience
Lixin’s intelligent welding equipment and automated production systems are used by bridge, steel-structure and heavy-industry manufacturers for orthotropic steel deck and steel bridge fabrication.
Representative cooperation customers include China Railway Baoji Bridge Group, Wuhan Bridge Heavy Industries Group, China Railway Construction Corporation-related enterprises, China State Shipbuilding Corporation-related enterprises and other major steel bridge manufacturers.
The equipment and associated U-rib welding technologies have supported orthotropic steel deck fabrication for more than 200 bridge projects.
技术说明与应用案例
主要装备
- U肋智能内焊专机。
- U肋组焊一体设备。
- U肋内外同步焊系统。
- U肋外焊专机。
- 面板自动打磨及清洗设备。
- U肋清洗及组装设备。
- 板单元机械矫正设备。
- 横隔板及连接板焊接机器人。
- U肋激光清洗及修磨机器人。
- U肋开孔及恢复机器人。
- 焊缝超声检测机器人。
- U肋仰位内焊机器人。
制造保障
武汉双柳钢桥智能智造基地建筑面积约8000平方米，并配套长江港口岸线。基地具备年产约30台（套）智能焊接设备、10万吨钢桥板单元及5万吨桥梁结构的制造能力。
公司在国内建立多点制造网络，可为成套生产线交付、钢桥制造及工程服务提供生产保障。
焊接及质量控制
U肋焊接系统可集成远距离送丝、保护气体输送、高清视频监控、焊缝跟踪、能源输送及烟尘回收等功能。根据项目要求，可采用磁粉、超声及相控阵超声等方式对内焊缝进行检测。
对于局部焊接缺陷，可通过机器人修磨和补焊设备进入U肋内部实施返修，实现焊接、检测和返修一体化质量控制。
应用情况
锂鑫科技智能焊接装备及自动化生产系统已应用于桥梁、钢结构及重工制造企业的正交异性钢桥面板和钢桥结构生产。
代表性合作客户包括中铁宝桥集团、武桥重工集团、中国铁建相关企业、中国船舶集团相关企业等大型桥梁及钢结构制造单位。
相关智能制造装备及U肋焊接技术已为200多座桥梁工程的正交异性钢桥面板制造提供装备和技术支持。
