Product Offering

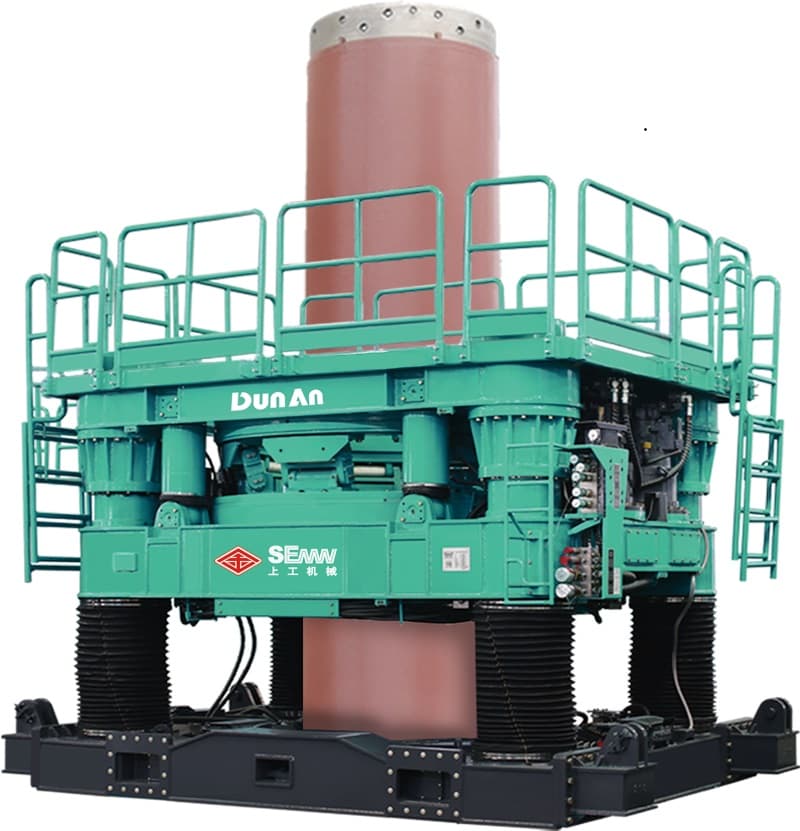

CRD Series Casing Rotator
CRD系列全回转式全套管钻机
A full-rotation full-casing drilling rig for bored piles, replacement piles, diaphragm wall works, underground obstacle removal and high-precision steel column insertion in complex geological and urban conditions.
用于灌注桩、置换桩、地下连续墙、地下障碍物清除及高精度钢立柱插入施工的全回转式全套管钻机，适用于复杂地质及城市环境。
Supplied by Shanghai Engineering Machinery Co., Ltd. （SEMW）
Overview
Product overview
The CRD Series Casing Rotator is a full-rotation full-casing drilling rig integrating hydraulic power, hydraulic transmission and electro-hydraulic control. It drives the casing through 360-degree rotary drilling and uses the casing to protect the borehole wall during foundation construction.
The equipment is suitable for cast-in-place piles, replacement piles, diaphragm walls, removal of old piles and underground obstacles, and high-precision steel column insertion. It can be applied in complex ground conditions such as boulder strata, karst strata, thick quicksand layers, high backfill strata and swampy ground, as well as special environments near existing buildings, metro lines and high-speed railways.
CRD系列全回转式全套管钻机是集全液压动力与传动、机电液联合控制于一体的全套管钻进设备，通过回转机构驱动套管进行360度回转钻进，并利用套管进行孔壁保护。
该设备适用于灌注桩、置换桩、地下连续墙、旧桩及地下障碍物清除、高精度无偏差钢立柱插入等施工场景，可用于卵漂石地层、岩溶地层、厚流砂地层、高回填地层、沼泽地等复杂地质条件，以及既有建筑物、地铁、高铁附近等特殊施工环境。
Applications
Typical applications

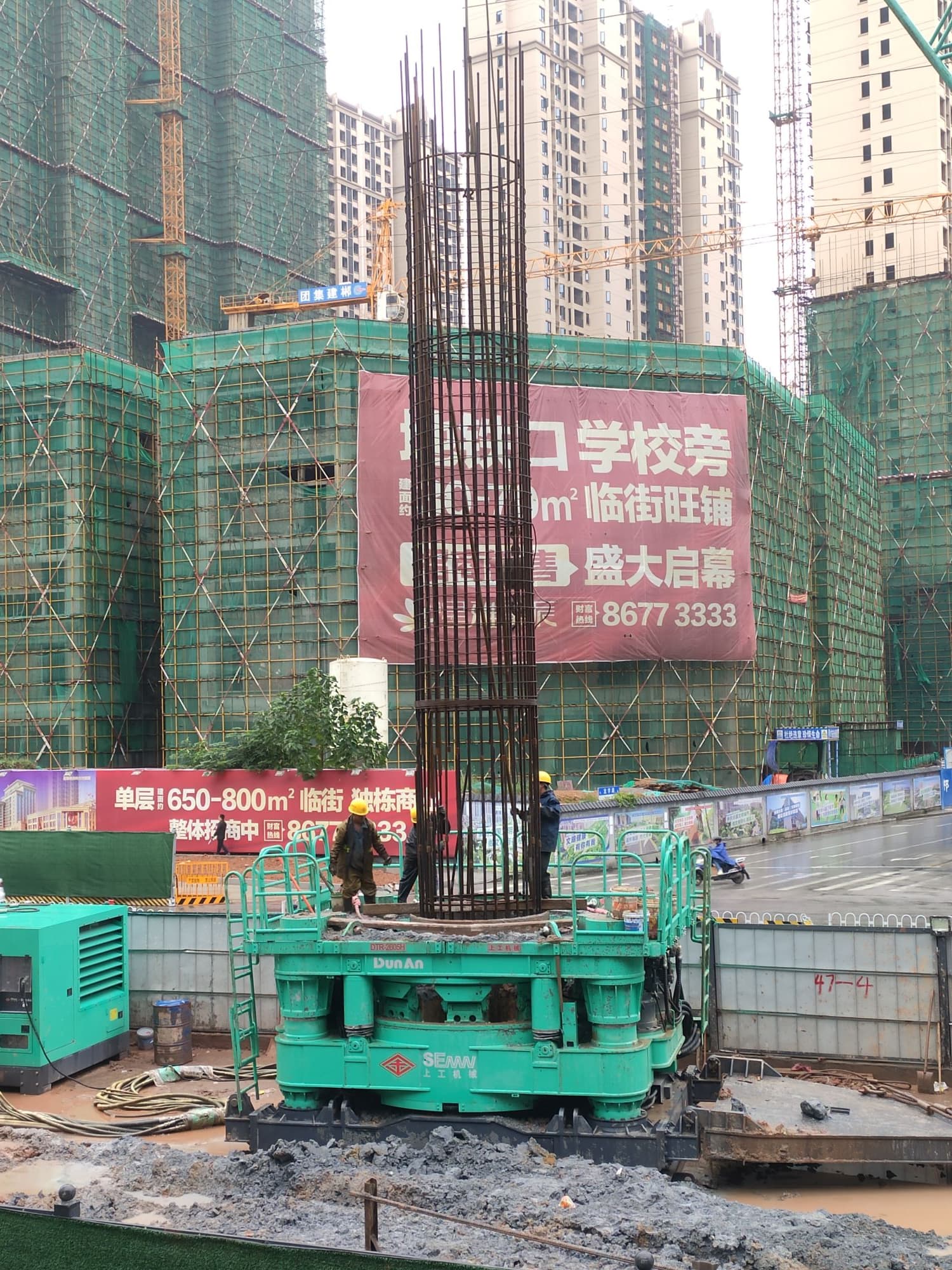

- Cast-in-place pile construction
- Replacement pile construction
- Diaphragm wall construction
- Old pile and underground obstacle removal
- Steel column insertion with high vertical accuracy
- Foundation works near buildings, metro lines and high-speed railways
- 灌注桩施工
- 置换桩施工
- 地下连续墙施工
- 旧桩及地下障碍物清除
- 高精度钢立柱插入施工
- 既有建筑、地铁及高铁附近基础施工
Features
Key product features
- 360-degree full-rotation casing drilling
- Hydraulic power and electro-hydraulic control
- High borehole vertical accuracy
- Wall protection through full casing
- No slurry pollution under suitable operating conditions
- Applicable to complex geology and constrained urban environments
- 360度全回转套管钻进
- 全液压动力及机电液控制
- 成孔垂直精度高
- 通过套管实现护壁
- 适宜工况下可减少泥浆污染
- 适用于复杂地质及受限城市环境
Technical Information
Technical parameters
- The equipment has been applied in urban metro projects, deep excavation enclosure interlocking piles, abandoned pile and underground obstacle removal, high-speed railway works, road and bridge foundations, urban construction pile works and reservoir or dam reinforcement projects.
技术参数
- 该设备已广泛应用于城市地铁、深基坑围护咬合桩、废桩及地下障碍清理、高铁、道路桥梁、城市建设桩基以及水库大坝加固等工程场景。
