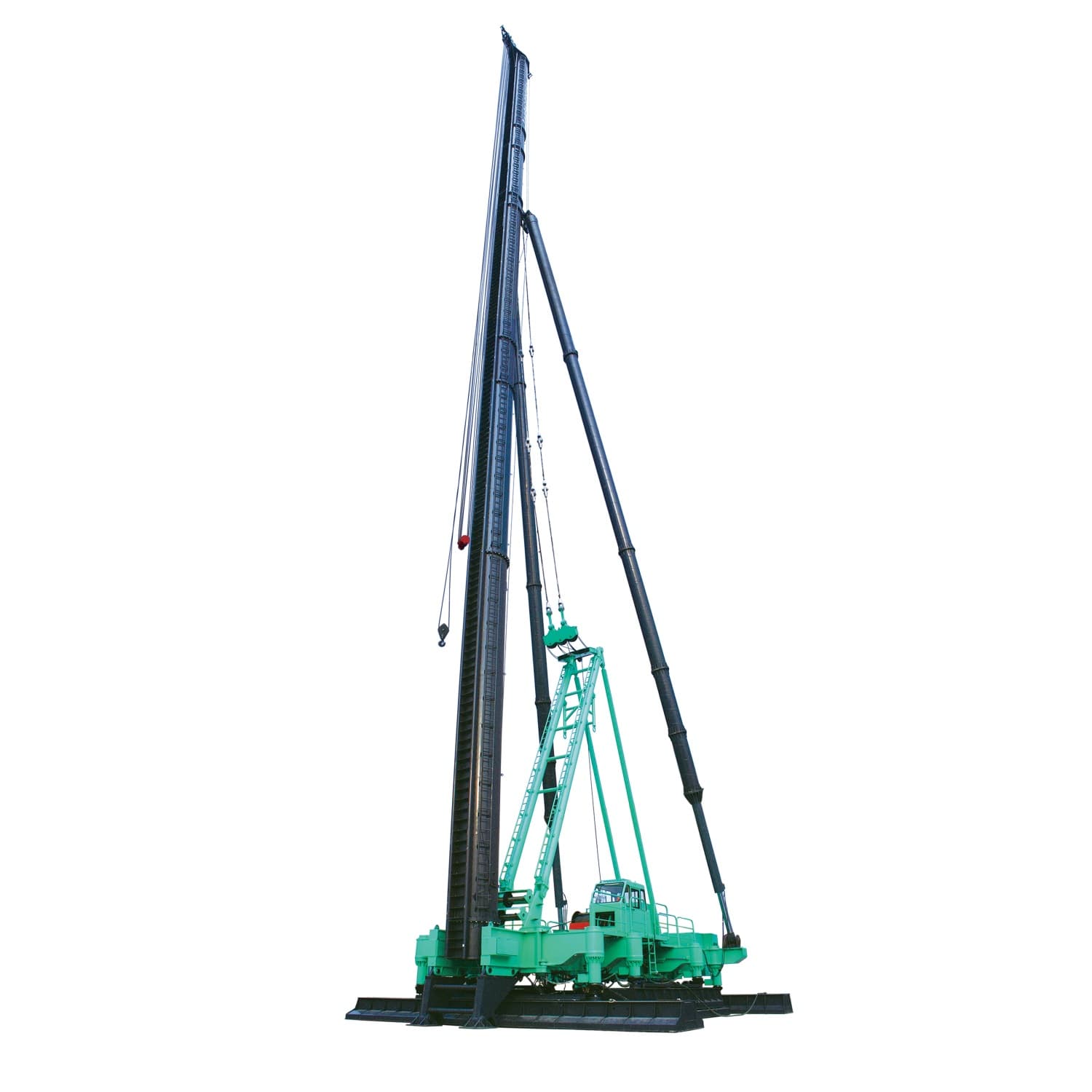

JB Series Hydraulic Walking Piling Rigs
JB系列全液压步履式打桩架
A hydraulic walking piling rig with integrated mechanical, electrical and hydraulic systems, suitable for SMW method works, pile foundation construction and the mounting of various foundation construction attachments.
集机、电、液一体化的全液压步履式打桩架，适用于SMW工法、桩基础施工及多类基础施工设备挂载作业。
Supplied by Shanghai Engineering Machinery Co., Ltd. （SEMW）
Overview
Service overview
The JB Series Hydraulic Walking Piling Rig is independently developed by SEMW with integrated mechanical, electrical and hydraulic systems. The equipment is designed for various pile foundation construction requirements and is particularly suitable for underground continuous wall construction using the SMW method.
The rig can be equipped with diesel pile hammers, pre-bored pre-cast piling equipment and other foundation construction attachments. It is suitable for elevated roads, expressways, bridges, ports, docks, metro stations and high-rise building foundation works.
JB系列全液压步履式打桩架由上工机械自主研发，集机械、电气、液压系统于一体，适用于多种桩基础施工需求，尤其适合深基础施工中广泛采用的SMW工法地下连续墙施工。
该设备可悬挂柴油打桩锤、静钻根植工法钻机等多种基础施工设备，可用于高架道路、高速公路、桥梁、港口、码头、地铁车站和高层建筑等工程的桩基础施工。
Scope
Service scope
Key components that may be provided for relevant engineering scenarios.
- Integrated mechanical, electrical and hydraulic design
- Hydraulic walking piling rig configuration
- Suitable for multiple pile foundation conditions
- Can mount diesel pile hammers and pre-bored pre-cast piling equipment
- High stability for deep foundation works
- Independently developed equipment system
- 机、电、液一体化设计
- 全液压步履式打桩架配置
- 适用于多种桩基施工条件
- 可挂载柴油打桩锤及静钻根植工法钻机等设备
- 深基础施工稳定性好
- 自主研发装备体系
Scenarios
Applicable project scenarios
Typical project conditions where this offering may be relevant.
- SMW method construction
- Underground continuous wall works
- Pile foundation construction
- Elevated road and expressway foundations
- Bridge, port and dock foundations
- Metro station and high-rise building foundations
- SMW工法施工
- 地下连续墙施工
- 桩基础工程
- 高架道路及高速公路基础
- 桥梁、港口及码头基础
- 地铁车站及高层建筑基础
Technical Information
Technical parameters
- The JB Series Hydraulic Walking Piling Rig has independent intellectual property rights and received recognition as a Shanghai High and New Technology Achievement Transformation Project in 2009.
技术参数
- JB系列全液压步履式打桩架具有自主知识产权，并获得2009年度上海市高新技术成果转化项目荣誉证书。
