Mobile station type TBM automatic guidance system
Product Offering
Mobile Station Type TBM Automatic Guidance System
TBM自动导向系统移动站型
Mobile station type TBM guidance system using an automatic total station with automatic leveling base, rear resection prisms, and laser target attitude measurement
移动站型TBM导向系统，采用自动全站仪、自动安平基座、后方交会棱镜和激光靶进行实时导向测量
Supplied by Raising Measurement (Shanghai) Co., Ltd.
Overview
Product overview

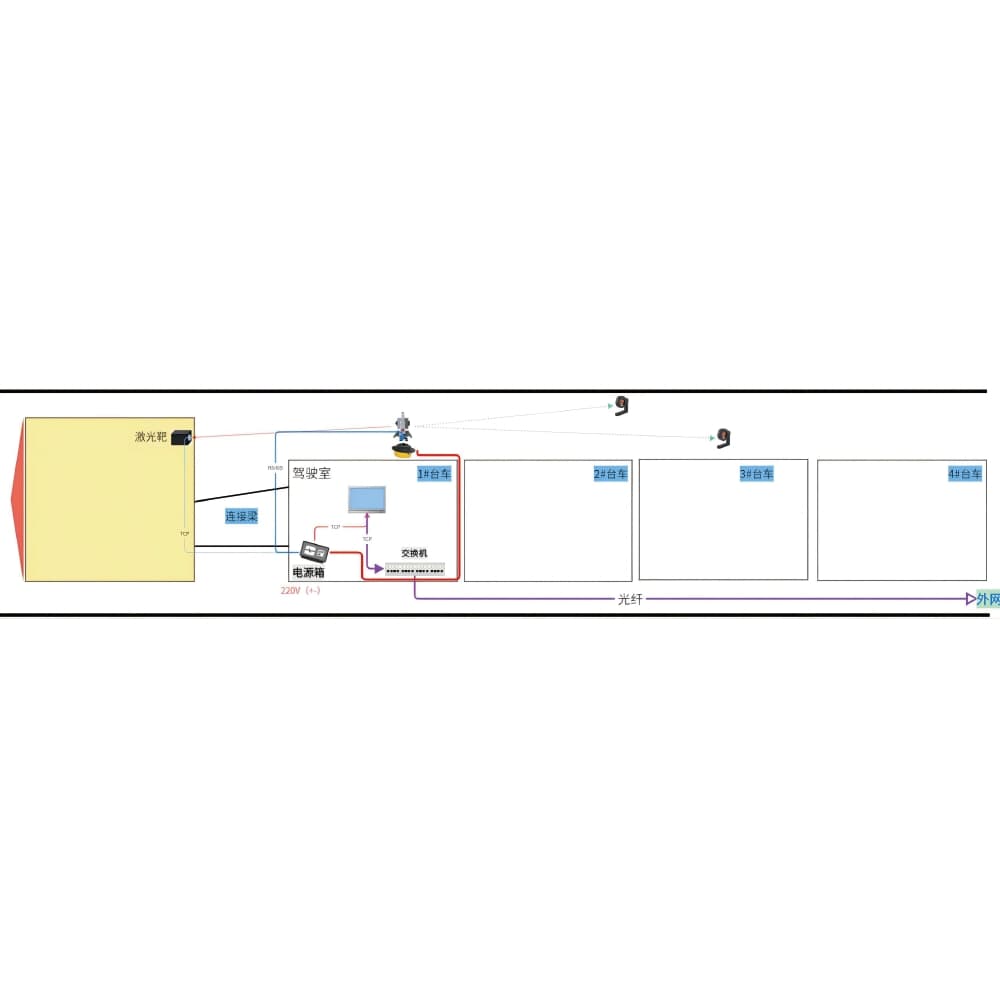

The Mobile Station Type TBM Automatic Guidance System uses an automatic total station equipped with an automatic leveling base. During tunneling, it measures rear resection prisms to obtain the current total station coordinates, then measures the laser target to obtain shield machine attitude information. The system calculates horizontal and vertical deviations, driving chainage, and horizontal and vertical trends in real time, and presents navigation information through graphical and numerical views.
TBM自动导向系统移动站型采用配备自动安平基座的自动全站仪。设备推进过程中，系统实时测量后方交会棱镜，通过后方交会获取当前全站仪坐标，再测量激光靶获取盾构机姿态信息。系统可实时计算水平偏差、垂直偏差、掘进里程、水平趋向和垂直趋向，并以图形和数字结合的方式显示导航信息。
Applications
Typical applications
- Shield tunneling
- TBM tunneling
- Mobile station guidance measurement
- Tunnel alignment control
- Tunneling where station relocation is required
- Underground construction navigation
- 盾构施工
- TBM施工
- 移动站导向测量
- 隧道轴线控制
- 需要测站移动的掘进施工
- 地下施工导航
Features
Key product features
- Automatic total station with automatic leveling base
- Rear resection prism measurement
- Current total station coordinate calculation by resection
- Laser target attitude measurement
- Real-time deviation and trend calculation
- Graphical and numerical navigation display
- Support for designed alignment control
- 自动全站仪配备自动安平基座
- 后方交会棱镜测量
- 通过后方交会获取当前测站坐标
- 激光靶姿态测量
- 实时计算偏差和趋向
- 图形与数字导航显示
- 支持设计轴线控制
Technical Information
Technical parameters
Technical approach
- Measurement components: Automatic total station, automatic leveling base, rear resection prisms, laser target.
- Positioning method: Resection-based total station coordinate calculation.
- Calculated values: Horizontal deviation, vertical deviation, driving chainage, horizontal trend, vertical trend.
技术参数
技术实施要点
- 测量组件：自动全站仪、自动安平基座、后方交会棱镜、激光靶。
- 定位方式：后方交会获取全站仪坐标。
- 计算内容：水平偏差、垂直偏差、掘进里程、水平趋向、垂直趋向。
