TBM Automatic Guidance System

TBM自动导向系统

Automatic guidance system for shield and TBM tunneling, providing real-time deviation, chainage, trend, and graphical navigation information

面向盾构和TBM掘进的自动导向系统，可实时提供偏差、里程、趋向和图形化导航信息

Supplied by Raising Measurement (Shanghai) Co., Ltd.

View Supplier Profile

Overview

Product overview

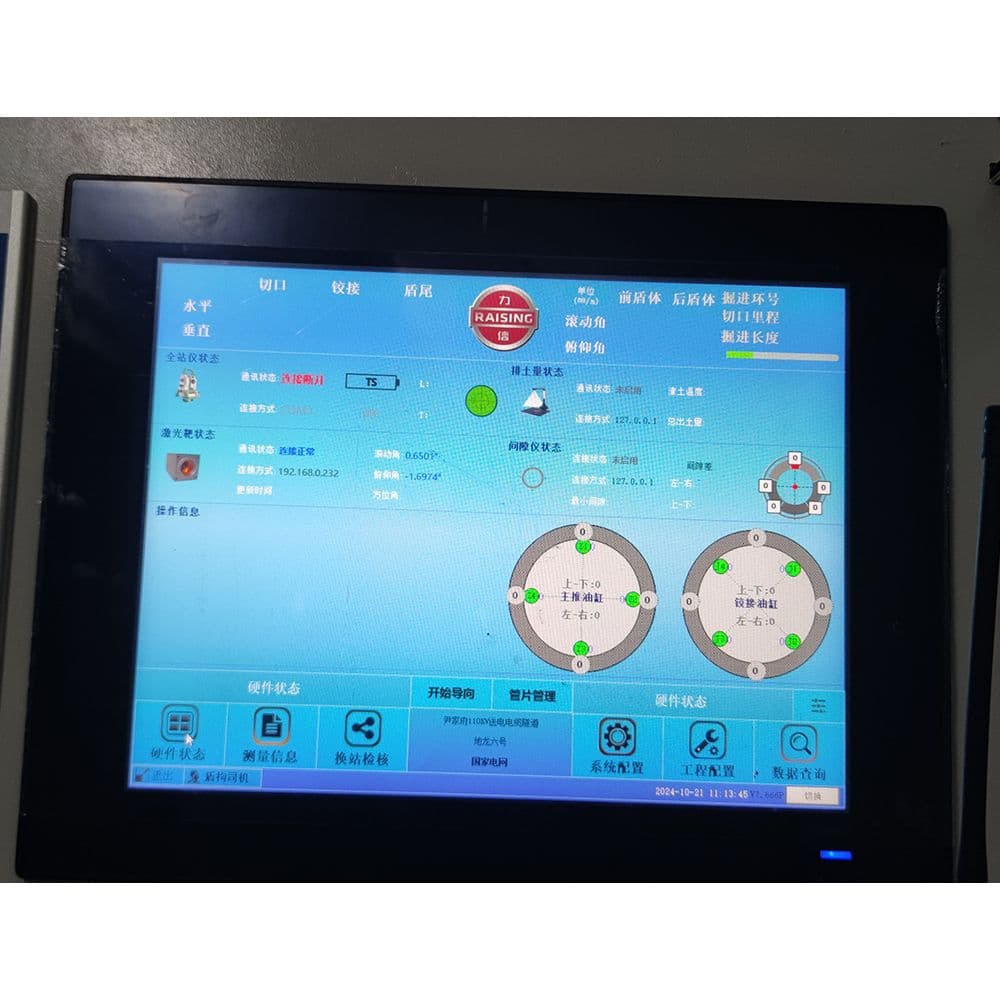

The TBM Automatic Guidance System uses an automatic total station and a laser target solution to measure shield machine position and attitude during tunneling. It calculates horizontal and vertical deviations, driving chainage, and horizontal and vertical trends in real time, and displays navigation information through combined graphical and numerical views to help operators control the machine along the designed alignment.

TBM自动导向系统采用自动全站仪和激光靶方案，用于盾构掘进过程中的位姿测量。系统可实时计算盾构机水平偏差、垂直偏差、掘进里程、水平趋向和垂直趋向，并以图形和数字结合的方式显示导航信息，辅助掘进司机控制设备沿设计轴线推进。

Applications

Typical applications

Shield tunneling
TBM tunneling
Metro tunnel construction
Utility tunnel construction
Power transmission tunnel construction
Tunnel alignment control

盾构施工
TBM施工
地铁隧道施工
综合管廊施工
输变电隧道施工
隧道轴线控制

Features

Key product features

Automatic total station measurement
Laser target-based attitude measurement
Real-time horizontal and vertical deviation calculation
Driving chainage calculation
Horizontal and vertical trend display
Graphical and numerical navigation interface
Operator guidance for designed alignment control

自动全站仪测量
激光靶位姿测量
实时计算水平和垂直偏差
掘进里程计算
水平和垂直趋向显示
图形与数字结合的导航界面
辅助司机控制设备沿设计轴线掘进

Technical Information

Technical parameters

Technical approach

Measurement components: Automatic total station and laser target.
Calculated values: Horizontal deviation, vertical deviation, driving chainage, horizontal trend, vertical trend.
Display mode: Graphical and numerical navigation information.
