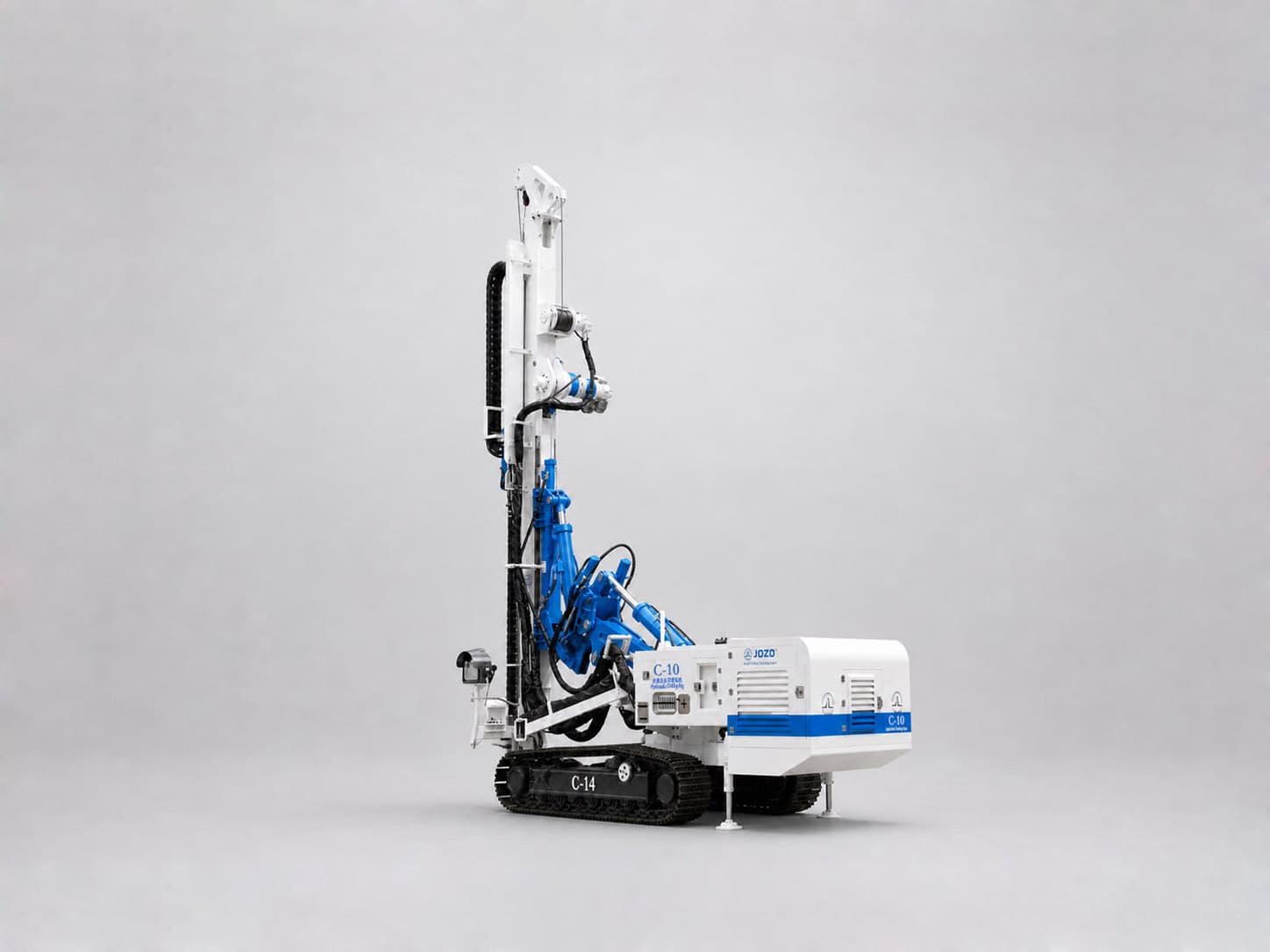

JOZO C-10 multipurpose drilling rig for anchoring, grouting, and ground-improvement works
Product Offering
Drilling & Ground Improvement Rigs
钻进与地基改良钻机
Full-hydraulic and purpose-built rigs for anchoring, grouting, jet grouting, ground improvement, and restricted-space operation, with multiple power-head, carrier, and drilling-direction configurations.
全液压及专用钻机系列可用于锚固、注浆、高压旋喷、地基改良和受限空间作业，并支持多动力头、不同底盘和多方向施工配置。
Supplied by Shanghai JOZO Machine & Electric Equipment Co., Ltd.
Overview
Product overview
JOZO's rig portfolio includes C-series multipurpose rigs, DJE-series jet-grouting and multi-directional rigs, and purpose-built models for heavy-duty drilling or restricted-space operation. C-10, C-14, and C-28 are the principal C-series models for multipurpose drilling, ground improvement, and ultra-deep jet grouting, respectively. C-6, C-22, and C-40 cover anchoring, casing drilling, and heavy-duty multipurpose work. The DJE series supports jet grouting in vertical, horizontal, and other working directions. J-49 and BR-3000 address heavy-duty drilling and confined-space operation, while DJE-060, DJE130, DJE130-V/CP, and DJE200K provide additional jet-grouting and multi-directional configurations.
Selection is based on working space and access, drilling depth, bore diameter, torque, feed stroke, installation angle, mobility, power availability, and the intended construction method. Rigs can be integrated with high-pressure pumps, slurry systems, specialized tooling, and the CMS 3.0 (Construction Management System 3.0) platform to form a complete operating system.
久卓钻机产品包括C系列多功能钻机、DJE系列高压旋喷与多方向钻机，以及用于重型钻进或受限空间作业的专用机型。C-10、C-14和C-28为C系列重点型号，分别用于多功能钻进、地基改良及超深旋喷作业；C-6、C-22和C-40覆盖锚固、跟管钻进及重型多功能施工。DJE系列适用于高压旋喷及垂直、水平等多方向施工；J-49与BR-3000分别用于重型钻进和狭窄空间作业。其他代表型号包括DJE-060、DJE130、DJE130-V/CP和DJE200K等。
选型主要依据作业空间、钻进深度、孔径、扭矩、给进行程、施工角度、行走方式、动力条件及施工工法。钻机可与高压泵、制浆系统、专用钻具和CMS 3.0施工管理系统（Construction Management System 3.0）组成完整作业系统。
Applications
Typical applications
- Anchoring, casing drilling, and excavation support
- Jet grouting and combined jetting-and-mixing ground improvement
- Tunnel, basement, and low-headroom work
- Horizontal, inclined, and multi-angle drilling
- Bridge, dam, port, and mining works
- Emergency seepage control, coring, and trenchless reinforcement
- 锚固、跟管与基坑支护钻进
- 高压旋喷和喷搅地基改良
- 隧道、地下室与低净空作业
- 水平、倾斜和多角度钻进
- 桥梁、堤坝、港口与矿山施工
- 抢险止水、取芯与非开挖加固
Features
Key product features
- C-series multipurpose rigs: C-10, C-14, and C-28 are the principal models for multipurpose drilling, ground improvement, and ultra-deep jet grouting. C-6, C-22, and C-40 complement the range for anchoring, casing drilling, coring, grouting, jet grouting, and heavy-duty multipurpose work
- DJE-series purpose-built rigs: representative models include DJE-060, DJE130, DJE130-V/CP, and DJE200K for jet grouting, multi-directional operation, and project-specific ground improvement
- Heavy-duty and special-purpose rigs: models such as J-49 and BR-3000 address heavy drilling or specific project conditions through selected power heads, clamping systems, and carriers
- Compact and low-headroom configurations: smaller rigs can work in basements, tunnels, beneath bridges, and indoor areas with restricted access, transport routes, or headroom
- C系列多功能钻机：重点型号为C-10、C-14和C-28，分别对应多功能钻进、地基改良和超深旋喷施工
- C-6、C-22和C-40作为补充型号，覆盖锚固、跟管、取芯、注浆、旋喷及重型多功能作业
- DJE系列专用钻机：包括DJE-060、DJE130、DJE130-V/CP和DJE200K等代表型号，适用于高压旋喷、多方向钻进和地基改良施工
- 重型及专用机型：J-49、BR-3000等机型用于重型钻进或特定工程条件，可与专用动力头、夹持装置和底盘组合
- 紧凑型与低净空配置：小型钻机可用于地下室、隧道、桥下和室内等净空、转运和进场通道受限位置
Offering Details
Technical Details & Applications
Representative Models & Key Parameters
Models are grouped by product family, with equipment function and key parameters stated under each model. Values support preliminary selection; power heads, masts, clamping systems, carriers, and working directions can be configured for project conditions, with final supply parameters defined in the project technical agreement.
C-Series Multipurpose Rigs
C-6 | Anchor Jet-Grouting Rig Key parameters: Drilling diameter φ50–φ219 mm; drilling depth 0–60 m; rated output torque 6/3 kN·m; feed stroke 3,400 mm; operating weight approx. 6 t.

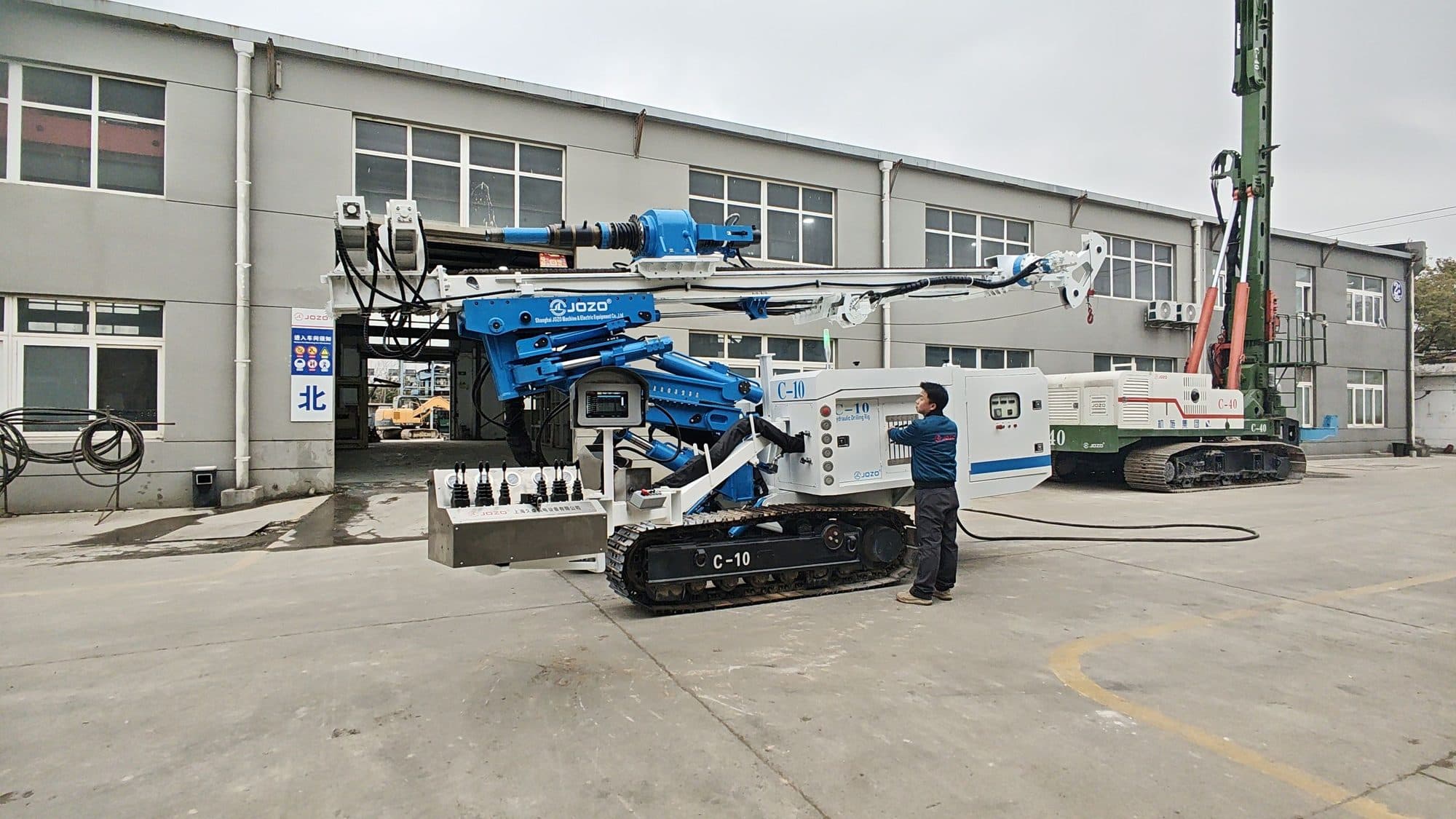

C-10 | Full-Hydraulic Multipurpose Rig (Featured Model) Key parameters: Maximum drilling depth 60 m; tooling diameter φ50–φ219 mm; feed stroke 3,800 mm; maximum hoist/feed force 98/98 kN or 126/126 kN; operating weight approx. 10 t.

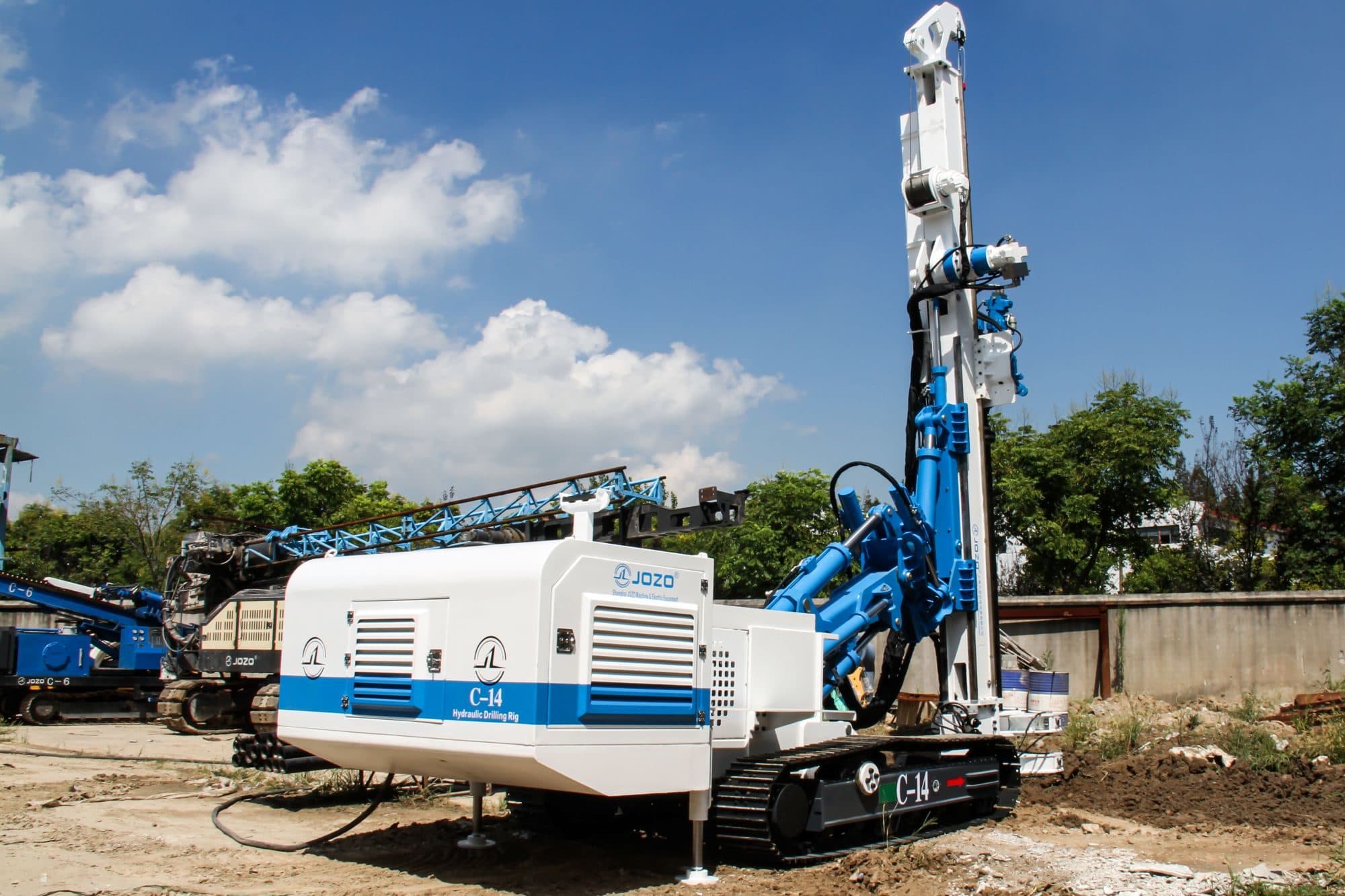

C-14 | Full-Hydraulic Ground-Improvement Rig (Featured Model) Key parameters: Rated diesel power 119 kW; feed stroke 4,300 mm; maximum pull/feed force 99/99 kN; maximum clamping force 268 kN.
C-22 | Multipurpose Drilling Rig Key parameters: Single-pass treatment depth 27 m; maximum drill-rod diameter 127 mm, optional 140 mm; maximum torque 1,200 daN·m (12 kN·m); maximum speed 224 rpm; operating weight approx. 27.2 t.

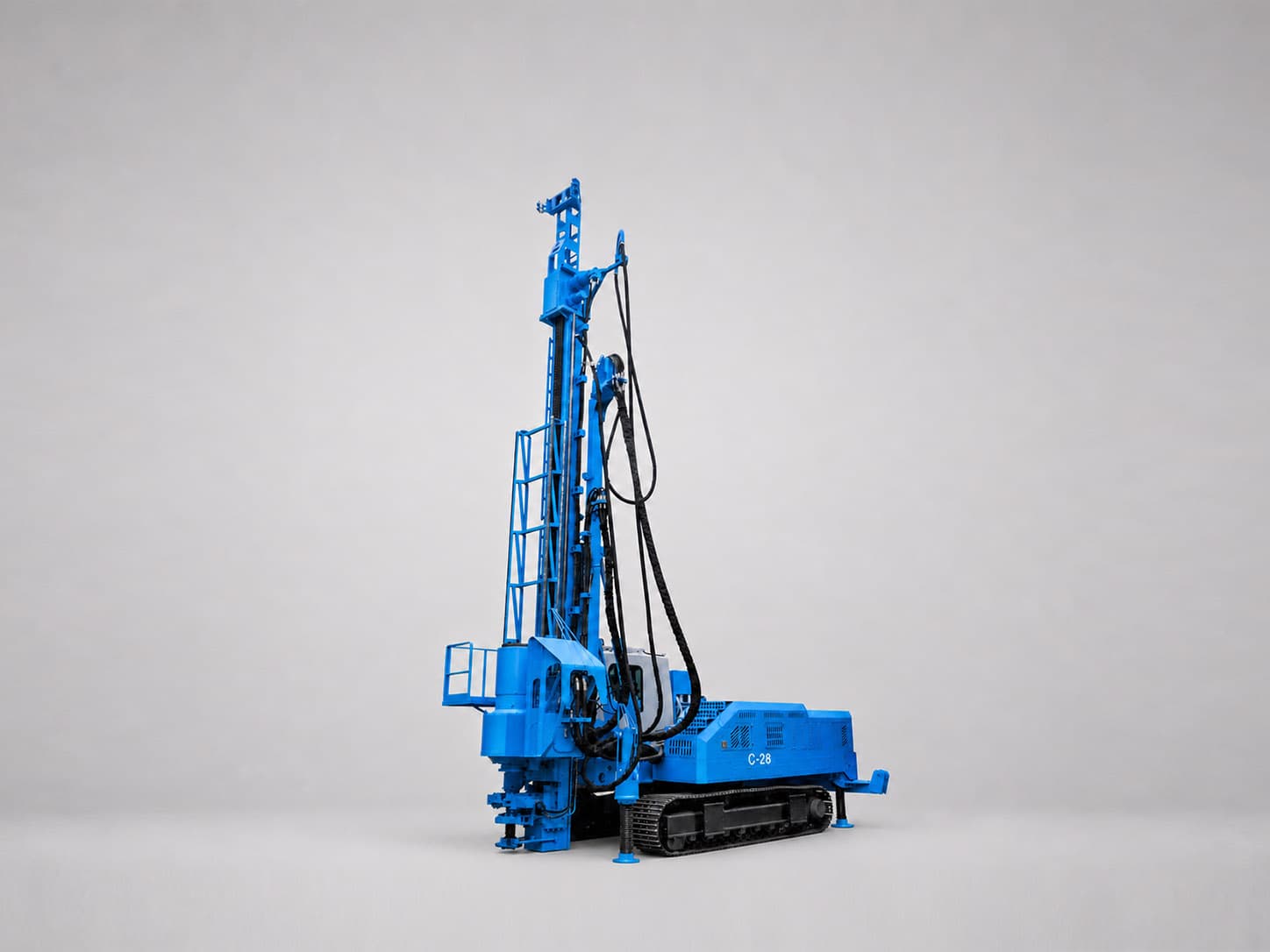

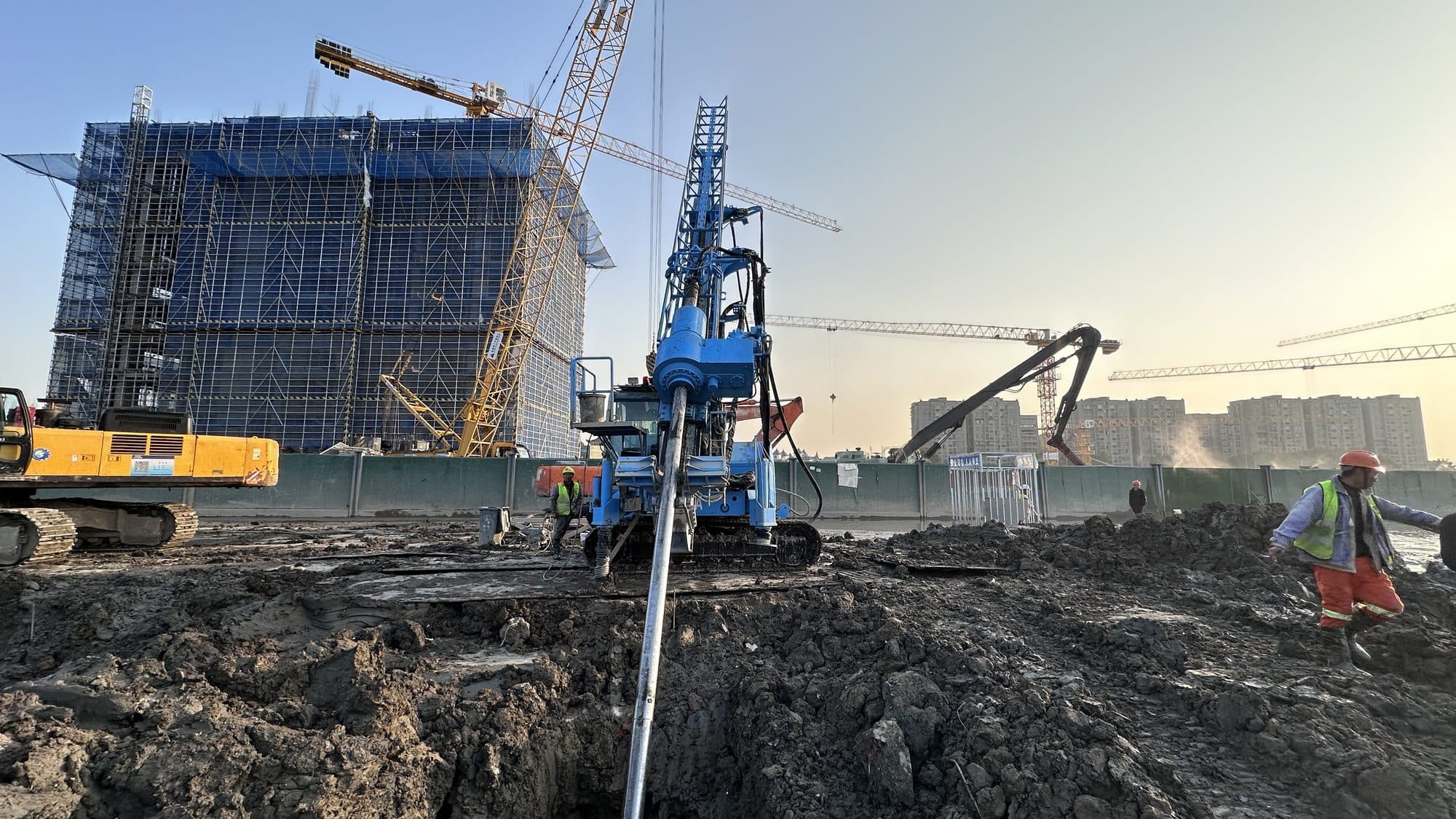

C-28 | Ultra-Deep Jet-Grouting Rig (Featured Model) Key parameters: Spindle torque 22–72 kN·m; feed stroke 5,000–5,500 mm; maximum pull/down force 135 kN; maximum improvement diameter φ1,600 mm; rig weight approx. 28 t.
C-40 | Heavy-Duty Full-Hydraulic Multipurpose Rig Key parameters: Power-head maximum output torque options 63/46/25 kN·m; output speed 0–50 rpm; maximum lifting force 180 kN; maximum feed force 250 kN; stroke 4,000 mm.
DJE-Series Jet-Grouting & Multi-Directional Rigs
DJE-060 | Multi-Directional Jet-Grouting Rig Key parameters: Spindle bore 146 mm; maximum output torque 6.7 kN·m; lifting force 170 kN; feed force 117.5 kN; stroke 500 mm; operating weight approx. 4.1 t.

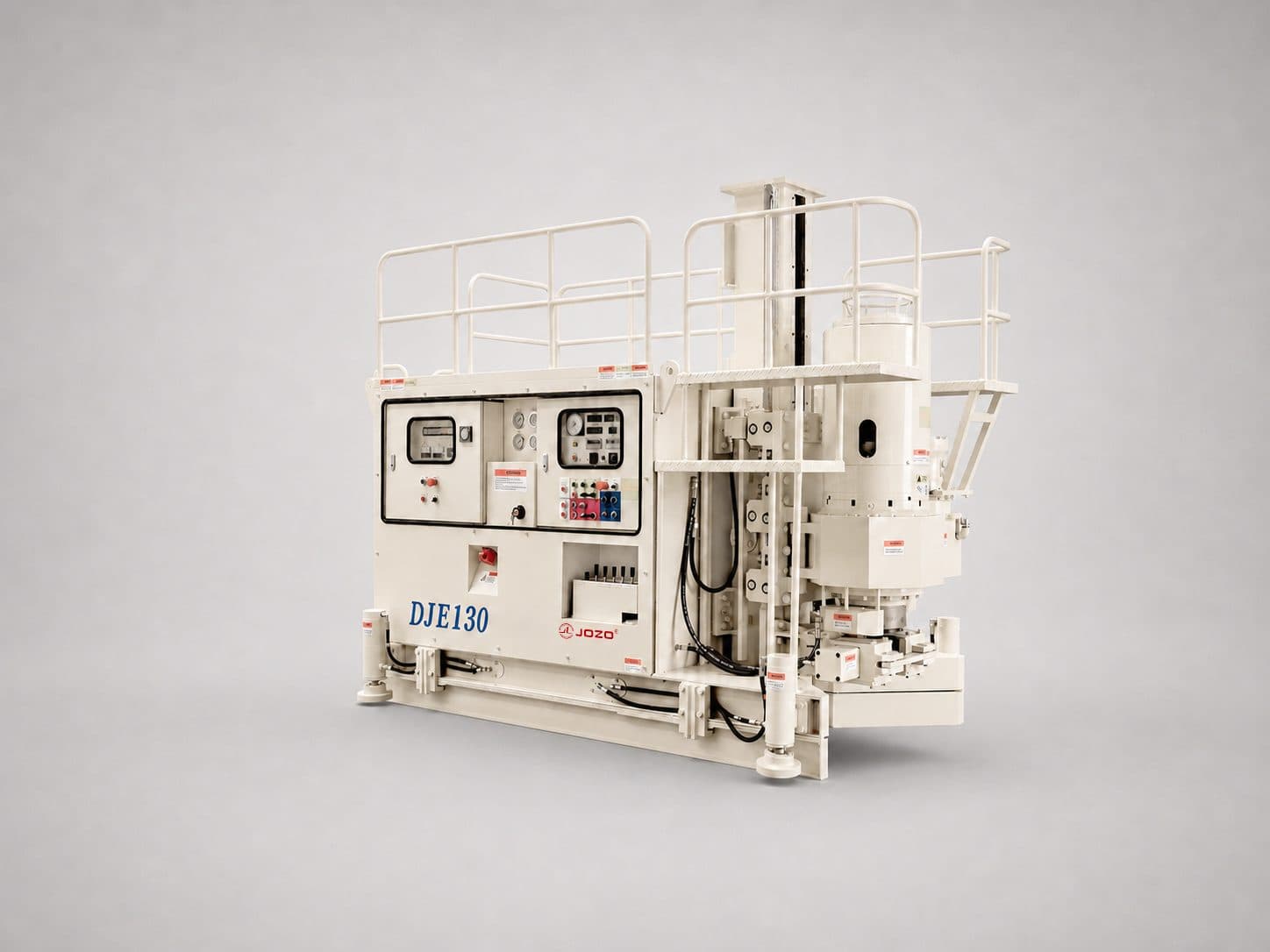

DJE130 | Omnidirectional Jet-Grouting Rig Key parameters: Spindle bore 220 mm; maximum output torque 13 kN·m; output speed 0–24.8 rpm; lifting force 185 kN; feed force 124 kN; maximum working depth 60 m.
DJE130-V/CP | Crawler Jet-Grouting Rig Key parameters: Spindle bore 220 mm; maximum output torque 13 kN·m; lifting force 185 kN; feed force 124 kN; travel speed 1 km/h; 3 t lifting boom.
DJE200K | Crawler Jet-Grouting Rig Key parameters: GR-65/130/200 power-head options; output torque 10/13/20 kN·m; lifting force 210 kN; feed force 145 kN; stroke 1,000 mm; operating weight approx. 14 t.
Heavy-Duty & Compact Special-Purpose Rigs
J-49 | Heavy-Duty Hydraulic Drilling Rig Key parameters: Mast length 18,190 mm; feed stroke 14,500 mm; maximum power-head torque approx. 116.7 kN·m (11,900 kgf·m); lifting force approx. 588 kN (60,000 kgf); operating weight approx. 49 t.
BR-3000 | Crawler Micro Drilling Rig Key parameters: Maximum drilling depth 30 m; overall width 940–1,390 mm; feed force 52.5 kN; pullback force 70 kN; motor power 55 kW.
Equipment Selection & Integration Requirements
- Working space and access: base-model selection considers machine dimensions, mast orientation, working height, swing range, access route, and drilling direction.
- Drilling capacity: depth, bore diameter, torque, speed, feed stroke, lifting speed, and rod-handling method are matched to the power head and mast system.
- Mobility and power: walking, crawler, or purpose-built carriers can be selected according to site electricity, hydraulic systems, and diesel-power requirements.
- Supporting equipment: the rig is matched with tooling channels, high-pressure pump capacity, slurry supply, return-flow equipment, and CMS monitoring systems.
- Maintenance conditions: selection also addresses wear parts, rod handling, equipment cleaning, maintenance access, spare-parts supply, and field servicing.
技术说明与应用案例
代表型号与关键参数
以下型号按产品系列列出设备用途与关键参数。参数用于初步选型；动力头、桅杆、夹持器、底盘和施工方向可按项目条件配置，最终供货参数以项目技术协议为准。
C系列多功能钻机
C-6 | 锚杆旋喷钻机 关键参数：钻孔直径 φ50–φ219 mm；钻孔深度 0–60 m；额定输出扭矩 6/3 kN·m；给进行程 3,400 mm；整机重量约 6 t。
C-10 | 全液压多功能钻机（重点型号） 关键参数：最大钻进深度 60 m；钻具直径 φ50–φ219 mm；给进行程 3,800 mm；最大提升/给进力 98/98 kN 或 126/126 kN；整机重量约 10 t。
C-14 | 全液压地基改良钻机（重点型号） 关键参数：柴油机额定功率 119 kW；推进行程 4,300 mm；最大提升拉力/推进力 99/99 kN；最大夹紧力 268 kN。
C-22 | 多功能钻机 关键参数：单次处理深度 27 m；最大钻杆直径 127 mm，可选 140 mm；最大扭矩 1,200 daN·m（12 kN·m）；最大转速 224 rpm；操作重量约 27.2 t。
C-28 | 超深旋喷多功能钻机（重点型号） 关键参数：主轴扭矩 22–72 kN·m；进给行程 5,000–5,500 mm；最大提升/下压力 135 kN；最大改良直径 φ1,600 mm；钻机重量约 28 t。
C-40 | 重型全液压多功能钻机 关键参数：动力头最大输出扭矩可选 63/46/25 kN·m；输出转速 0–50 rpm；最大提升力 180 kN；最大加压力 250 kN；行程 4,000 mm。
DJE系列高压旋喷与多方向钻机
DJE-060 | 多方向高压旋喷钻机 关键参数：主轴孔径 146 mm；最大输出扭矩 6.7 kN·m；提升力 170 kN；加压力 117.5 kN；行程 500 mm；整机重量约 4.1 t。
DJE130 | 全方位高压旋喷钻机 关键参数：主轴孔径 220 mm；最大输出扭矩 13 kN·m；输出转速 0–24.8 rpm；提升力 185 kN；加压力 124 kN；最大使用深度 60 m。
DJE130-V/CP | 履带式高压旋喷钻机 关键参数：主轴孔径 220 mm；最大输出扭矩 13 kN·m；提升力 185 kN；加压力 124 kN；行走速度 1 km/h；配 3 t 起重吊臂。
DJE200K | 履带式高压旋喷钻机 关键参数：GR-65/130/200 动力头可选；输出扭矩 10/13/20 kN·m；提升力 210 kN；加压力 145 kN；行程 1,000 mm；整机重量约 14 t。
重型与紧凑型专用钻机
J-49 | 重型液压钻孔机 关键参数：桅杆长度 18,190 mm；给进行程 14,500 mm；动力头最大扭矩约 116.7 kN·m（11,900 kgf·m）；提升力约 588 kN（60,000 kgf）；整机重量约 49 t。
BR-3000 | 履带式微型钻机 关键参数：最大钻孔深度 30 m；整机宽度 940–1,390 mm；进给力 52.5 kN；回拉力 70 kN；电机功率 55 kW。
设备选型与配套要求
- 作业空间：根据设备外形、桅杆姿态、工作高度、回转范围、进场通道和施工方向确定基础机型。
- 钻进能力：综合孔深、孔径、扭矩、转速、给进行程、提升速度及钻杆拆接方式匹配动力头和桅杆系统。
- 行走方式与动力：可采用步履式、履带式或专用底盘，并根据现场供电、液压系统和柴油动力条件进行配置。
- 配套设备：钻机需与钻具通道、高压泵能力、制浆供浆、排浆设备和CMS监测系统配套。
- 维护条件：选型时同时考虑易损件、钻杆拆装、设备清洗、检修空间、备件供应与现场维护便利性。
