T-601 Shield Tail Seal Grease (Hand-Applied Type)

T-601盾尾密封油脂（手涂型）

T-601 Shield Tail Seal Grease is a hand-applied shield tail sealing grease designed for sealing, waterproofing and lubrication during shield tunneling operations.

T-601盾尾密封油脂是面向盾构施工的手涂型盾尾密封油脂，用于施工过程中的密封、防水和润滑。

Supplied by Baolifu New Materials (Guangzhou) Co., Ltd.

View Supplier Profile

Overview

Product overview

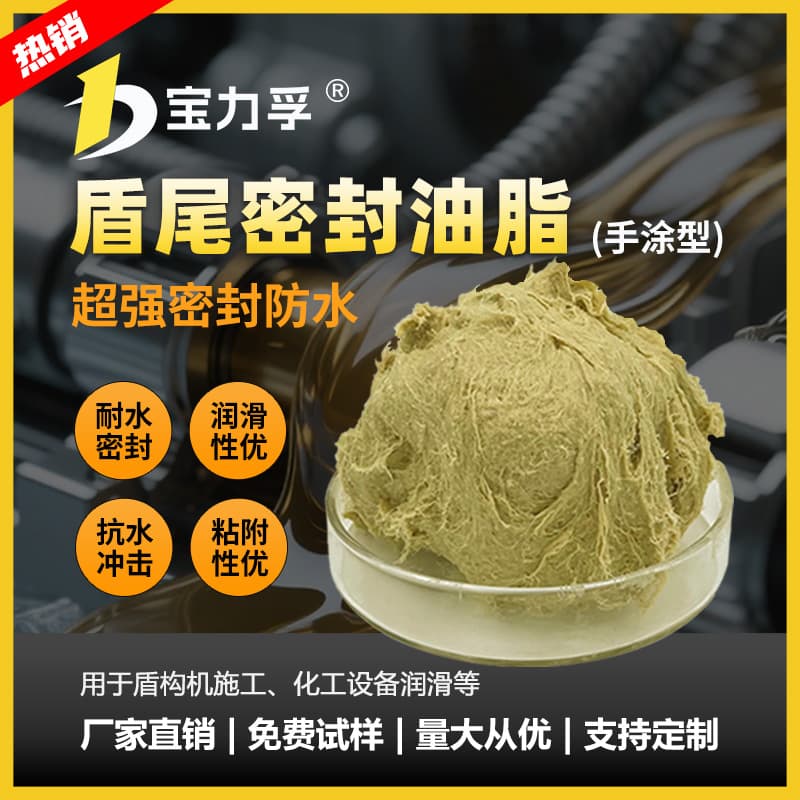

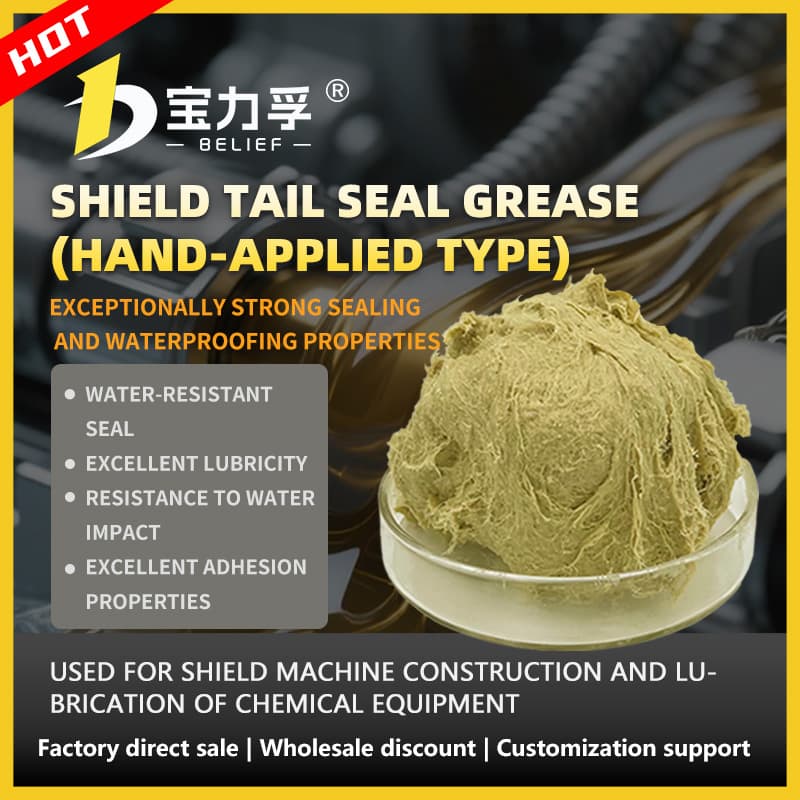

T-601 Shield Tail Seal Grease is a uniform paste made from fibers, thickeners, fillers and sealants through a specialized process. It is designed for hand-applied or brushable shield tail sealing applications.

The product prevents mortar and groundwater outside the shield machine from penetrating into the machine. When segments are pushed out of the shield tail, the grease can be applied on the outer side of the segment to reduce friction between the segment and the shield tail. It is suitable for shield tail sealing applications requiring water resistance, lubrication, water impact resistance and strong adhesion.

T-601盾尾密封油脂由纤维、增稠剂、填料和密封剂等材料经特殊工艺制成，适用于手涂或涂刷型盾尾密封应用。

该产品可防止盾构机外部砂浆和地下水渗入机内；当管片推出盾尾时，可涂覆于管片外侧，以减少管片与盾尾之间的摩擦。该产品适用于对耐水密封、润滑、抗水冲击和粘附性能有要求的盾尾密封场景。

Applications

Typical applications

Hand-applied shield tail sealing
Brushable shield tail grease application
Shield tunnel waterproofing
Segment lubrication
Tail brush sealing support
Mortar and groundwater ingress prevention

手涂型盾尾密封
涂刷型盾尾油脂应用
盾构隧道防水
管片润滑
盾尾刷密封支持
防止砂浆及地下水侵入

Features

Key product features

Hand-applied shield tail seal grease
Excellent water resistance and sealing performance
Good lubricity
Strong water impact resistance
Superior adhesion
Suitable for shield tunneling waterproofing and lubrication

手涂型盾尾密封油脂
优良耐水和密封性能
润滑性能良好
抗水冲击能力强
粘附性能较好
适用于盾构施工防水和润滑

Technical Information

Technical parameters

Product standard:

Complies with Q/KST700-2005 test standard.

Typical data for brushable type:

Appearance: yellow fibrous uniform grease.
Metal corrosion: no corrosion after 30 days on iron plate at room temperature.
Penetration: 170-210, 0.1 mm.
Evaporation loss at 80°C for 5 h: ≤2.5%.
Density at 25°C: 1.3 g/cm³.
Water-resistant sealing at 25°C, 20-mesh screen, 3.5 MPa for 1 h: no water leakage.
Adhesion at 25°C: sliding displacement ≤10 mm in 10 min.

Packaging and storage:

250 kg/barrel; customized packaging available.
Shelf life: 12 months unopened.
Store in a clean, dry and dark place.
Avoid mixing with other greases.

技术参数

产品标准：

符合 Q/KST700-2005 检测标准。

涂刷型典型参数：

外观：黄色纤维状均匀油脂。
金属腐蚀：室温铁片30天无腐蚀。
针入度：170-210，0.1 mm。
80°C、5 h 蒸发损失：≤2.5%。
25°C 密度：1.3 g/cm³。
25°C、20目筛、3.5 MPa、1 h 耐水密封：无漏水。
25°C 粘附性：10 min 滑动位移≤10 mm。

包装与储存：

250 kg/桶；可按需求定制包装。
未开封保质期12个月。
储存于清洁、干燥、避光处。
避免与其他油脂混用。
