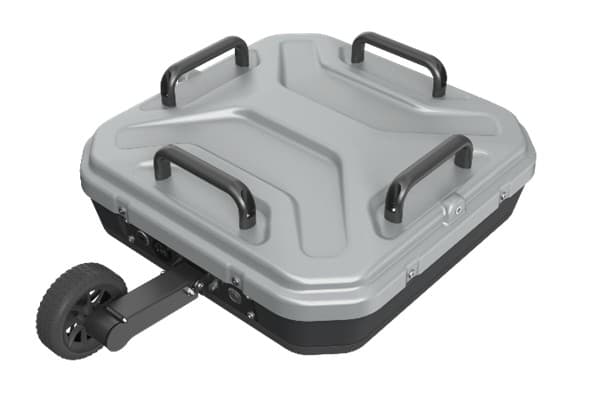

ZS-2060 Wireless Ground-Penetrating Radar
ZS-2060型无线探地雷达
A dual-frequency wireless ground-penetrating radar for municipal road defect detection, underground utility investigation, engineering inspection, and shallow geological investigation.
面向市政道路病害检测、地下管线探测、工程质量检测和浅层地质勘查的双频无线探地雷达设备。
Supplied by Jiangsu Zhusheng Civil Engineering Technology Co., Ltd.
Overview
Product overview
The ZS-2060 Wireless Ground-Penetrating Radar is a next-generation subsurface inspection solution jointly developed by Zhusheng Technology and Shanghai Jiao Tong University. Designed for municipal road defect detection and underground utility investigation, the system integrates 200 MHz / 600 MHz dual-frequency antennas, a wireless all-in-one structure, GPS positioning, and professional data-processing software.
The 200 MHz antenna supports deeper detection for roadbed voids, cavities, and deeply buried pipelines, while the 600 MHz antenna provides clearer imaging for shallow defects, shallow utilities, and alignment identification. With compact dimensions, wireless connection to a tablet terminal, long battery life, and cloud collaboration support, the ZS-2060 is suitable for efficient field inspection and subsurface risk detection in urban infrastructure projects.
ZS-2060型无线探地雷达是由筑升科技与上海交通大学联合研发的新一代地下无损检测设备，面向市政道路病害检测和地下管线探测等应用场景设计。该产品集成 200 MHz / 600 MHz 双频天线、无线一体化结构、GPS 定位功能和专业数据处理软件，可为地下空间探测提供高效、精准、可靠的检测支持。
其中，200 MHz 天线适用于路基空洞、溶洞、深埋管线等深层目标探测；600 MHz 天线适用于浅层脱空、浅埋管线及精细结构识别。设备结构紧凑，可通过 WiFi 与平板显控终端连接，并支持长时间外业作业和云端协同，适用于城市基础设施检测和地下风险识别项目。
Applications
Typical applications
- Municipal road defect detection
- Underground utility investigation
- Roadbed void and cavity detection
- Shallow utility and alignment identification
- Engineering quality inspection
- Shallow geological investigation
- 市政道路病害检测
- 地下管线探测
- 路基空洞及空腔识别
- 浅埋管线及走向识别
- 工程质量检测
- 浅层地质勘查
Features
Key product features
- Dual-frequency detection with 200 MHz / 600 MHz antennas, combining deep penetration and high-resolution imaging in one system
- Integrated wireless architecture combining the main unit, antennas, battery, and WiFi tablet connection for cable-free field operation
- Lightweight and compact design, weighing about 10 kg and measuring 540 mm × 540 mm × 200 mm for single-person field deployment
- Built-in lithium battery supporting more than 8 hours of continuous operation for full-day inspection tasks
- Built-in GPS positioning for inspection coordinate recording, survey track recording, route navigation, and later review
- Professional software supporting real-time background removal, filtering, gain adjustment, anomaly marking, rollback positioning, data storage, and historical replay
- Cloud collaboration and remote interpretation support for field data upload, expert review, and technical decision support
- 200 MHz / 600 MHz 双频探测，一套设备兼顾深层探测与高分辨率成像
- 无线一体化结构，主机、天线、电池与 WiFi 平板连接集成，支持无线缆现场作业
- 轻量化紧凑设计，设备重量约 10 kg，尺寸 540 × 540 × 200 mm，便于单人外业布设
- 内置高能锂电池，支持 8小时以上连续工作，满足全天外业检测需求
- 内置 GPS 定位模块，可记录检测坐标和轨迹，支持路线导航和后续复查
- 配套专业软件，支持实时背景去除、滤波、增益调节、异常标记、回拉定位、数据存储和历史回放
- 支持云端协同与远程解译，便于现场数据上传、专家复核和技术决策支持
Technical Information
Technical parameters
- Center Frequency: 200 MHz / 600 MHz
- Maximum Detection Depth: up to 4.0 m
- Sampling Points: 256 / 512 / 1024 / 2048
- Trigger Modes: distance trigger / time trigger
- Positioning: built-in GPS
- Data Interface: WiFi wireless connection
- Continuous Working Time: > 8 hours
- Operating Temperature: -20°C to +50°C
- Dimensions: 540 mm × 540 mm × 200 mm
- Weight: 10 kg
技术参数
- 中心频率：200 MHz / 600 MHz
- 最大探测深度：4.0 m
- 采样点数：256 / 512 / 1024 / 2048
- 触发方式：距离触发 / 时间触发
- 定位方式：内置 GPS
- 数据接口：WiFi 无线连接
- 连续工作时长：8小时以上
- 工作温度范围：-20°C ~ +50°C
- 设备尺寸：540 × 540 × 200 mm
- 设备重量：10 kg
