Vibro Equipment for Stone Columns and Compacted Sand/Gravel Piles

Typical Equipment Configurations

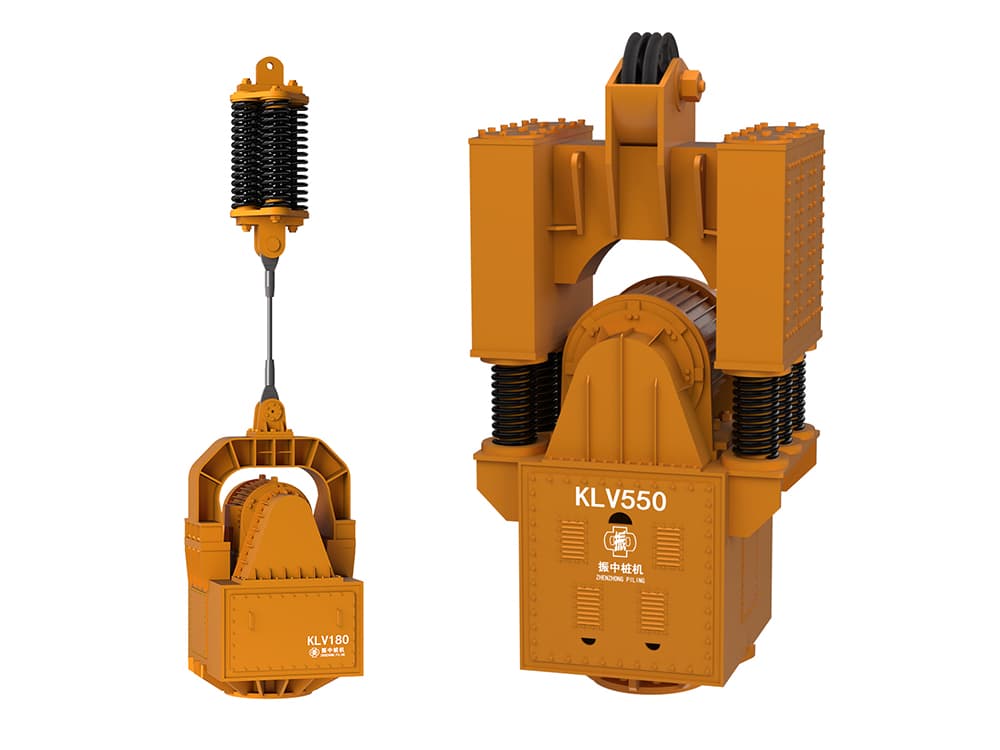

KLV400, KLV550, KLV650, together with EP400B, EP550B, EP550C, EP650B, and EP800B configurations adapted for stone column and compacted sand/gravel pile construction.

Key Technical Range

• Motor power: approximately 300–600 kW
• Eccentric moment: approximately 400–670 kg·m
• Operating frequency: approximately 580–750 r/min
• Maximum centrifugal force: approximately 150–252 t
• Maximum extraction capacity: approximately 90–120 t
• Typical column diameter: approximately 800–1,000 mm, depending on equipment configuration, construction method, and ground conditions

Construction Method

The casing is driven to the required treatment depth by vibratory penetration. Stone, gravel, or sand is then placed in stages, while controlled vibration and casing extraction compact the fill and form the ground-improvement column.

Equipment parameters and construction procedures can be adjusted according to soil conditions, treatment depth, column diameter, pile spacing, and required productivity.

Representative Applications

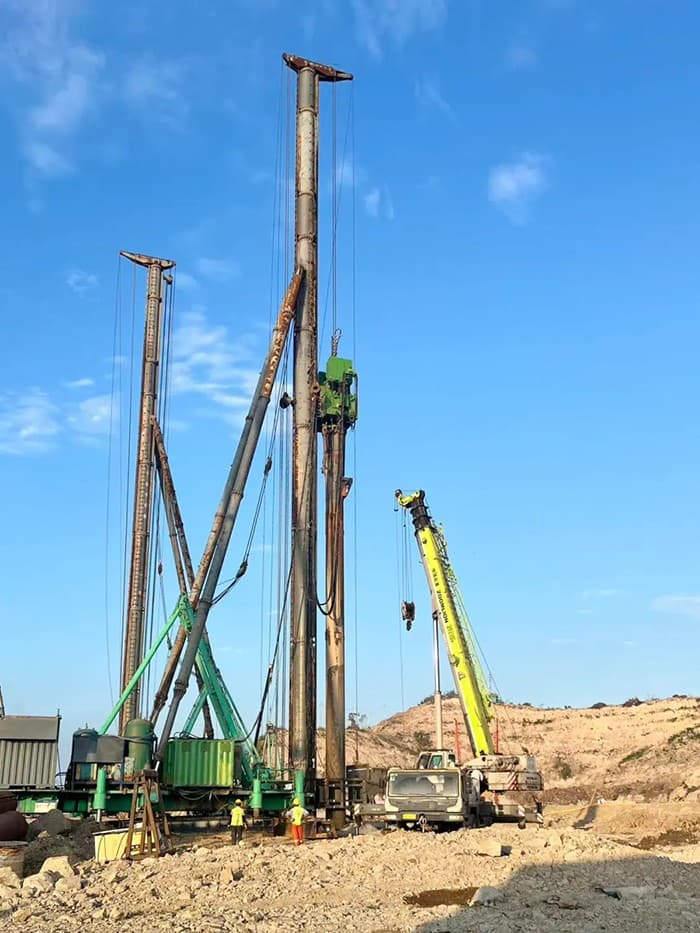

The equipment is used for stone columns, compacted sand piles, and sand/gravel piles in soft-ground improvement projects, including ports, terminals, airports, highways, industrial facilities, reclamation areas, and other major infrastructure works.

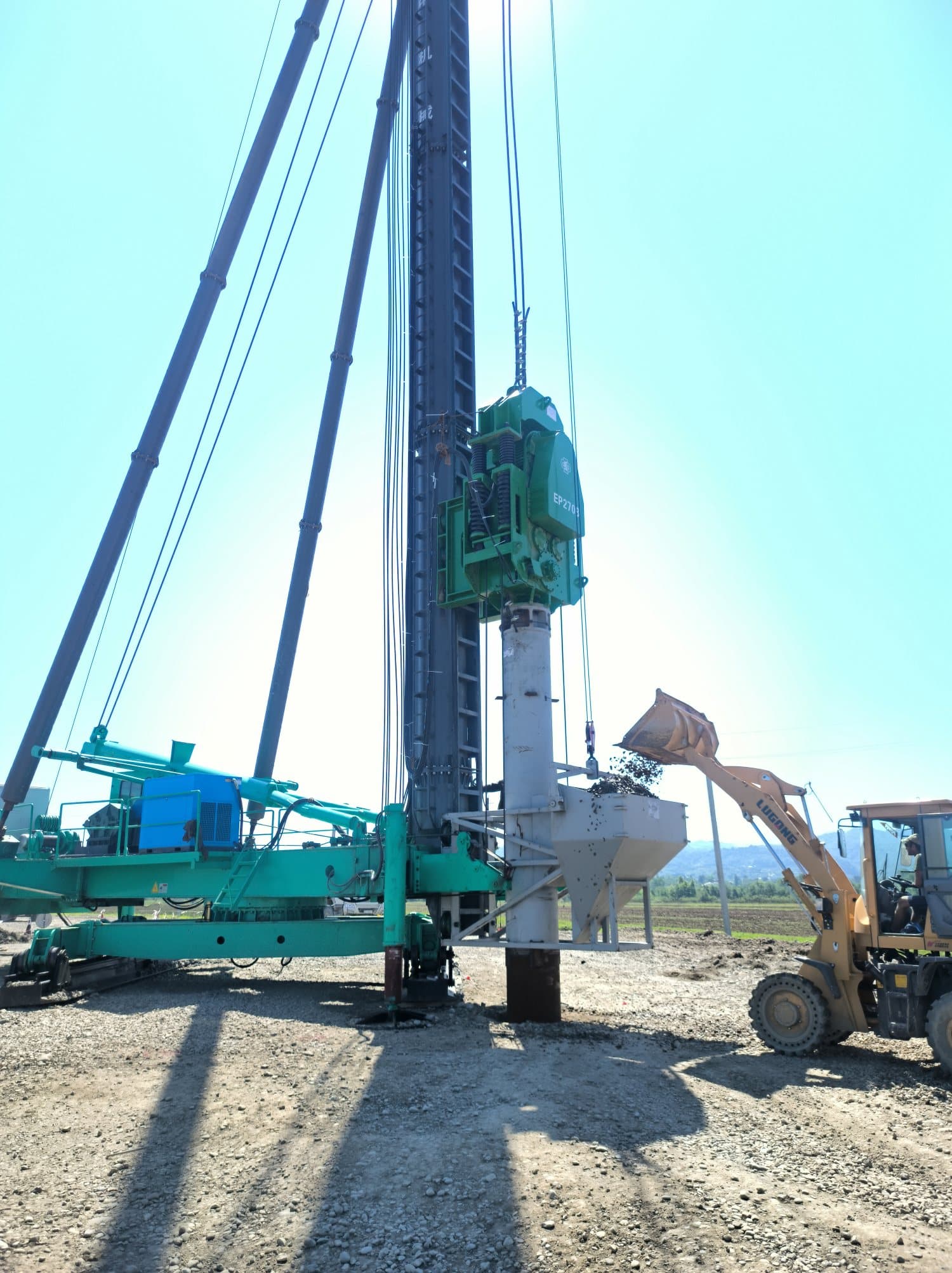

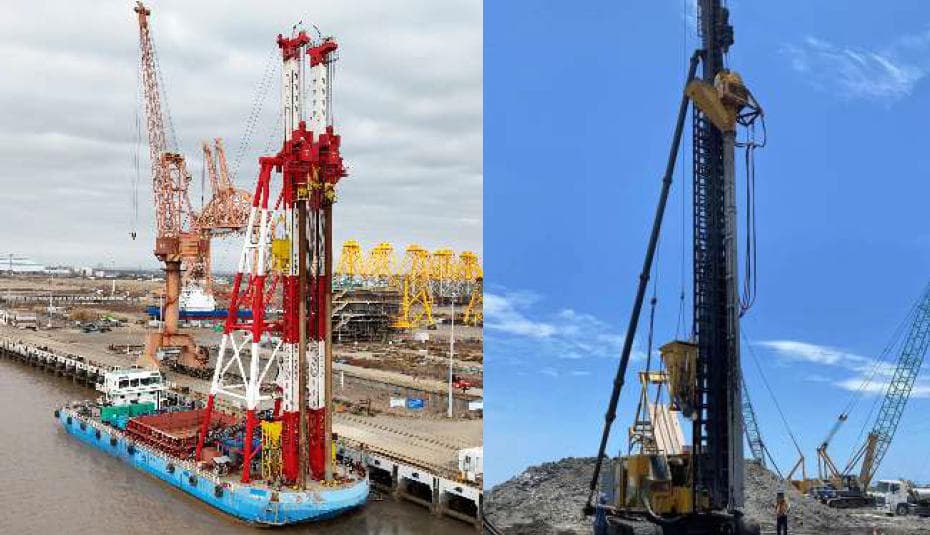

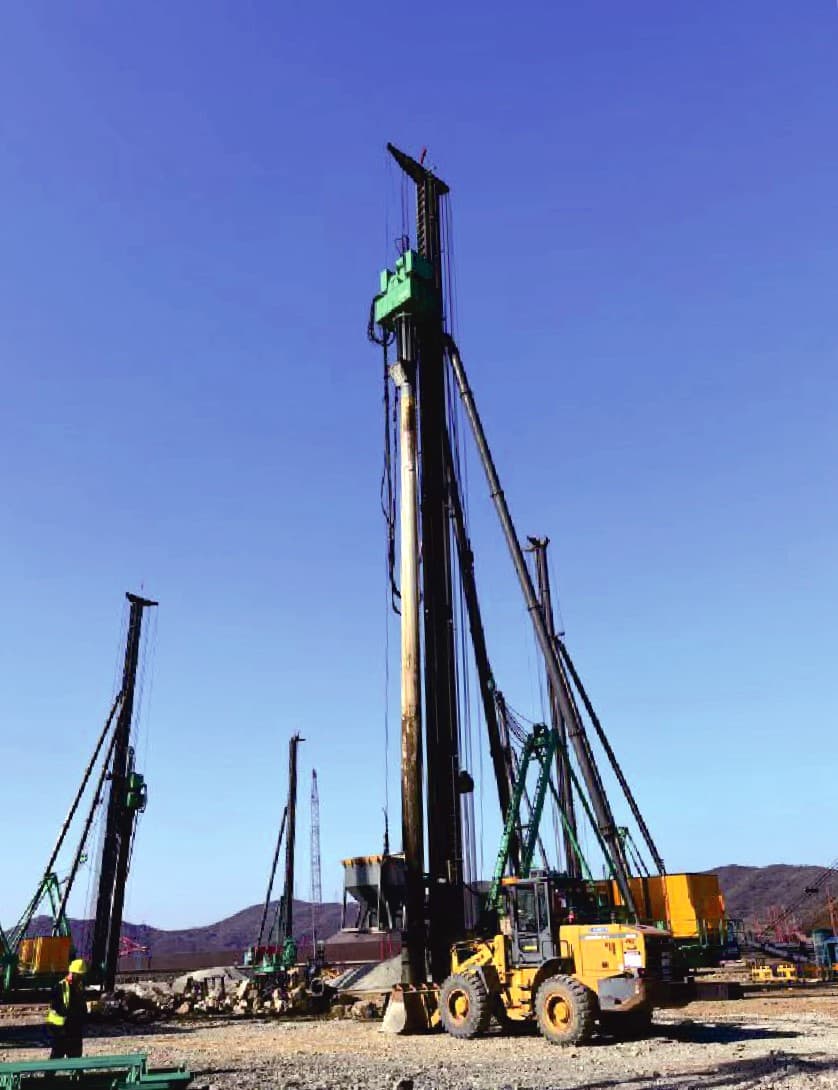

Representative applications include stone column and compacted sand pile works at port projects in Zhoushan, China, as well as stone column ground improvement for Lot 3 of the E60 Highway project in Georgia.

Engineering Support

Project-specific support includes vibro hammer selection, casing configuration, aggregate-placement method, construction parameter matching, and monitoring of operating current, casing penetration depth, and extraction speed.

典型设备配置

KLV400、KLV550、KLV650，以及用于碎石桩、挤密砂桩施工的 EP400B、EP550B、EP550C、EP650B、EP800B 等专用配置。

主要技术范围

• 电机功率：约 300–600 kW
• 偏心力矩：约 400–670 kg·m
• 工作频率：约 580–750 r/min
• 最大激振力：约 150–252 t
• 最大拔桩力：约 90–120 t
• 典型成桩直径：约 800–1,000 mm，具体根据设备配置、施工工法及地质条件确定

施工工法

通过振动沉管将套管沉至设计处理深度，随后分阶段填入碎石、砂石或砂料，并结合振动拔管和密实过程形成地基处理桩体。

设备参数及施工工艺可根据地质条件、处理深度、桩径、桩距和施工效率要求进行调整。

代表性应用

相关装备主要用于碎石桩、挤密砂桩及砂石桩施工，适用于港口码头、机场、公路、工业场地、吹填区域及其他大型基础设施项目的软土地基处理。

代表性应用包括舟山港区碎石桩及挤密砂桩施工，以及格鲁吉亚 E60 高速公路 Lot 3 碎石桩地基处理工程。

工程支持

可根据地质条件、处理深度、桩径及施工效率要求，提供振动锤选型、套管配置、填料工艺、施工参数匹配，并对工作电流、沉管深度和拔管速度等关键施工参数进行监测与控制。
