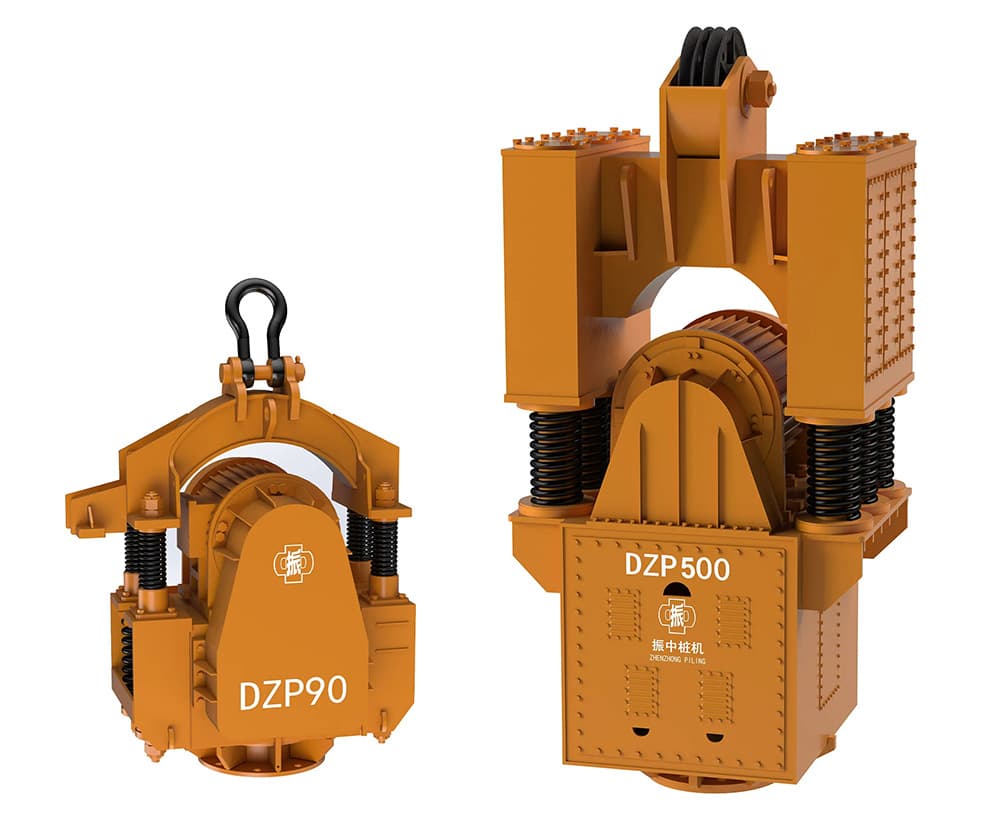

DZP Series Variable-Frequency Electric Vibro Hammers
Product Offering
DZP Series Variable-Frequency Electric Vibro Hammers
DZP 系列变频电驱振动锤
A variable-frequency electric vibro hammer range designed for efficient, controllable, and versatile pile driving in conventional foundation applications.
通过变频器调节启动和工作频率，面向常规桩基础施工提供高效、易操作、适应性强的电驱振动沉桩装备。
Supplied by Shanghai Zhenzhong Construction Machinery Technology Co., Ltd.
Overview
Product overview
The DZP series is a variable-frequency electric vibro hammer family for conventional foundation works. Frequency-converter start-up reduces starting current and power-supply demand, while operating frequency can be adjusted to suit soil conditions and pile types for improved installation efficiency.
The series covers multiple power and centrifugal-force levels and can be equipped with clamps for sheet piles, steel pipe piles, and precast concrete piles. It is suitable for building, municipal, port, and water-conservancy works involving pile driving, extraction, and temporary retaining structures.
DZP系列是面向常规桩基础施工开发的变频电驱振动锤。设备采用变频启动方式，降低启动电流和配套电源容量需求，并可根据地质条件和桩型调整振动频率，以提高沉桩效率和施工适应性。
系列产品覆盖多种功率和激振力等级，可配套不同钢板桩、钢管桩、混凝土预制桩夹具及施工装备，适用于建筑、市政、港口、水利等工程的沉桩、拔桩和临时支护施工。
Applications
Typical applications
- Sheet-pile retaining and temporary support works
- Steel pipe piles, casings, and precast pile installation
- Building, municipal, port, and water-conservancy foundations
- Projects requiring frequency adjustment for varying soil conditions
- 钢板桩围护与临时支护工程
- 钢管桩、钢护筒及预制桩施工
- 建筑、市政、港口和水利基础工程
- 需要调整工作频率以适应不同土层的项目
Features
Key product features
- Variable-frequency start-up for reduced current and power demand
- Adjustable operating frequency for different soils and pile types
- Broad model range covering multiple power and force levels
- Practical operation and maintenance
- Compatible with general-purpose and specialized clamps
- 变频启动，降低启动电流和供电要求
- 工作频率可调，适配不同土层和桩型
- 系列规格丰富，覆盖多种功率和激振力等级
- 操作和维护相对便捷
- 可配置多种通用或专用夹具
Offering Details
Technical Details & Applications
Typical Models: DZP45, DZP60, DZP90, DZP120, DZP150, DZP200, DZP300, DZP400, DZP500, DZP600
Key Technical Range: Motor power approximately 45–600 kW; eccentric moment approximately 25–680 kg·m; operating frequency approximately 580–1,150 r/min; maximum centrifugal force approximately 37–300 t; maximum extraction capacity approximately 20–180 t; no-load amplitude approximately 8.9–24.1 mm.
Representative Applications: Sheet-pile retaining works, steel pipe piles, steel casings, precast piles, and general building, municipal, port, and water-conservancy foundations.
Engineering Support: Variable-frequency start-up and operating-frequency adjustment enable matching to different pile types, soil conditions, and power supplies, with general-purpose or dedicated clamps available.
技术说明与应用案例
典型型号： DZP45、DZP60、DZP90、DZP120、DZP150、DZP200、DZP300、DZP400、DZP500、DZP600
主要技术范围： 电机功率约45–600 kW；偏心力矩约25–680 kg·m；工作频率约580–1150 r/min；最大激振力约37–300 t；允许最大拔桩力约20–180 t；空载振幅约8.9–24.1 mm。
典型应用： 钢板桩围护、钢管桩与钢护筒、预制桩及建筑、市政、港口、水利等常规基础工程。
工程支持： 通过变频启动与工作频率调节，适配不同桩型、土层和供电条件，并可配置通用或专用夹具。
Related Products & Solutions
关联产品与解决方案
Automatically selected based on supplier, category, keywords and offering type.
EQUIPMENT

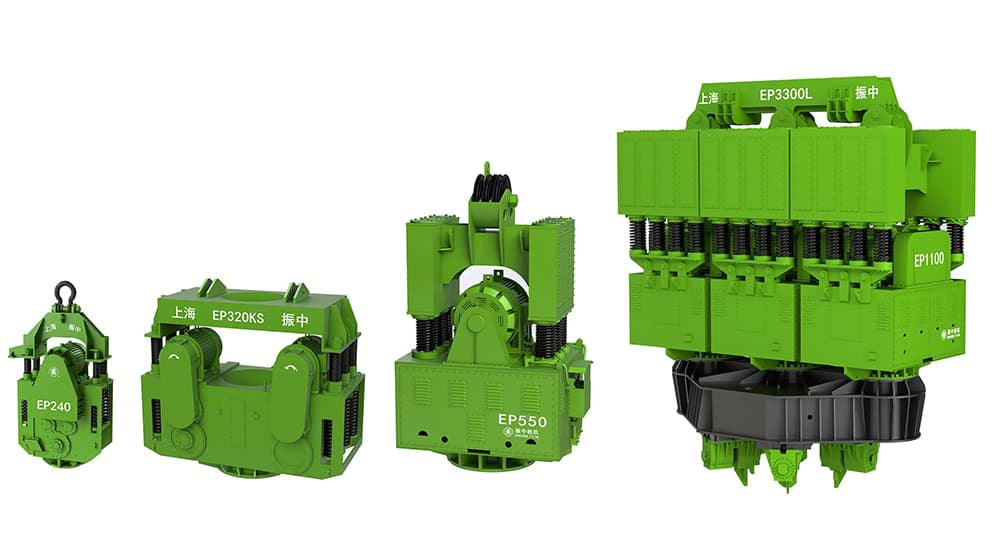

EP Series Resonance-Free Variable-Frequency and Variable-Moment Electric Vibro Hammers
EP 系列免共振变频变矩电驱振动锤
View Details
EQUIPMENT

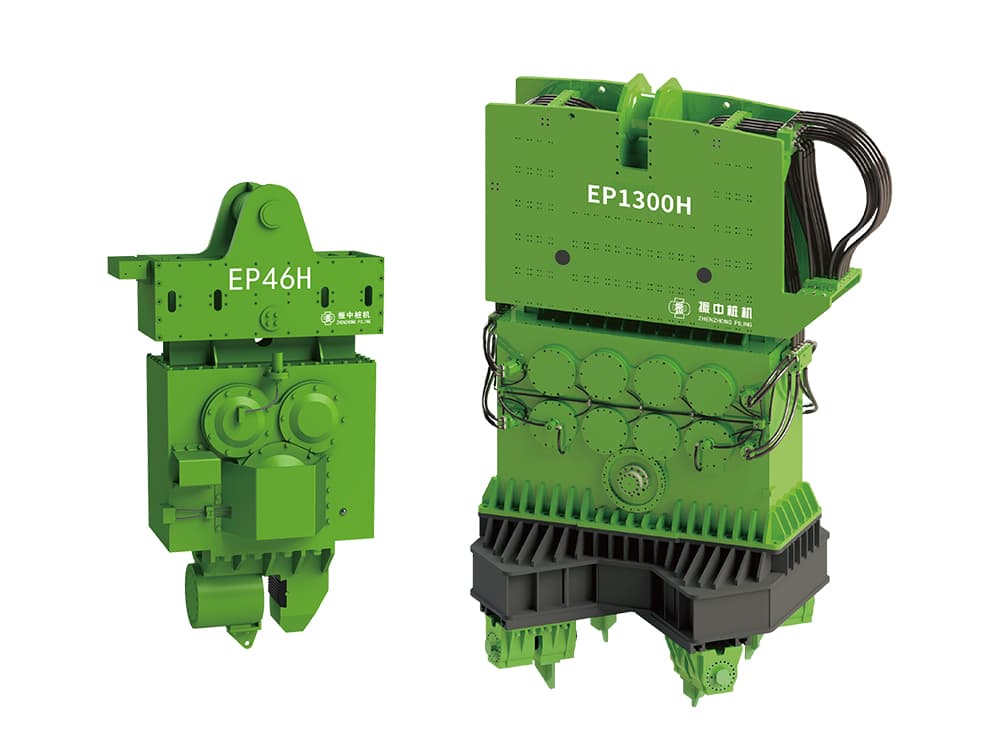

EPH Series Resonance-Free Hydraulic Vibro Hammers
EPH 系列免共振液压振动锤
View Details
EQUIPMENT

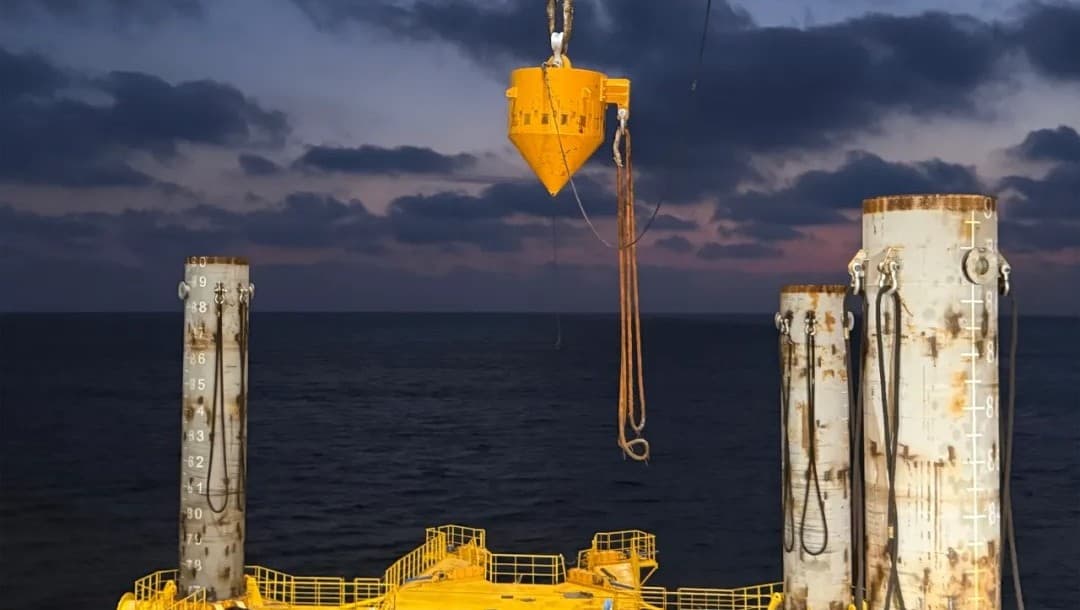

FZ Series Internal Lifting Tools for Large-Diameter Steel Pipe Piles
