Product Offering

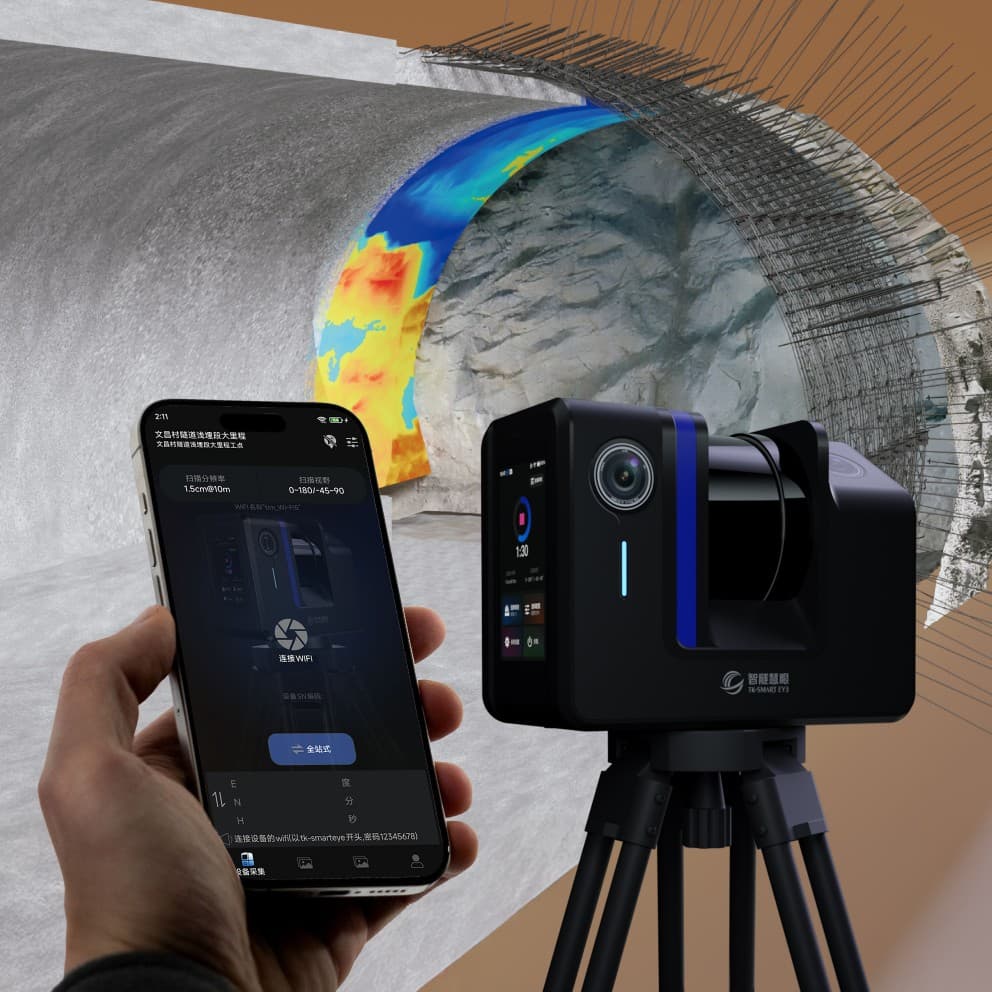

Tunnelkey Smarteye for Tunnelling (TK-SET)
智隧隧道扫描仪（TK-SET）
An intelligent tunnel measurement and analysis device integrating 3D laser point cloud collection, high-definition image capture, mobile APP operation and cloud-based construction data management.
集三维激光点云采集、高清影像获取、手机APP操作及云端施工数据管理于一体的隧道智能量测分析设备。
Supplied by Chengdu Tunnelkey Technology Co., Ltd.
Overview
Product overview
Tunnelkey Smarteye for Tunnelling is an intelligent measurement and analysis device serving the tunnel construction process. It can simultaneously collect 3D point clouds and capture high-definition images, providing digital data for tunnel construction measurement, analysis and process control.
The system works together with the Tunnelkey APP and cloud platform. On-site engineers can complete data collection, processing, analysis, result presentation and cloud upload through the mobile APP, reducing dependence on computers during field operations.
A single station dataset can support over-excavation and under-excavation analysis, thickness analysis, volume calculation, surface flatness evaluation, geological modelling, geological sketching and surrounding rock classification.
智隧隧道扫描仪是服务于隧道施工全过程的智能量测分析设备，可同步采集三维点云并获取高清影像，为隧道施工量测、分析和过程控制提供数字化数据基础。
该设备与Tunnelkey APP及云平台配合使用，现场工程师可通过手机APP完成数据采集、处理分析、成果展示及云端上传，减少现场作业对电脑的依赖。
单测站数据可用于超欠挖分析、厚度分析、方量计算、平整度评价、地质建模、地质素描及围岩分级等工作。
Applications
Typical applications
- Tunnel construction measurement
- Over-excavation and under-excavation analysis
- Shotcrete thickness and volume analysis
- Tunnel geological sketching
- Surrounding rock classification
- Tunnel construction process control
- 隧道施工量测
- 超欠挖分析
- 喷射混凝土厚度及方量分析
- 隧道地质素描
- 围岩分级
- 隧道施工过程控制
Features
Key product features
- Simultaneous 3D point cloud and high-definition image acquisition
- Multiple mounting modes including stand-alone, total-station-based and machine-mounted modes
- Fast data collection response
- Mobile APP-based full-process operation
- Built-in laser projection module for construction assistance
- Cloud upload and multi-terminal data synchronization
- 同步采集三维点云和高清影像
- 支持独立式、全站式、机载等多种搭载方式
- 数据采集响应快
- 手机APP全流程操作
- 内置激光投射模块辅助施工
- 支持云端上传与多端数据同步
Technical Information
Technical parameters
- Tunnelkey Smarteye has been used in more than 30 tunnel projects in China. Based on continuous cloud platform data, project teams can adjust reserved deformation amounts, reduce sprayed concrete overconsumption, strengthen construction management and reduce over-excavation-related costs.
技术参数
- 智隧隧道扫描仪已在中国30多个隧道项目中投入使用。依托云平台连续数据，项目团队可调整预留变形量，降低喷射混凝土超耗率，强化施工管理，并减少超挖相关成本。
