Intelligent Tunnel 3D Laser Point Cloud Processing and Analysis Software (TK-PCAS)
智隧三维激光点云处理分析软件（TK-PCAS）
A tunnel point cloud processing and analysis software for converting 3D laser scanning data into construction analysis results, geological models and tunnel engineering management outputs.
面向隧道三维激光扫描数据的点云处理分析软件，可将现场采集数据转化为施工分析成果、地质模型及工程管理成果。
Supplied by Chengdu Tunnelkey Technology Co., Ltd.
Overview
Product overview
TK-PCAS is Tunnelkey’s intelligent tunnel 3D laser point cloud processing and analysis software. It processes tunnel scanning data and supports the generation of intuitive engineering results for tunnel construction measurement and analysis.
The software supports over-excavation and under-excavation analysis, thickness analysis, volume calculation, surface flatness evaluation, geological modelling, geological sketching and surrounding rock classification. It helps project teams convert raw scanning data into structured construction information.
TK-PCAS是天佑智隧研发的隧道三维激光点云处理分析软件，用于处理隧道扫描数据，并生成直观的隧道施工量测与分析成果。
软件可支持超欠挖分析、厚度分析、方量计算、平整度评价、地质建模、地质素描和围岩分级等功能，帮助项目团队将原始扫描数据转化为结构化施工信息。
Applications
Typical applications
- Tunnel point cloud data processing

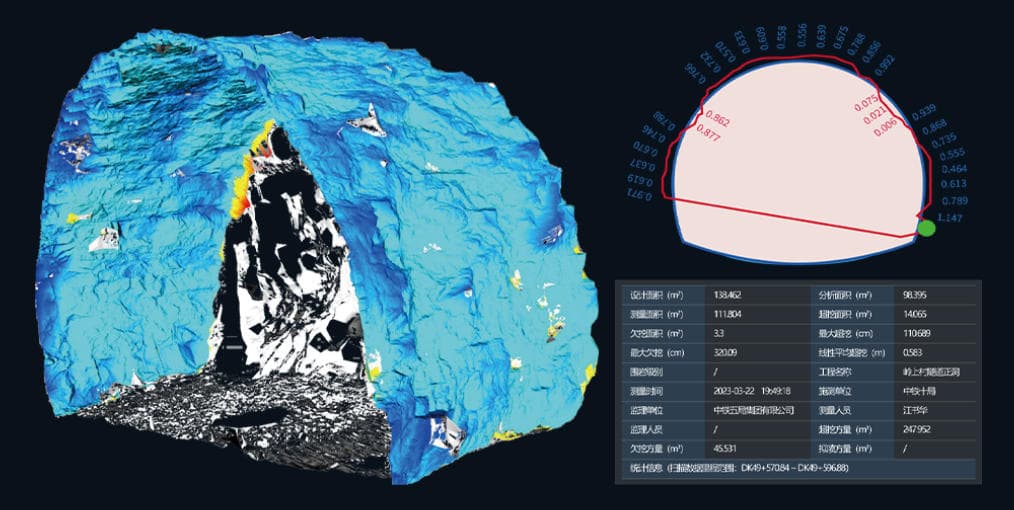

- Over-excavation and under-excavation analysis

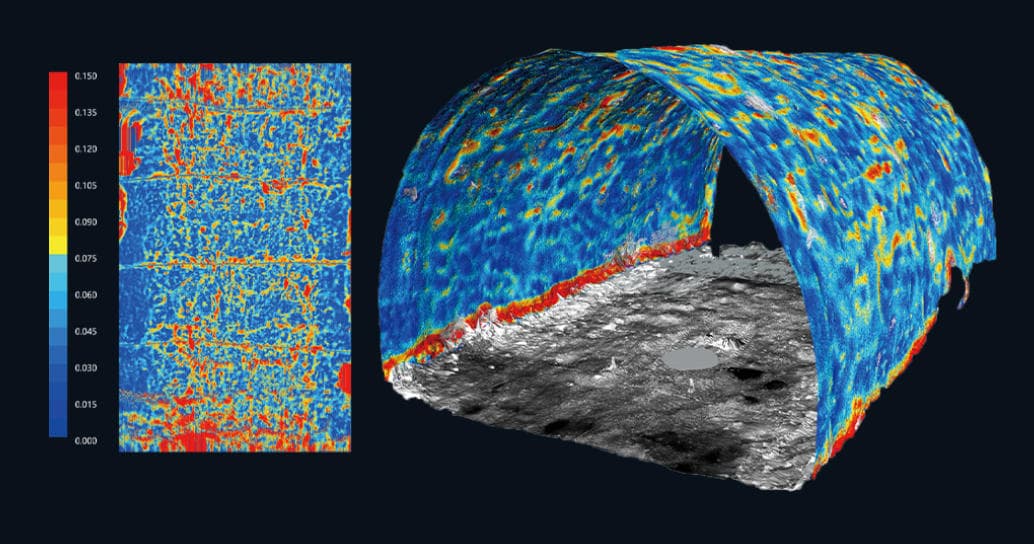

- Shotcrete thickness analysis

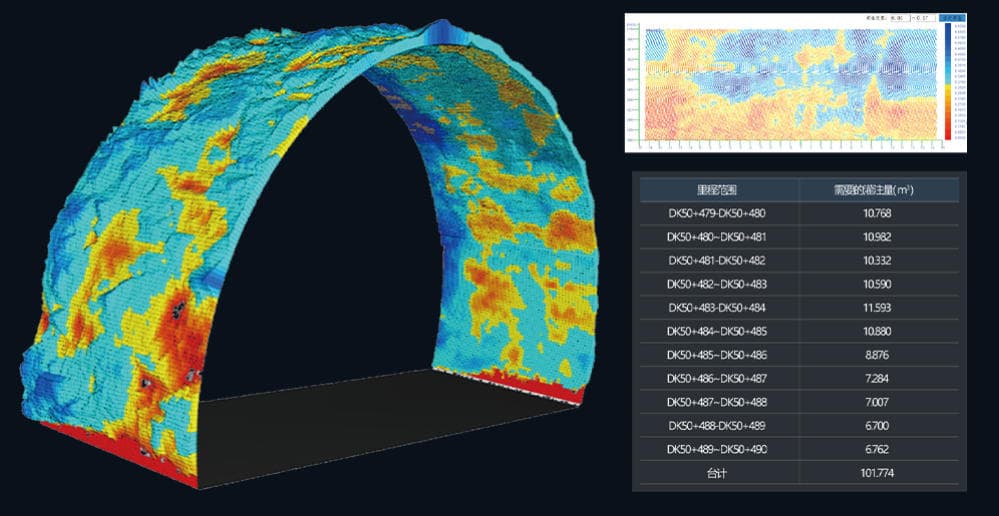

- Construction volume calculation
- Tunnel surface flatness evaluation
- Geological sketch and surrounding rock analysis
- 隧道点云数据处理
- 超欠挖分析
- 喷射混凝土厚度分析
- 施工方量计算
- 隧道表面平整度评价
- 地质素描及围岩分析
Features
Key product features
- Tunnel-oriented point cloud processing workflow
- Supports multiple tunnel construction analysis outputs
- Converts scanning data into structured engineering results
- Supports geological information recognition
- Provides data support for blasting optimization
- Can be integrated with mobile APP and cloud platform workflows
- 面向隧道场景的点云处理流程
- 支持多类隧道施工分析成果输出
- 将扫描数据转化为结构化工程成果
- 支持地质信息识别
- 为爆破优化提供数据支持
- 可与手机APP及云平台流程配合使用
Technical Information
Technical parameters
- The software supports the analysis of tunnel over-excavation, under-excavation, thickness, volume and flatness from 3D laser scanning data. It can also generate geological models, geological sketches and surrounding rock classification outputs for tunnel construction management.
技术参数
- 该软件可基于三维激光扫描数据开展隧道超欠挖、厚度、方量和平整度分析，并可生成地质模型、地质素描及围岩分级成果，服务隧道施工管理。
