WSF020-13 OL Fiber for UHPC
WSF020-13 UHPC用OL钢纤维

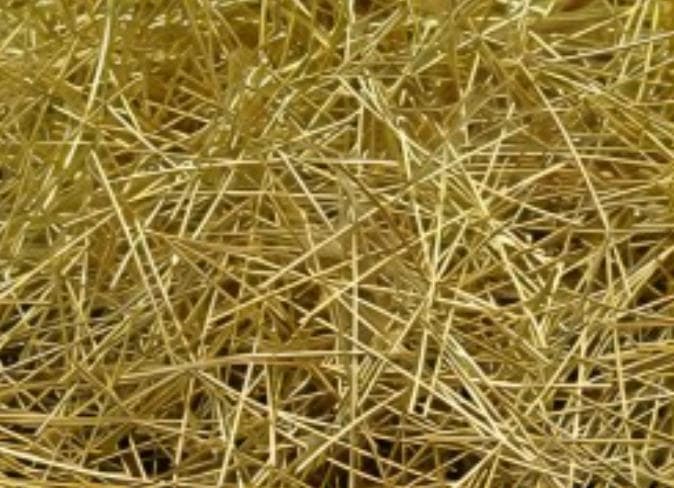

WSF020-13 is a copper or brass coated steel fiber for UHPC and RPC applications, designed for high-strength prefabricated components requiring compressive, tensile and crack-resistance performance.
WSF020-13 是面向 UHPC 和 RPC 应用的铜镀或黄铜镀层钢纤维，适用于对抗压、抗拉和抗裂性能要求较高的高性能预制构件。
Supplied by EngiFind Listed Supplier
Overview
Product overview
WSF020-13 OL Fiber is a special coated steel fiber for ultra-high performance concrete applications. The product is suitable for high-performance cementitious composites requiring strong compressive resistance, tensile performance and crack resistance.
It can be used in high-speed railway prefabricated parts, RPC cover panels, UHPC prefabricated components and other important engineering components where high strength and durability are required.
WSF020-13 OL钢纤维是一种用于超高性能混凝土的特种镀层钢纤维，适用于对抗压、抗拉和抗裂性能要求较高的高性能水泥基复合材料。
该产品可用于高速铁路预制构件、RPC盖板、UHPC预制构件及其他对强度和耐久性要求较高的重要工程部件。
Applications
Typical applications
- UHPC prefabricated components
- RPC cover panels
- High-speed railway prefabricated parts
- High-performance concrete products
- Thin and high-strength cementitious components
- Engineering components requiring crack resistance
- UHPC预制构件
- RPC盖板
- 高速铁路预制构件
- 高性能混凝土制品
- 薄壁高强水泥基构件
- 需要抗裂性能的重要工程构件
Features
Key product features
- Copper or brass coated steel fiber
- Designed for UHPC and RPC applications
- High tensile strength of 2800 MPa
- Supports compressive, tensile and crack-resistance performance
- Suitable for high-speed railway and prefabricated components
- Certified under CE EN 14889-1 and ASTM standards
- 铜镀或黄铜镀层钢纤维
- 适用于 UHPC 和 RPC 应用
- 抗拉强度 2800 MPa
- 支持抗压、抗拉和抗裂性能提升
- 适用于高速铁路及预制构件
- 通过 CE EN 14889-1 及 ASTM 相关认证
Technical Information
Technical parameters
- Model: WSF020-13.
- Type: OL Fiber.
- Material form: copper or brass coated steel fiber.
- Diameter: 0.20 mm ±10%.
- Length: 13 mm ±10%.
- Aspect ratio: 65.
- Tensile strength: 2800 MPa ±7.5%.
- Certification: CE EN 14889-1 and ASTM.
技术参数
- 型号：WSF020-13。
- 类型：OL钢纤维。
- 材料形式：铜镀或黄铜镀层钢纤维。
- 直径：0.20 mm ±10%。
- 长度：13 mm ±10%。
- 长径比：65。
- 抗拉强度：2800 MPa ±7.5%。
- 认证：CE EN 14889-1 及 ASTM。
