UF062-3555NP Double Hooked-End Glued Steel Fiber
UF062-3555NP 双端钩胶粘钢纤维

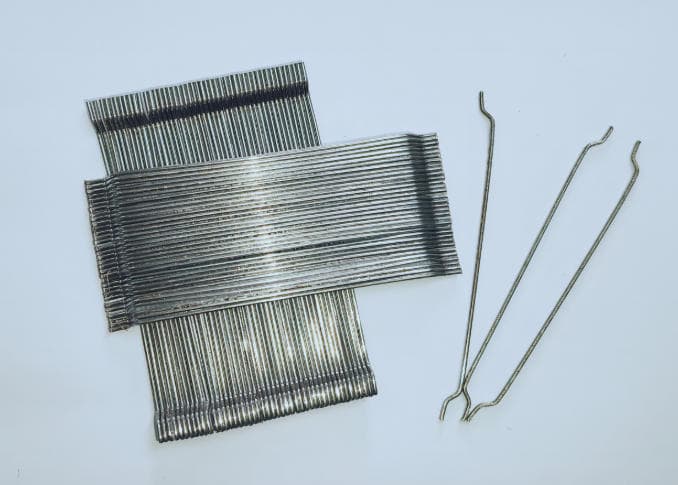

UF062-3555NP is a double hooked-end glued steel fiber made from cold-drawn steel wire, designed for concrete reinforcement, toughness improvement and crack-control applications.
UF062-3555NP 是由冷拔钢丝制成的双端钩胶粘钢纤维，适用于混凝土增强、韧性提升和裂缝控制应用。
Supplied by EngiFind Listed Supplier
Overview
Product overview
UF062-3555NP is a cold-drawn steel wire fiber with hooked ends and glued bundle configuration. The product is designed to improve mechanical properties of concrete, including ductility, flexural performance and crack resistance.
When used in appropriate concrete applications, the fibers can substitute or work together with conventional steel reinforcement to improve concrete performance. The glued bundle form helps improve dispersion during mixing, while the hooked-end geometry enhances mechanical anchorage within the concrete matrix.
UF062-3555NP 是一种由冷拔钢丝制成的双端钩胶粘钢纤维，用于提升混凝土延性、抗弯性能和抗裂能力。
在适宜混凝土应用场景中，该产品可替代部分传统钢筋，也可与传统钢筋配合使用，以改善混凝土性能。胶粘成束形式有助于搅拌分散，双端钩构造有助于增强纤维在混凝土基体中的机械锚固。
Applications
Typical applications
- Steel fiber reinforced concrete
- Concrete slabs and floors
- Precast concrete components
- Tunnel and underground concrete applications
- Concrete crack-control systems
- Concrete toughness improvement applications
- 钢纤维混凝土
- 混凝土板及地坪
- 预制混凝土构件
- 隧道及地下工程混凝土应用
- 混凝土裂缝控制体系
- 混凝土韧性提升应用
Features
Key product features
- Cold-drawn steel wire fiber
- Double hooked-end geometry
- Glued bundle form for improved mixing dispersion
- Suitable for concrete reinforcement applications
- Improves ductility, flexural strength and crack resistance
- Certified under CE EN 14889-1 and ASTM standards
- 冷拔钢丝纤维
- 双端钩构造
- 胶粘成束形式有助于搅拌分散
- 适用于混凝土增强应用
- 提升混凝土延性、抗弯强度和抗裂性能
- 通过 CE EN 14889-1 及 ASTM 相关认证
Technical Information
Technical parameters
- Model: UF062-3555NP.
- Type: Double hooked-end / glued steel fiber.
- Diameter: 0.62 mm ±10%.
- Length: 50 mm ±10%.
- Aspect ratio: 80.
- Tensile strength: 1300 MPa ±7.5%.
- Number of fibers per kg: approximately 8,200.
- Certification: CE EN 14889-1 and ASTM.
技术参数
- 型号：UF062-3555NP。
- 类型：双端钩 / 胶粘钢纤维。
- 直径：0.62 mm ±10%。
- 长度：50 mm ±10%。
- 长径比：80。
- 抗拉强度：1300 MPa ±7.5%。
- 每公斤纤维根数：约8,200根。
- 认证：CE EN 14889-1 及 ASTM。
