Product Offering
Steel Fiber
钢纤维

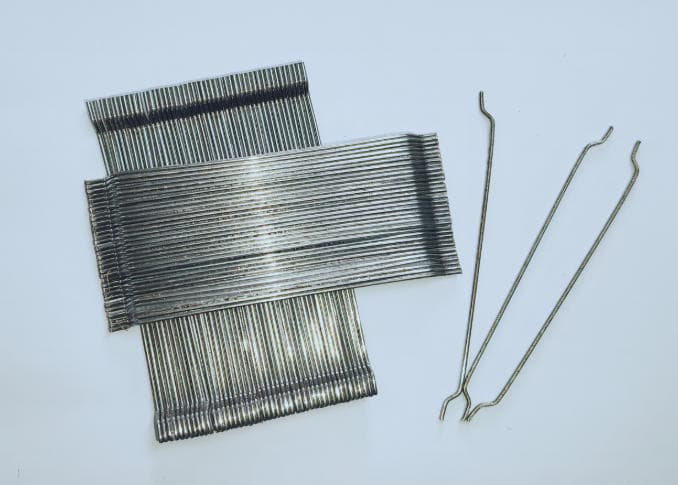

Lanmix steel fibers are cold-drawn steel wire fibers with double hooked ends and glued bundle configuration, designed to improve ductility, toughness, flexural performance and crack resistance in concrete.
Lanmix 钢纤维为冷拔钢丝制成的双端钩胶粘钢纤维，用于提升混凝土延性、韧性、抗弯性能和抗裂性能。
Supplied by Fujian Lanmei New Material Co., Ltd.
Overview
Product overview
Lanmix steel fibers are concrete reinforcing materials made from cold-drawn steel wire fibers. The fibers use double hooked-end geometry for mechanical anchorage in concrete and are glued in bundles to support homogeneous mixing and reduce fiber balling during concrete production.
When added to concrete at an appropriate dosage, steel fibers can improve the mechanical properties of concrete, including ductility, toughness, flexural strength and crack resistance. In suitable applications, steel fiber reinforced concrete can be used as a substitute for, or in combination with, conventional steel bar reinforcement to achieve improved concrete performance.
Lanmix 钢纤维是由冷拔钢丝制成的混凝土增强材料，采用双端钩构造以增强纤维在混凝土中的机械锚固，并通过胶粘成束形式改善搅拌分散效果，减少钢纤维混凝土拌合过程中的结团问题。
按适当掺量加入混凝土后，钢纤维可提升混凝土的延性、韧性、抗弯强度和抗裂性能。在适宜工程条件下，钢纤维混凝土可替代部分传统钢筋，也可与传统钢筋配合使用，以获得更好的混凝土性能。
Applications
Typical applications
- Steel fiber reinforced concrete
- Tunnel shotcrete
- Industrial flooring
- Precast concrete components
- Concrete slabs and pavements
- Crack-control and toughness-enhanced concrete applications
- 钢纤维混凝土
- 隧道喷射混凝土
- 工业地坪
- 预制混凝土构件
- 混凝土板及路面
- 裂缝控制及韧性增强混凝土应用
Features
Key product features
- Cold-drawn steel wire fibers for improved ductility and toughness in concrete
- Hooked-end geometry for excellent end anchorage in concrete
- Fibers glued in bundles to support homogeneous mixing and prevent fiber balling
- High-strength fibers above 1300 N/mm² to support strain hardening behavior in concrete
- Can improve flexural performance and crack resistance
- Can be used as a substitute for or in combination with conventional reinforcement in suitable applications
- 冷拔钢丝纤维可提升混凝土延性和韧性
- 端钩构造有助于在混凝土中形成良好的端部锚固
- 胶粘成束形式有助于均匀拌合并防止钢纤维结团
- 抗拉强度大于1300 N/mm²的高强纤维有助于混凝土应变硬化性能
- 可提升混凝土抗弯性能和抗裂能力
- 在适宜应用中可替代部分传统钢筋或与传统钢筋配合使用
Technical Information
Technical parameters
Standards:
- EN 14889-1.
- ASTM.
- SS674:2021.
Typical product range:
- Diameter: 0.55–0.75 mm.
- Length: 35–60 mm.
- Tensile strength: 1300–2200 MPa.
- Young’s modulus: approximately 210,000 MPa.
- Configuration: Double hooked-end / glued steel fiber.
Key benefits:
- Cold-drawn steel wire fibers improve ductility and toughness when mixed in concrete.
- Hooked-end steel wire fibers provide excellent end anchorage in concrete.
- Fibers glued in bundles support homogeneous mixing and help prevent fiber balling.
- High-strength fibers above 1300 N/mm² support strain-hardening behavior in concrete, similar to reinforced concrete using conventional steel bars.
Representative project applications:

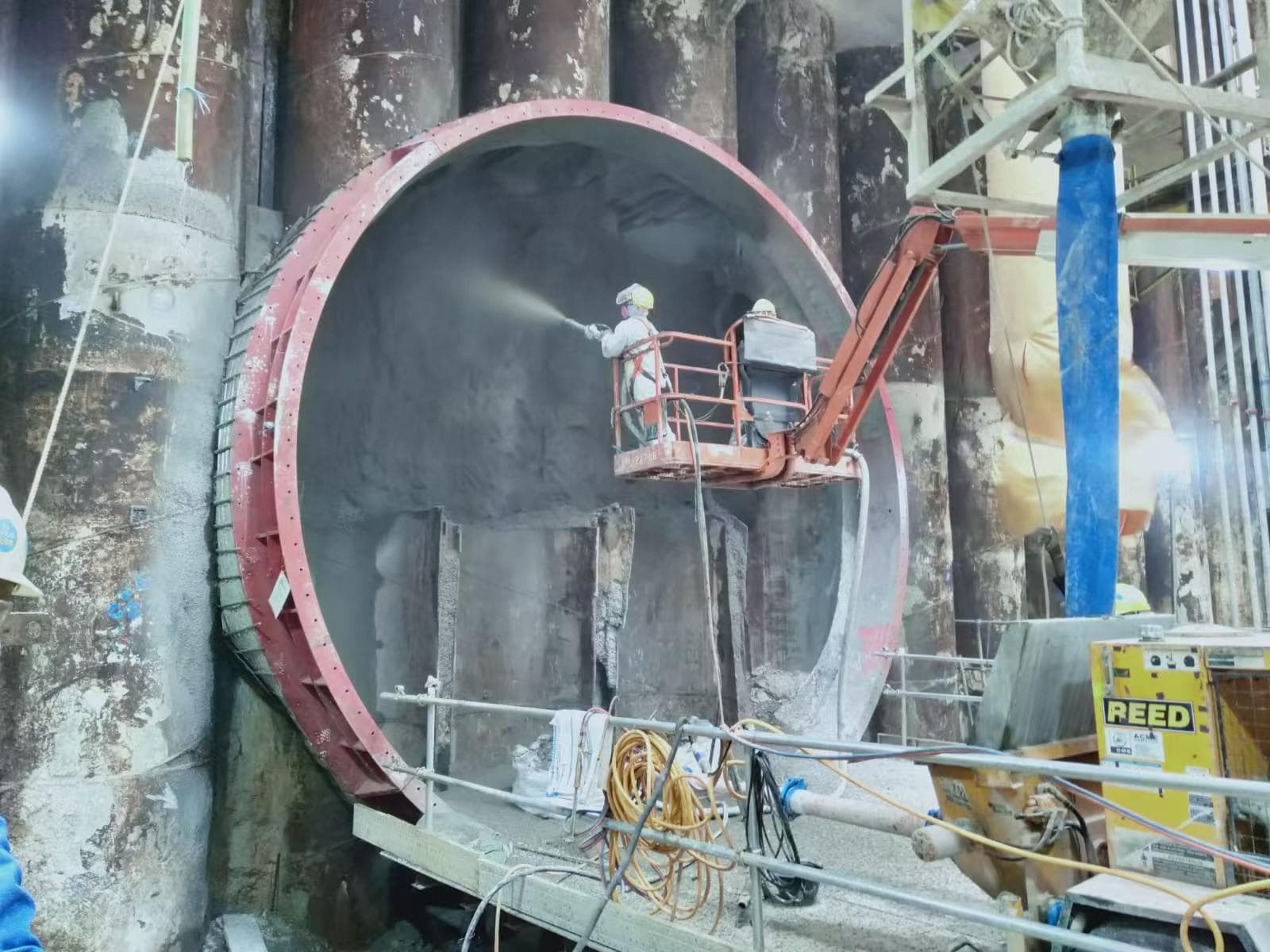

- Cross Island Line – CR102 in Singapore: Lanmix steel fibers were used for tunnelling shotcrete. The project adopted UF055-3565NP steel fibers at a dosage of 40 kg/m³, with a shotcrete thickness of 60–80 mm. The project commenced in 2024.

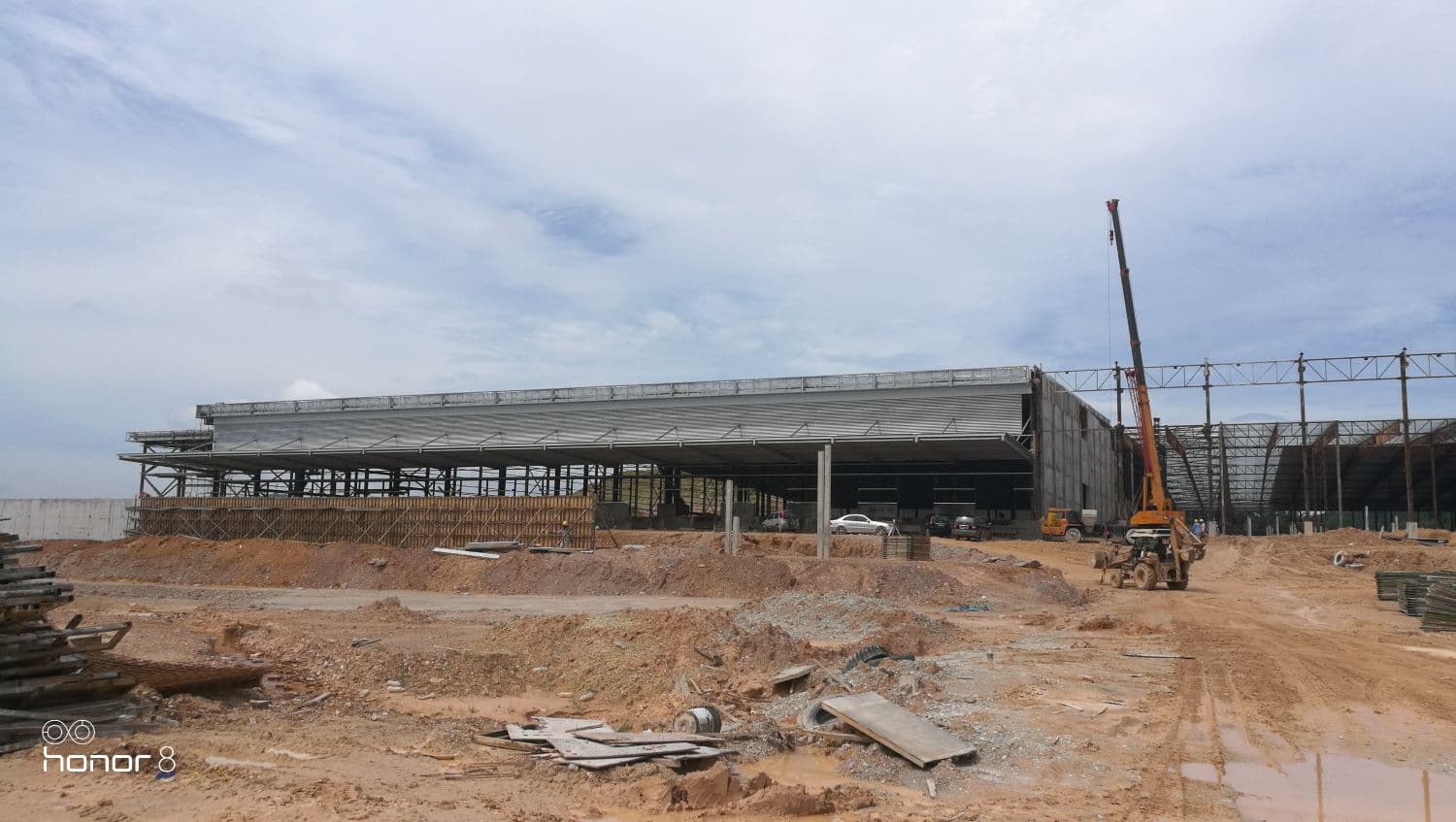

- Continental Tire Factory in Malaysia: Lanmix steel fibers were used for industrial flooring slab-on-pile applications. The project adopted UF075-6080MNP steel fibers at a dosage of 35 kg/m³, with a slab thickness of 300 mm. The project commenced in 2018.
技术参数
适用标准：
- EN 14889-1。
- ASTM。
- SS674:2021。
典型产品范围：
- 直径：0.55–0.75 mm。
- 长度：35–60 mm。
- 抗拉强度：1300–2200 MPa。
- 弹性模量：约210,000 MPa。
- 产品构型：双端钩 / 胶粘钢纤维。
主要优势：
- 冷拔钢丝纤维掺入混凝土后可提升混凝土延性和韧性。
- 端钩钢纤维可在混凝土中形成良好的端部锚固。
- 胶粘成束钢纤维有助于均匀拌合，并减少钢纤维混凝土中的纤维结团问题。
- 抗拉强度大于1300 N/mm²的高强钢纤维有助于混凝土产生类似钢筋混凝土的应变硬化性能。
代表性工程应用：
- 新加坡 Cross Island Line – CR102：Lanmix 钢纤维应用于隧道喷射混凝土，项目采用 UF055-3565NP 钢纤维，掺量为40 kg/m³，喷射混凝土厚度为60–80 mm，项目于2024年开始。
- 马来西亚 Continental Tire Factory：Lanmix 钢纤维应用于工业地坪桩承板，项目采用 UF075-6080MNP 钢纤维，掺量为35 kg/m³，板厚为300 mm，项目于2018年开始。
