Product Offering
Integrated Intelligent Servo Equipment for Steel Strut Axial Force
钢支撑轴力一体化智能伺服设备
Integrated intelligent servo equipment for active control and dynamic adjustment of axial force in foundation-pit steel struts, enabling closed-loop regulation according to foundation pit deformation conditions and supporting support-structure control in tunnel foundation pits, deep foundation pits and infrastructure civil works.
用于基坑钢支撑轴力主动控制和动态调节的一体化智能伺服设备，可根据基坑变形状态对支撑轴向力进行闭环调控，适用于隧道基坑、深基坑及基础设施土建施工中的支护结构控制场景。
Supplied by Tengda Construction Group Co., Ltd.
Overview
Product overview

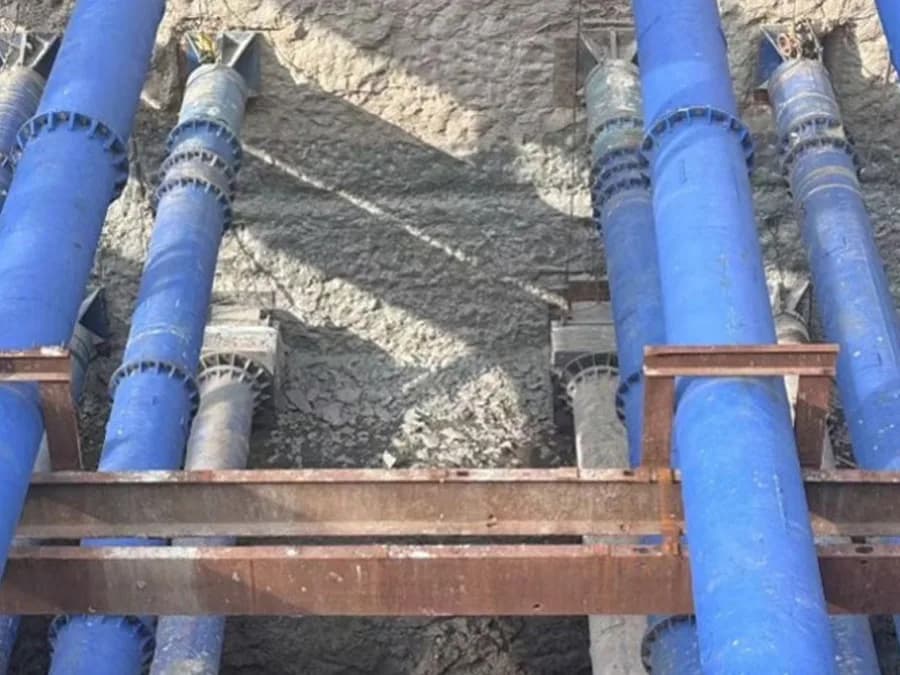

The integrated intelligent servo equipment for steel strut axial force (model: TD-IAFS-01) is used for active control and dynamic adjustment of axial force in foundation-pit steel struts. Installed at one end of the internal steel pipe strut, the equipment can adjust strut axial force in a closed-loop manner according to foundation pit deformation conditions. It is suitable for tunnel foundation pits, deep foundation pits and support-structure control in infrastructure civil works.
The equipment integrates a steel box, hydraulic station, PID control system, hydraulic cylinder, ball-head top cap and shaft-end system. The control system sends commands to drive the hydraulic system; hydraulic oil is pressurized and introduced into the cylinder, lifting the shaft-end system through the piston and transmitting pressure to the ball-head top cap, thereby enabling axial force loading, holding, adjustment and operational monitoring.
钢支撑轴力一体化智能伺服设备（型号：TD-IAFS-01）用于基坑钢支撑轴力的主动控制和动态调节。设备固定于钢管内支撑一端，可根据基坑变形状态对支撑轴向力进行闭环调控，适用于隧道基坑、深基坑及基础设施土建施工中的支护结构控制场景。
设备集成钢套箱、液压站、PID控制系统、油缸、球头顶盖和轴端系统等单元。控制系统下发指令驱动液压系统，液压油经增压后进入油缸，通过活塞顶升轴端系统并将压力传递至球头顶盖，实现支撑轴力加载、保持、调节和运行监控。
Applications
Typical applications
- Active axial force control for deep foundation-pit steel struts
- Support-structure control for tunnel foundation pits and underground works
- Dynamic axial force adjustment for internal steel pipe strut systems
- Foundation pit deformation control and support-system safety management
- Single-strut and multi-strut axial force control
- Automated monitoring and control of support structures during civil construction
- 深基坑钢支撑轴力主动控制
- 隧道基坑和地下工程支护结构控制
- 钢管内支撑系统轴力动态调节
- 基坑变形控制与支护体系安全管理
- 单道及多道钢支撑轴力调控
- 土建施工阶段支护结构自动化监测与控制
Features
Key product features
- Integrated equipment structure combining steel box, hydraulic station, hydraulic cylinder and control system
- PID-based closed-loop control for steel strut axial force
- Ball-head top cap adapts to the contact surface and improves contact stability
- Shaft-end system includes self-locking components such as a retaining nut to reduce abnormal pressure risks
- Supports active control of single-strut axial force and decoupled multi-strut control concepts
- Can regulate axial force based on deformation monitoring data and construction conditions
- 一体化设备结构，集成钢套箱、液压站、执行油缸和控制系统
- 基于PID控制器实现钢支撑轴力闭环控制
- 球头顶盖可适应接触面状态，提高贴合稳定性
- 轴端系统设置止退螺母等自锁部件，降低油压异常风险
- 支持单道支撑轴力主动调控及多道支撑轴力解耦控制思路
- 可结合变形监测数据和施工工况进行轴力调控
Offering Details
Technical Details & Applications

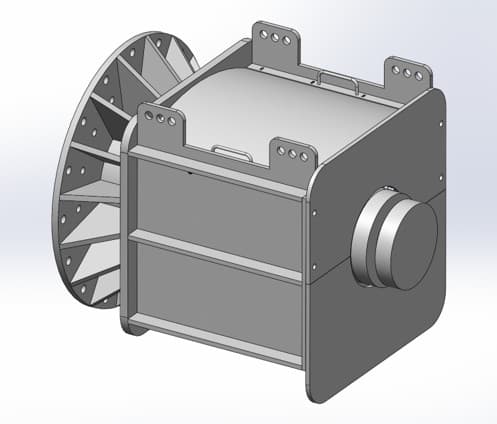

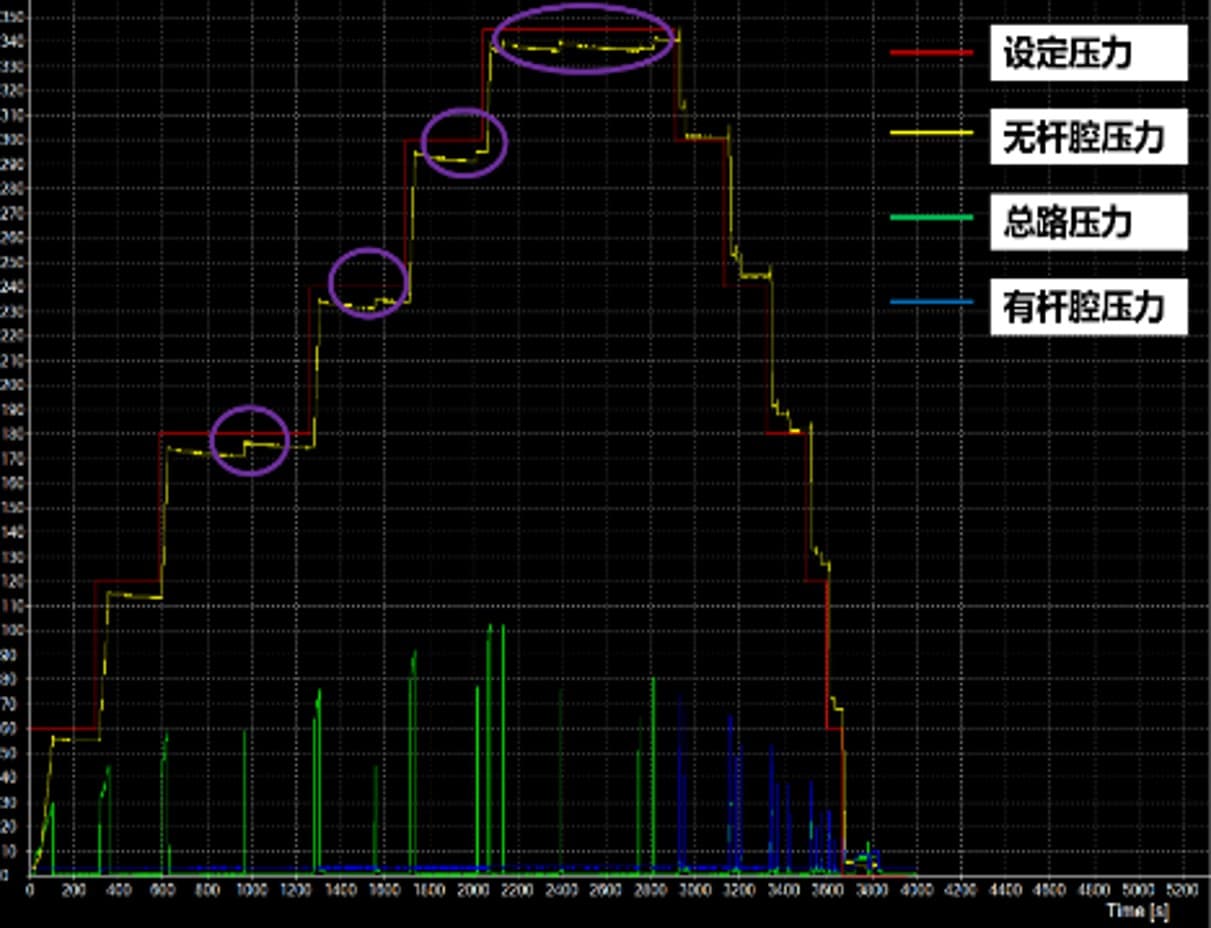

- The equipment mainly consists of six parts: steel box, hydraulic station, PID control system, hydraulic cylinder, ball-head top cap and shaft-end system. The steel box uses Q235 steel and is equipped with lifting points, mounting plates, mud shields and protective plates. The hydraulic system uses an integrated valve block for oil-circuit control. The hydraulic cylinder has a 200 mm stroke and 500 t thrust capacity. The ball-head top cap can adapt to wall-surface conditions and improve contact stability.
- The key parameters include 800 W power, dimensions of 1000 × 870 × 950 mm, weight of approximately 2000 kg and maximum flow of 2 L/min.
技术说明与应用案例
- 设备主要由钢套箱、液压站、PID控制系统、油缸、球头顶盖和轴端系统六大部分组成。钢套箱采用Q235钢并配套吊装点、安装板、防泥板和护板；液压系统采用集成阀块调整油路；油缸为高压缸，行程200mm，推力500T；球头顶盖可根据墙面状态调整并提高贴合稳定性。
- 主要参数包括：功率800W，外形尺寸1000×870×950mm，重量约2000kg，最大流量2L/min。
Related Products & Solutions
关联产品与解决方案
Automatically selected based on supplier, category, keywords and offering type.
EQUIPMENT

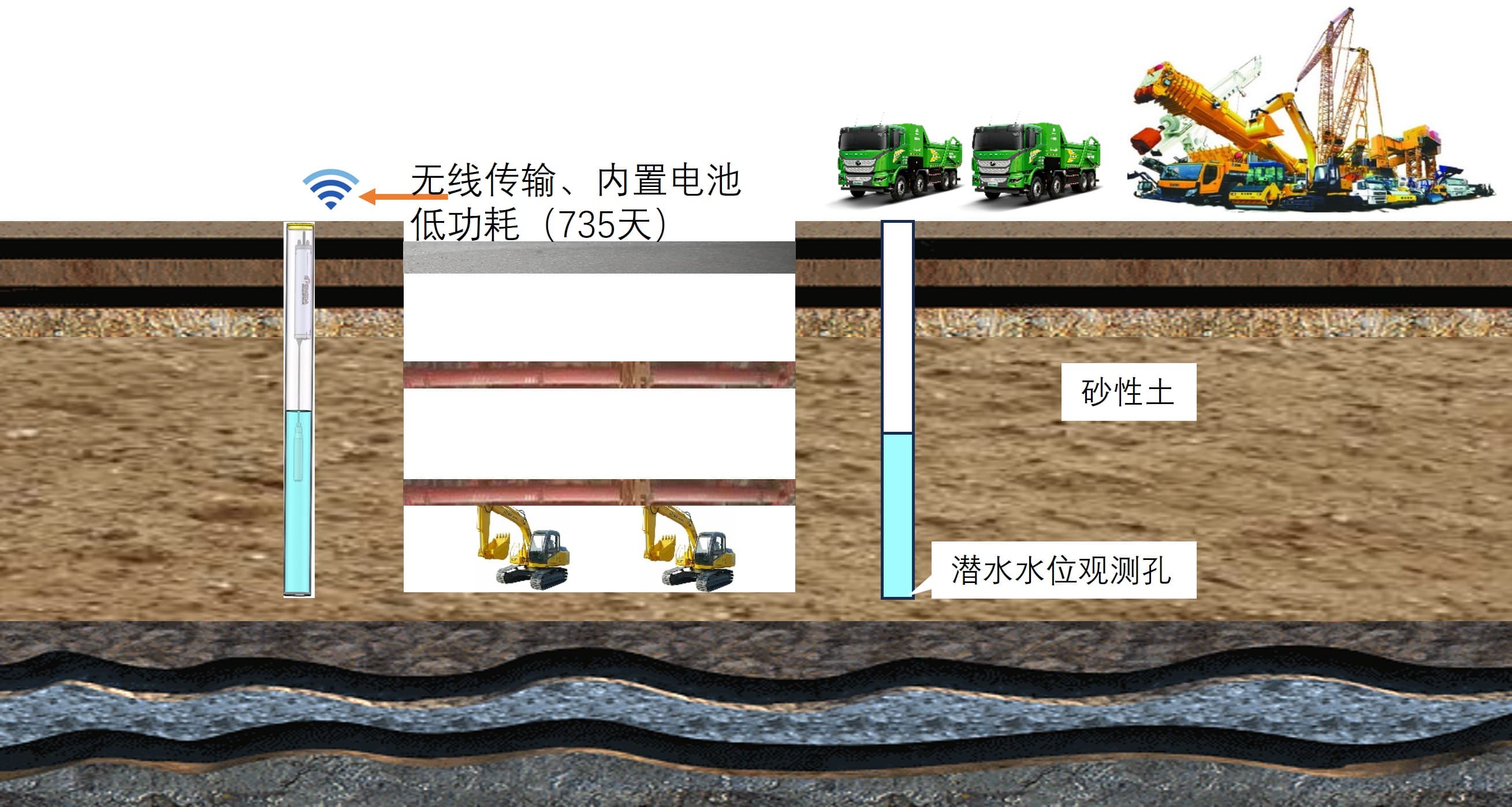

Smart Water Level Gauge
