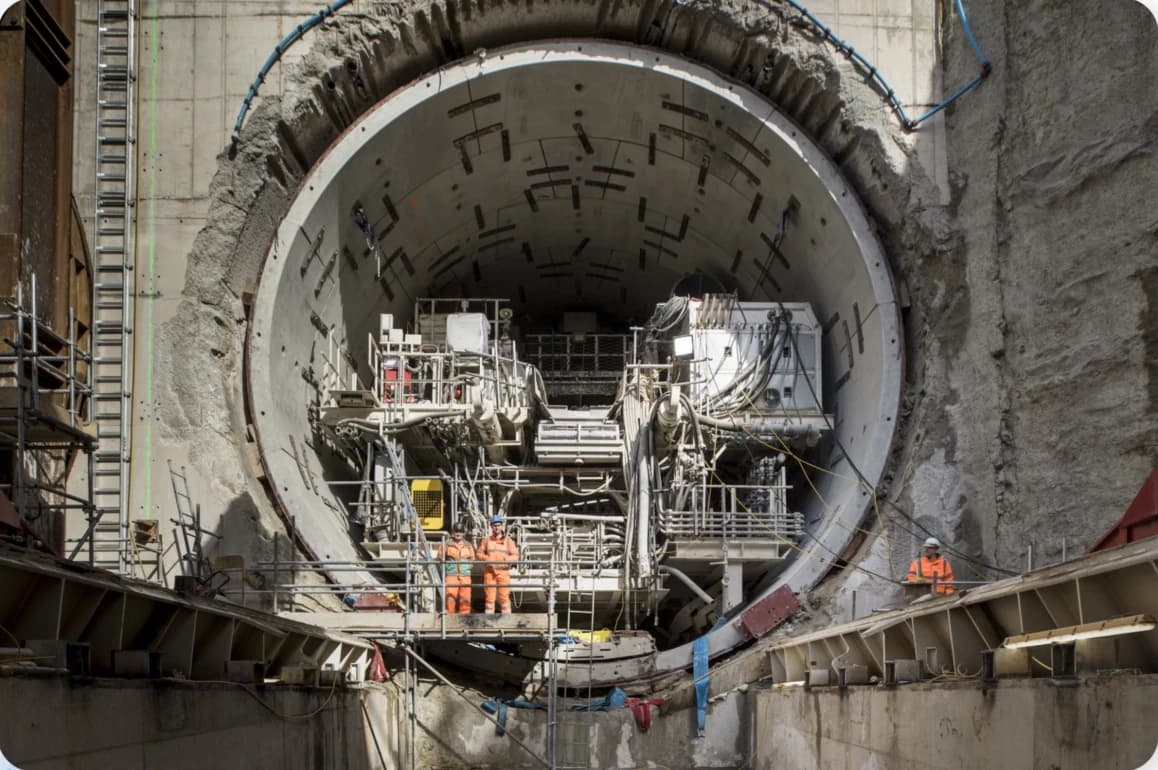

Tunnel construction site supported by the Tunnel & TBM Data Management System (TDMS).
Engineering Service
Tunnel & TBM Data Management System (TDMS)
隧道与盾构/TBM数据管理系统（TDMS）

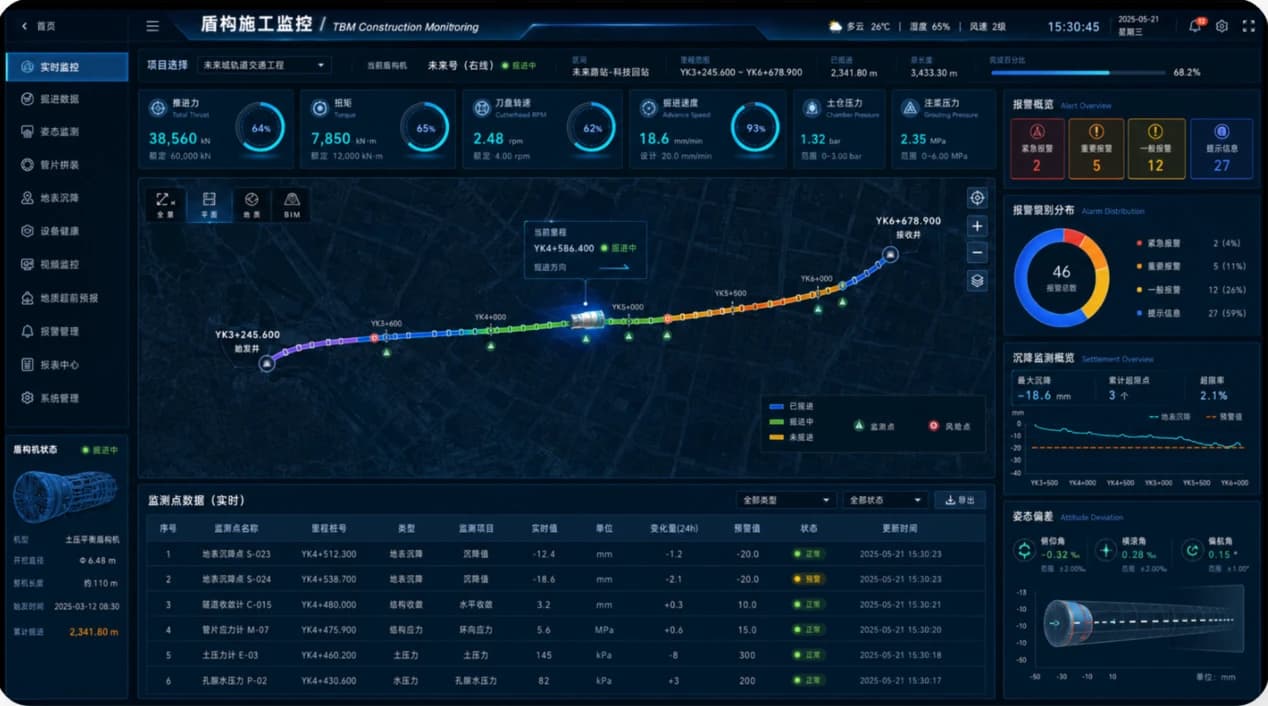

A Tunnel Data Management System (TDMS) for shield and TBM construction, integrating TBM PLC data, monitoring instruments, surveying, geology, video, and project records to manage tunnelling parameters, alignment, progress, safety, quality, surrounding-environment monitoring, and risk in real time.
面向盾构与TBM施工的隧道数据管理系统（TDMS），统一整合盾构PLC数据、监测仪器、测量、地质、视频及项目记录，对掘进参数、姿态、进度、安全、质量、周边环境监测及风险进行实时管理。
Supplied by Hong Kong Dingyi Co., Ltd.
Overview
Service overview
Dingyi TDMS supports full-process digital management of shield and TBM construction. Standardized TBM data acquisition, real-time parameter monitoring, configurable alerts, productivity analysis, quality-issue management, historical replay, and role-based project views provide a common information base for owners, contractors, supervisors, and monitoring teams. It can be deployed for a single project or expanded to multi-contract, multi-machine tunnel programs.
顶逸TDMS面向盾构与TBM施工全过程，通过标准化盾构数据采集、实时参数监控、可配置预警、工效分析、质量问题管理、历史回放及按角色配置的项目视图，为业主、施工、监理和监测单位提供统一信息基础。系统既可用于单一项目，也可扩展至多标段、多设备的隧道工程集中管理。
Scope
Service scope
Key components that may be provided for relevant engineering scenarios.
- Requirements analysis, data-source assessment, interface configuration, system deployment, joint testing, training, and handover
- OPC, file, and database interfaces for TBM PLCs, instruments, monitoring systems, video streams, and manual records

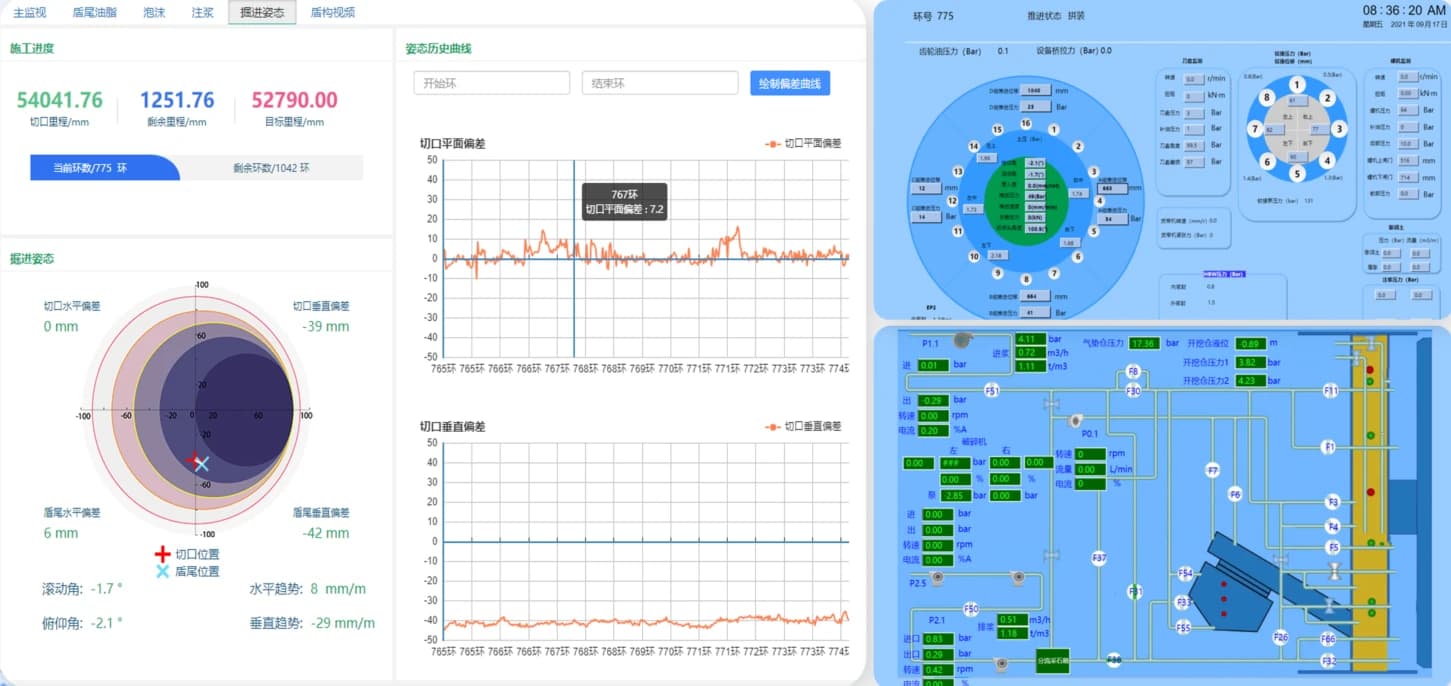

- Remote monitoring of cutterhead, thrust, grouting, tail-seal grease, alignment, guidance, and related tunnelling parameters

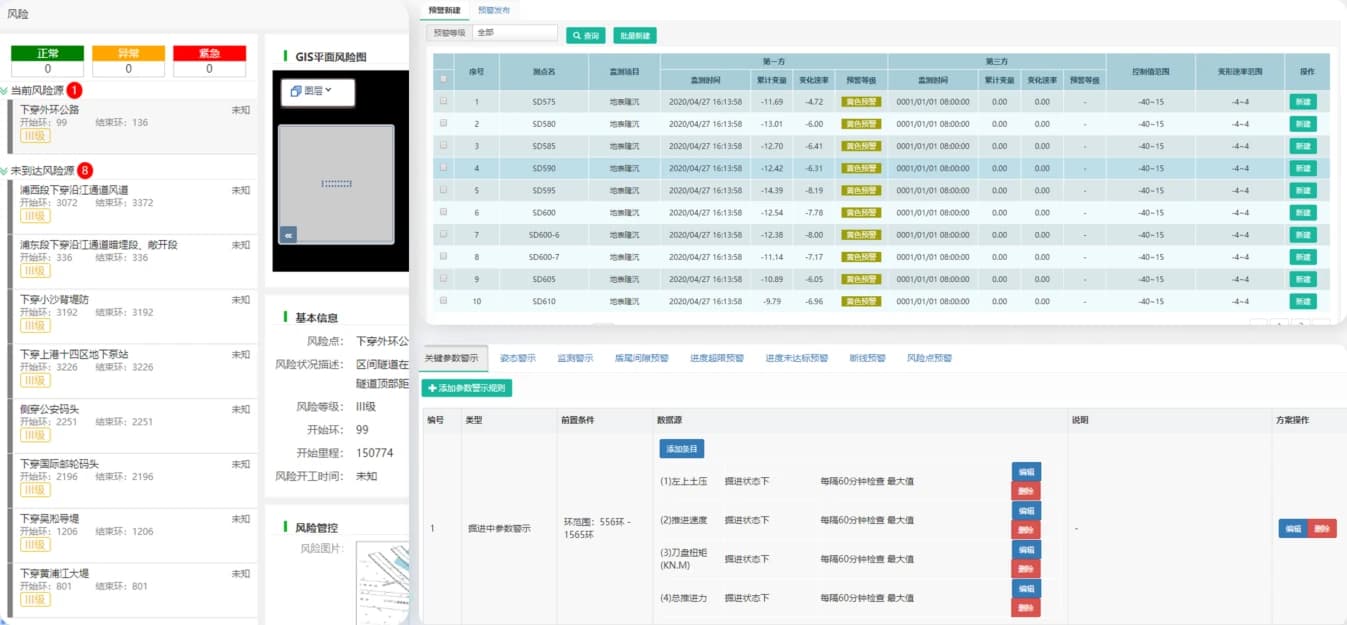

- Tiered rules for construction parameters, alignment, progress, risk points, connectivity, and monitoring data

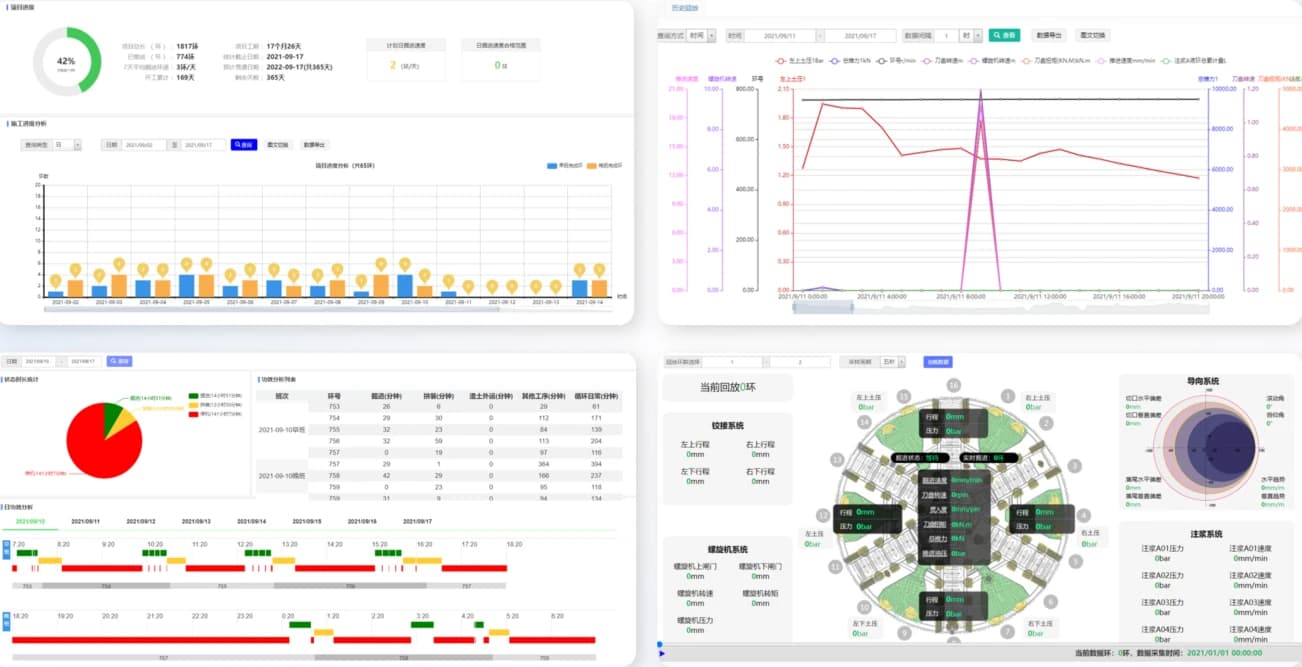

- Daily, weekly, and monthly progress statistics, plan-versus-actual comparison, and productivity analysis by ring, shift, and process
- Quality management for segment cracking, steps, leakage, and damage, with historical replay and cause tracing
- Data integration for earth-pressure-balance, slurry-balance, and open-mode TBMs
- 提供需求分析、数据源评估、接口配置、系统部署、联调测试、培训及移交
- 通过OPC、文件和数据库接口接入盾构PLC、仪器、监测系统、视频流及人工记录
- 远程监控刀盘、推进、注浆、盾尾油脂、姿态、导向及相关掘进参数
- 对施工参数、姿态、进度、风险点、断线及监测数据配置分级规则
- 统计日、周、月进度，比较计划与实际，并按环号、班组和工序开展工效分析
- 管理管片开裂、错台、渗漏水和破损，支持历史回放与原因追踪
- 支持土压平衡、泥水平衡及敞开式TBM数据接入
Scenarios
Applicable project scenarios
Typical project conditions where this offering may be relevant.
- Metro shield sections and station-to-station tunnels
- Railway and intercity railway tunnels
- Highway, water-conveyance, wastewater, power, and utility tunnels
- Multi-contract and multi-machine construction programs
- Owner-, contractor-, or project-level tunnel/TBM digital management centers
- 地铁盾构区间及站间隧道
- 铁路与城际铁路隧道
- 公路、引水、污水、电力及综合管廊隧道
- 多标段、多设备施工项目
- 业主、施工单位或项目级隧道/盾构数字化管理中心
Offering Details
Technical Details & Applications
Technical and Delivery Details
-
The solution acquires TBM data through standardized interfaces and combines it with geology, surveying, environmental monitoring, video, and project records.
-
Reconnect, retransmission, and encrypted-transfer mechanisms reduce the effect of unstable site networks.
-
Alert channels can include SMS, email, system messages, and locally configured messaging channels, with records of responsibility, response, and review.
-
Progress and productivity functions compare actual and planned advance and relate ring number, shift, process, and key tunnelling parameters.
-
Quality functions record segment cracking, misalignment steps, leakage, damage, and related follow-up; historical replay and parameter curves support review and cause analysis.
-
Project implementation can include interface assessment, data mapping, system configuration, project dashboards, workflow and permission configuration, testing, training, and handover.
Typical Applications
-
Centralized monitoring and control of one or multiple TBMs across one or more contract sections.
-
Construction safety, quality, progress, and surrounding-environment coordination.
-
Historical review of tunnelling parameters, alerts, productivity, and quality events.
Selected Projects
-
Shenzhen Metro Engineering Digital Management Center: integrated digital management of worksite information, progress, safety monitoring, and project visualization.
-
TBM Construction Control Platform for the Municipal Engineering Company of China Railway 18th Bureau Group: centralized tunnelling data, progress, safety, and construction-control functions.
-
Smart Shield Construction Platform for China Construction Eighth Engineering Division: digital management of shield construction, monitoring, progress, and quality information.
技术说明与应用案例
技术与交付说明
-
解决方案通过标准化接口采集盾构数据，并与地质、测量、周边环境监测、视频及项目记录结合。
-
采用断线重连、数据补传和加密传输，降低现场网络不稳定的影响。
-
预警可通过短信、邮件、系统消息及本地配置的信息渠道发送，并记录责任、处置和复盘过程。
-
进度与工效功能比较实际和计划掘进，并关联环号、班组、工序及关键掘进参数。
-
质量功能记录管片开裂、错台、渗漏水、破损及后续处理；历史回放与参数曲线支持复盘和原因分析。
-
项目实施可包括接口评估、数据映射、系统配置、项目看板、流程与权限配置、测试、培训及移交。
典型应用
-
单台或多台盾构、单标段或多标段集中监控。
-
施工安全、质量、进度及周边环境协同管理。
-
掘进参数、预警、工效及质量事件历史复盘。
代表项目
-
深圳地铁“工程数字化管理中心”：综合管理工点信息、进度、安全监控及项目可视化。
-
中铁十八局集团市政公司盾构施工管控平台：集中管理掘进数据、进度、安全及施工管控。
-
中建八局盾构智慧施工平台：对盾构施工、监测、进度及质量信息进行数字化管理。
Related Products & Solutions
关联产品与解决方案
Automatically selected based on supplier, category, keywords and offering type.
SYSTEMS

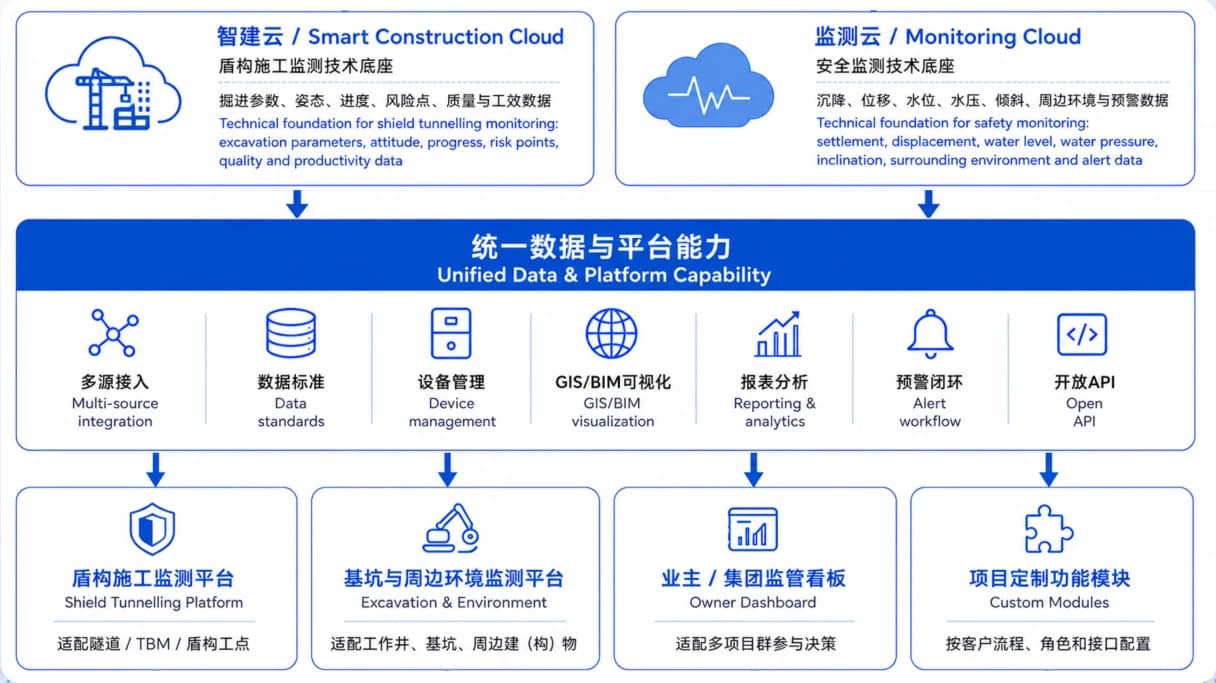

Integrated Monitoring Management Platform
