Automated Geotechnical Monitoring Instruments & Sensors

Hardware Portfolio & Connectivity

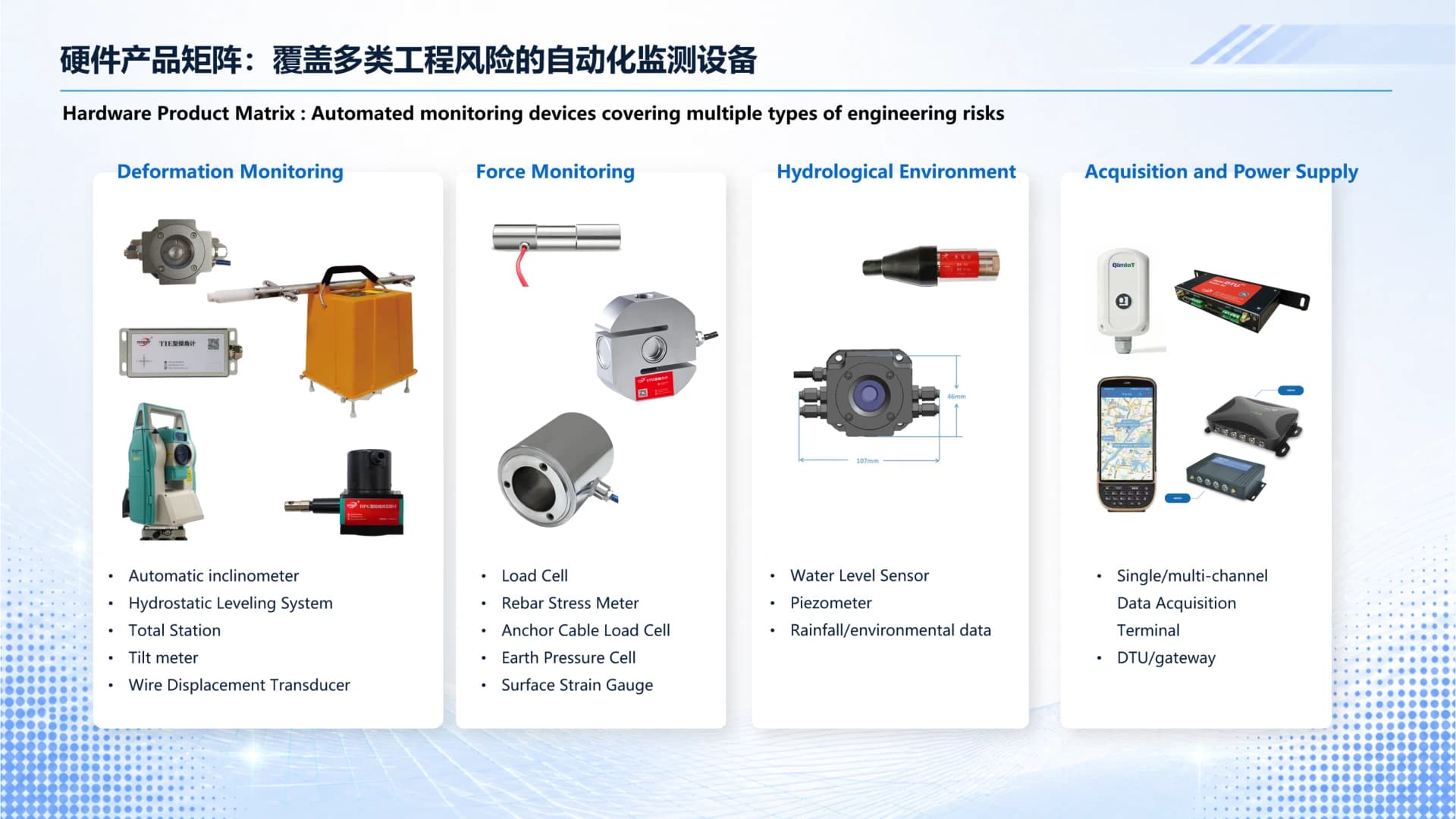

• Monitoring instruments: automated inclinometers / inclinometer robots, robotic total stations, hydrostatic levels, tiltmeters, displacement sensors, crack meters, vibration monitors, and layered settlement instruments.

• Geotechnical and structural sensors: anchor and axial load cells, earth-pressure cells, rebar stress meters, strain gauges, piezometers, water-level sensors, rainfall stations, and related sensors.

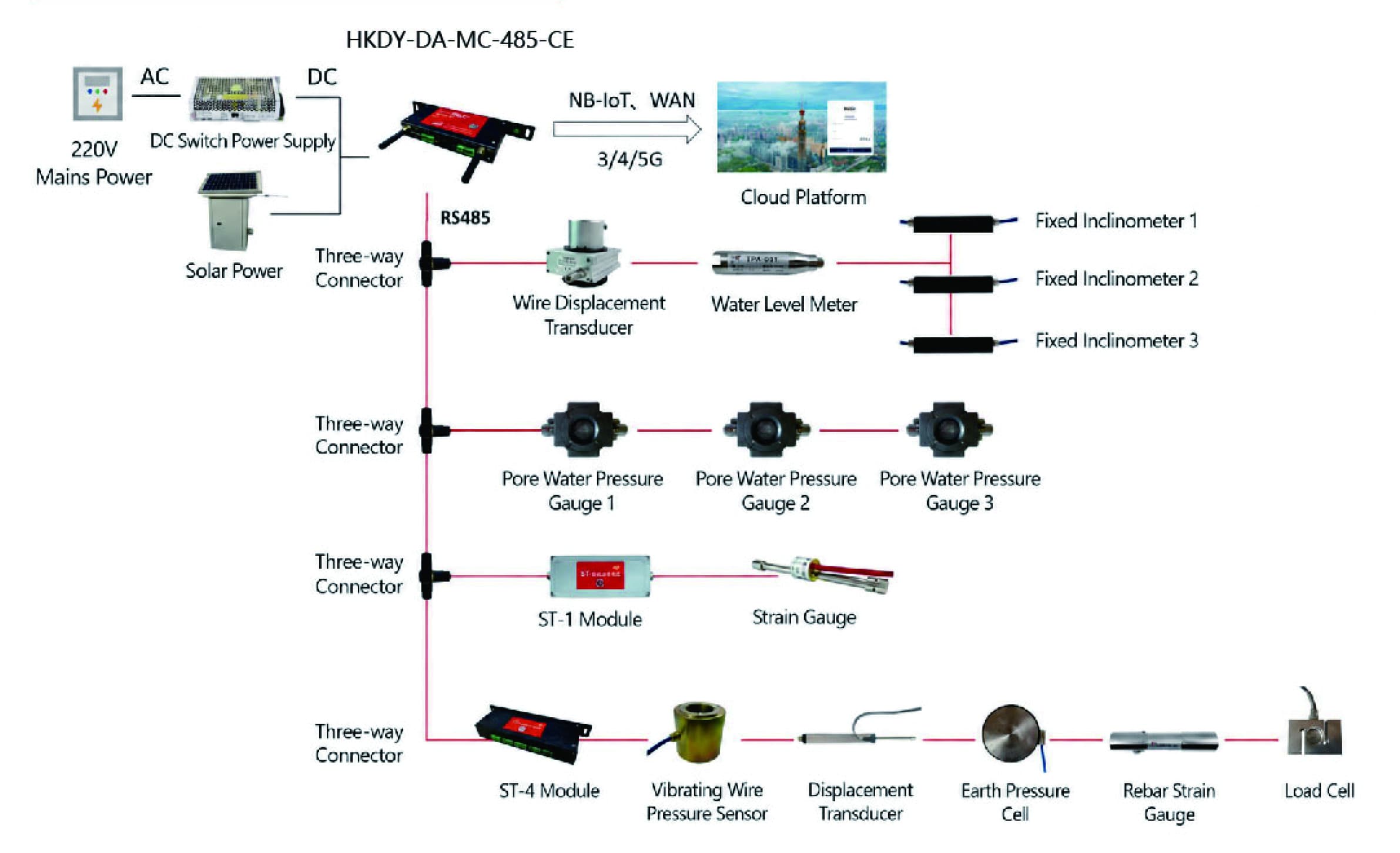

• Data acquisition hardware: vibrating-wire modules, multi-channel RS485 terminals, 4G / NB-IoT IoT terminals, edge gateways, and smart field terminals with local caching and retransmission support.

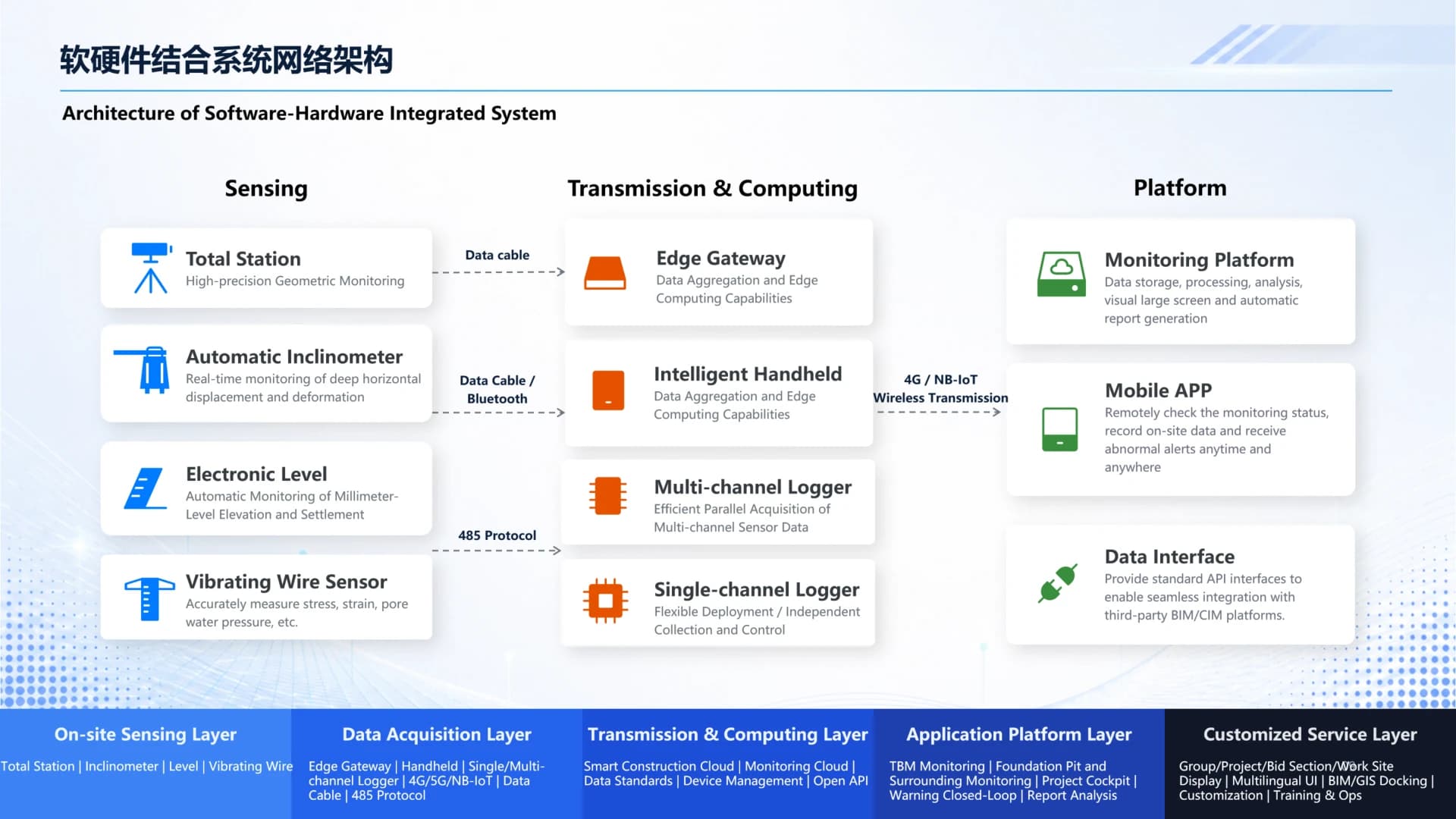

• Connectivity: RS232, RS485, 4G, Wi-Fi, Ethernet, NB-IoT, LoRa, and standard interfaces for connection to Dingyi or third-party monitoring platforms.

Typical Configurable Monitoring Components

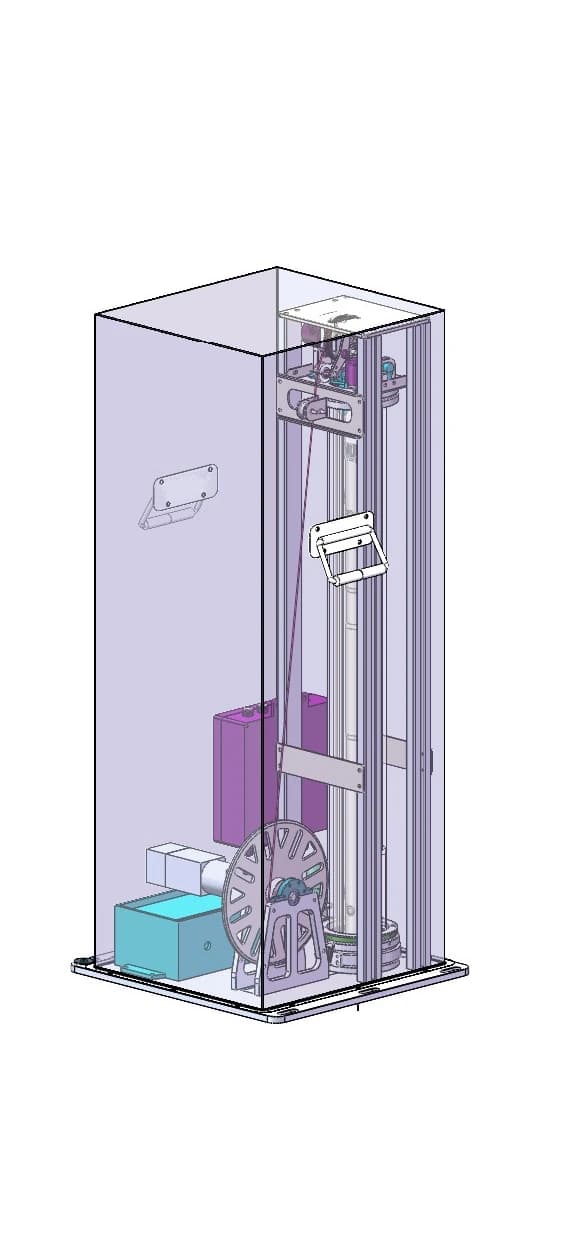

• Automated inclinometer / inclinometer robot: FC-BX-YT-HX3A series for 50 m and 100 m applications; FC-L-YT-HX1A series configurable for 50 m, 80 m, 120 m, 200 m, and 320 m monitoring depths. Products support integrated measurement of automatic inclination and stratified settlement.

• TS10 servo-driven total station: automatic prism search and aiming, up to 6,000 m with long-range prism and 1,000 m reflectorless measurement, with fast continuous/tracking measurement for automated survey monitoring.

• Deformation monitoring instruments include laser and wire displacement sensors, crack meters, hydrostatic levels, tiltmeters, vibration monitors, wireless combined tilt/displacement devices, and layered settlement meters.

• Load, stress, and strain sensors include anchor cable load cells, axial-force load cells (up to 4,000 kN), earth-pressure cells, rebar stress meters, and surface strain gauges for structural and geotechnical monitoring.

• Hydro-environmental sensors include rainfall stations, NB-IoT and RS485 water-level sensors, and piezometers, with IP67/IP68 protection on selected models for long-term field deployment.

• HKDY-DA-GW-MP-CE edge monitoring gateway supports major survey instrument brands including Leica, Topcon, Sokkia, Trimble, South, Stonex, CHCNAV, and Su Yiguang, integrating communications, storage, control, edge processing, and local caching.

• HKDY-DA-HB-DEV-CE smart observation handbook supports mainstream robotic total stations, digital levels, and vibrating-wire sensors for field data collection and monitoring operations.

• Data acquisition options include one-, four-, and eight-channel vibrating-wire modules, multi-channel RS485 acquisition, and 4G/NB-IoT IoT terminals for centralized or distributed automated monitoring.

Implementation and Typical Applications

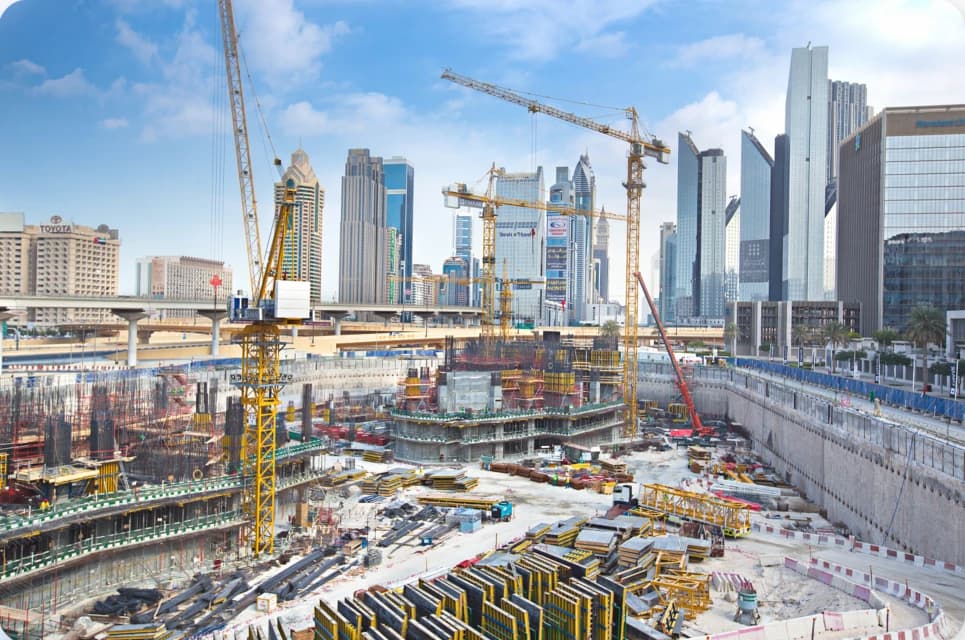

• Deep-excavation and shield-shaft solutions can integrate retaining-wall deformation, deep horizontal displacement, ground and building settlement, pipeline movement, strut and anchor loads, groundwater level, and pore pressure.

• Tunnel, railway, bridge, building, and pipeline solutions can combine settlement, alignment, crack, tilt, vibration, displacement, stress, and strain monitoring.

• Slope, embankment, dam, reservoir, and tailings-facility solutions can combine deformation, soil pressure, groundwater, pore pressure, seepage, and rainfall monitoring.

• Distributed monitoring points can use local caching, breakpoint retransmission, electrical isolation, software and hardware watchdogs, and remote configuration where power supply or network connectivity is intermittent.

• Automated measurements can be combined with mobile inspection, manual monitoring, photographs, video, and construction-condition records on the same project data chain.
