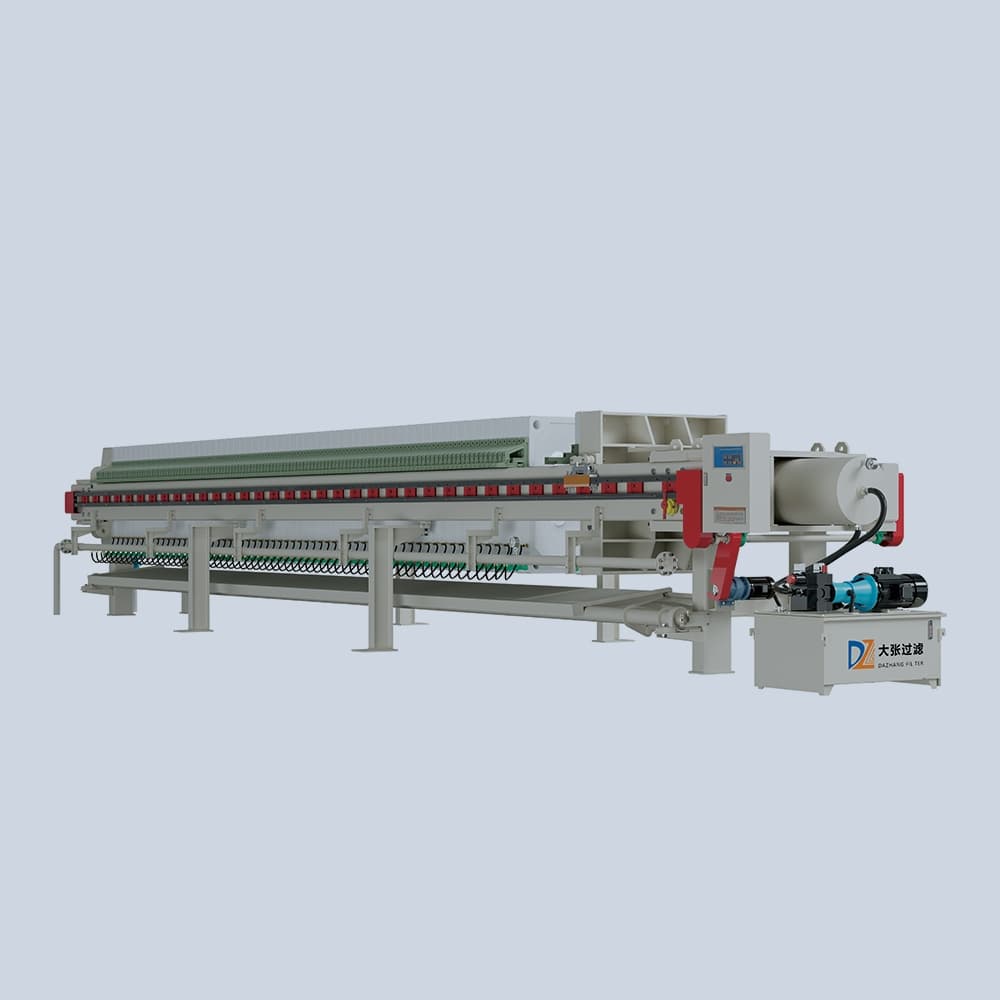

High-Pressure Program-Controlled Membrane Filter Press
程控自动高压隔膜压榨压滤机
A high-pressure membrane filter press designed for efficient solid-liquid separation and deep dewatering, using membrane squeezing technology to improve production efficiency and reduce filter cake moisture content.
一种用于高效固液分离和深度脱水的高压隔膜压滤设备，通过隔膜压榨技术提升生产效率并降低滤饼含水率。
Supplied by Shanghai Dazhang Filtration Equipment Co., Ltd.
Overview
Service overview
The High-Pressure Program-Controlled Membrane Filter Press is designed for demanding solid-liquid separation applications where lower moisture content, higher filtration efficiency, and automated operation are required.
The system uses membrane squeezing technology to form a variable filter chamber. After the initial filtration stage, water pressure or compressed air can be applied to the membrane to further squeeze the filter cake, helping reduce moisture content and improve dewatering performance. The squeezing pressure can reach approximately 0.8–2.0 MPa depending on configuration and process requirements.
This equipment is suitable for chemical processing, pharmaceuticals, mining, sludge dewatering, and other industrial applications. Compared with conventional dewatering equipment, it can help reduce filter cake volume and weight, improve operating efficiency, and support downstream disposal or treatment requirements. The system can be configured with automatic operation, online filter cloth washing, electric valves, and instrumentation to reduce manual intervention and support unattended operation.
程控自动高压隔膜压榨压滤机适用于对低含水率、高过滤效率和自动化运行有较高要求的固液分离工况。
设备采用隔膜压榨技术形成可变滤室。初步过滤完成后，可通过水压或压缩空气对隔膜进行二次压榨，进一步降低滤饼含水率，提高脱水效果。根据设备配置和工艺要求，压榨压力可达约0.8–2.0 MPa。
该设备适用于化工、制药、矿山、污泥脱水等工业应用场景。相比传统脱水设备，其有助于减少滤饼体积和重量，提高运行效率，并满足后续处置或处理要求。整机可配置自动化运行、滤布在线冲洗、电控阀门及仪表系统，减少人工干预并支持无人值守运行。
Scope
Service scope
Key components that may be provided for relevant engineering scenarios.
- TPE membrane squeezing technology
- Variable filter chamber design
- Water pressure or compressed air squeezing
- High-pressure deep dewatering performance
- Automatic operation configuration
- Online filter cloth washing option
- Electric valve and instrumentation integration
- Reduced manual intervention
- TPE隔膜压榨技术
- 可变滤室设计
- 支持水压或压缩空气压榨
- 具备高压深度脱水能力
- 可配置自动化运行系统
- 可配置滤布在线冲洗装置
- 可集成电控阀门及仪表系统
- 减少人工干预
Scenarios
Applicable project scenarios
Typical project conditions where this offering may be relevant.
- Chemical processing
- Pharmaceutical production
- Mining and mineral processing
- Industrial sludge dewatering
- Municipal sludge treatment
- Solid-liquid separation processes requiring lower filter cake moisture content
- 化工生产
- 制药行业
- 矿山及矿物加工
- 工业污泥脱水
- 市政污泥处理
- 对滤饼含水率要求较低的固液分离工艺
Technical Information
Technical parameters
- Equipment type: High-pressure membrane filter press.
- Squeezing method: Water pressure or compressed air.
- Membrane technology: TPE membrane.
- Squeezing pressure: Approximately 0.8–2.0 MPa depending on configuration and process requirements.
- Operation mode: Program-controlled automatic operation.
- Optional systems: Online filter cloth washing system, electric valves, instrumentation, and automatic control system.
技术参数
- 设备类型：高压隔膜压榨压滤机。
- 压榨方式：水压或压缩空气压榨。
- 隔膜技术：TPE隔膜。
- 压榨压力：根据设备配置和工艺要求，约0.8–2.0 MPa。
- 运行方式：程控自动化运行。
- 可选配置：滤布在线冲洗系统、电控阀门、仪表系统及自动控制系统。
