Elevated Filter Press

高架式压滤机

An elevated filter press designed with reserved lower space for conveyors, hoppers, or supporting equipment, enabling integrated filtration, cake discharge, and transport operations.

一种采用高位机架设计的压滤设备，可在下部预留输送、储料或配套设备空间，实现过滤、卸料和运输一体化作业。

Supplied by Shanghai Dazhang Filtration Equipment Co., Ltd.

View Supplier Profile

Overview

Service overview

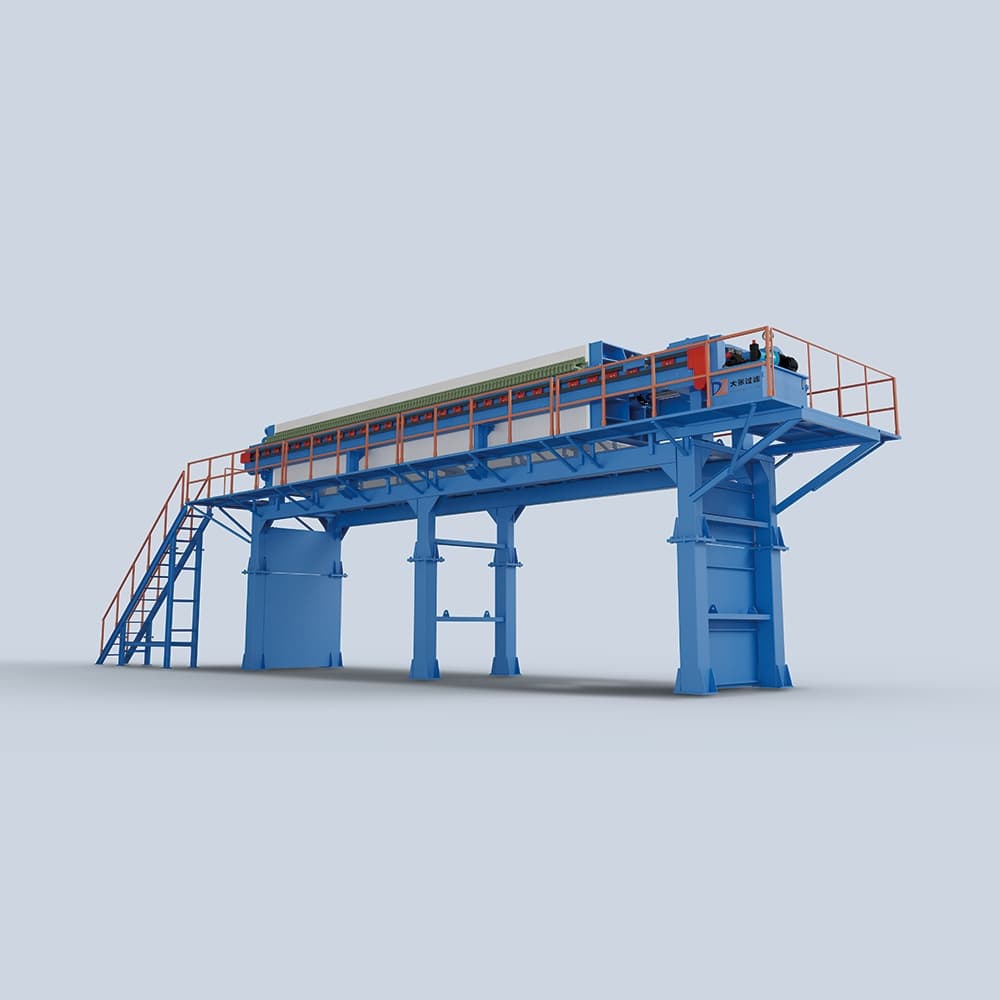

The Elevated Filter Press is a solid-liquid separation system designed with a raised frame structure. The main filter press body is elevated to reserve space beneath the equipment for conveyors, storage hoppers, mud receiving devices, or other supporting systems.

This layout supports an integrated process of filtration, cake discharge, and material transport. It can reduce manual handling, improve process continuity, and enhance site operation efficiency.

The equipment is suitable for sludge dewatering, river dredging, mining tailings treatment, construction slurry treatment, and other applications where filter cake discharge and conveying arrangements are important to overall project efficiency.

高架式压滤机是一种采用高位机架设计的固液分离设备。设备主体架高后，可在底部预留空间布置输送带、储泥斗、接泥装置或其他配套设备。

该布置方式可实现过滤、卸料和运输的一体化作业，减少人工转运，提高工艺连续性和现场运行效率。

该设备适用于污泥脱水、河道清淤、矿山尾矿处理、建筑泥浆处理等应用场景，特别适合对滤饼卸料和输送布置有较高要求的工程项目。

Scope

Service scope

Key components that may be provided for relevant engineering scenarios.

Elevated frame structure
Reserved lower space for supporting equipment
Convenient integration with conveyors or storage hoppers
Integrated filtration, cake discharge, and transport layout
Reduced manual handling
Improved process continuity
Suitable for large-volume sludge or slurry treatment
Efficient site operation layout

高位机架结构
底部预留配套设备空间
便于与输送带或储泥斗集成
实现过滤、卸料和运输一体化布置
减少人工转运
提高工艺连续性
适用于大体量污泥或泥浆处理
提升现场作业布置效率

Scenarios

Applicable project scenarios

Typical project conditions where this offering may be relevant.

Sludge dewatering
River dredging slurry treatment
Mining tailings treatment
Construction slurry treatment
Industrial wastewater sludge treatment
Projects requiring integrated filtration, cake discharge, and conveying
Sites requiring reserved lower space for hoppers or conveyors

污泥脱水
河道清淤泥浆处理
矿山尾矿处理
建筑泥浆处理
工业废水污泥处理
需要过滤、卸料和输送一体化的项目
需要在设备下部布置储泥斗或输送带的场地

Technical Information

Technical parameters

Equipment type: Elevated filter press.
Structural feature: Raised main frame with reserved lower space.
Supporting equipment: Conveyor belt, storage hopper, mud receiving device, or other auxiliary systems.
Process layout: Designed for integrated filtration, cake discharge, and material transport.
Customization: Frame height and supporting layout can be configured according to site requirements and discharge method.

技术参数

设备类型：高架式压滤机。
结构特点：主机架高，下部预留作业空间。
配套设备：可布置输送带、储泥斗、接泥装置或其他辅助系统。
工艺布置：适用于过滤、卸料和物料输送一体化流程。
定制方式：可根据现场条件和卸料方式配置机架高度及配套布置。
