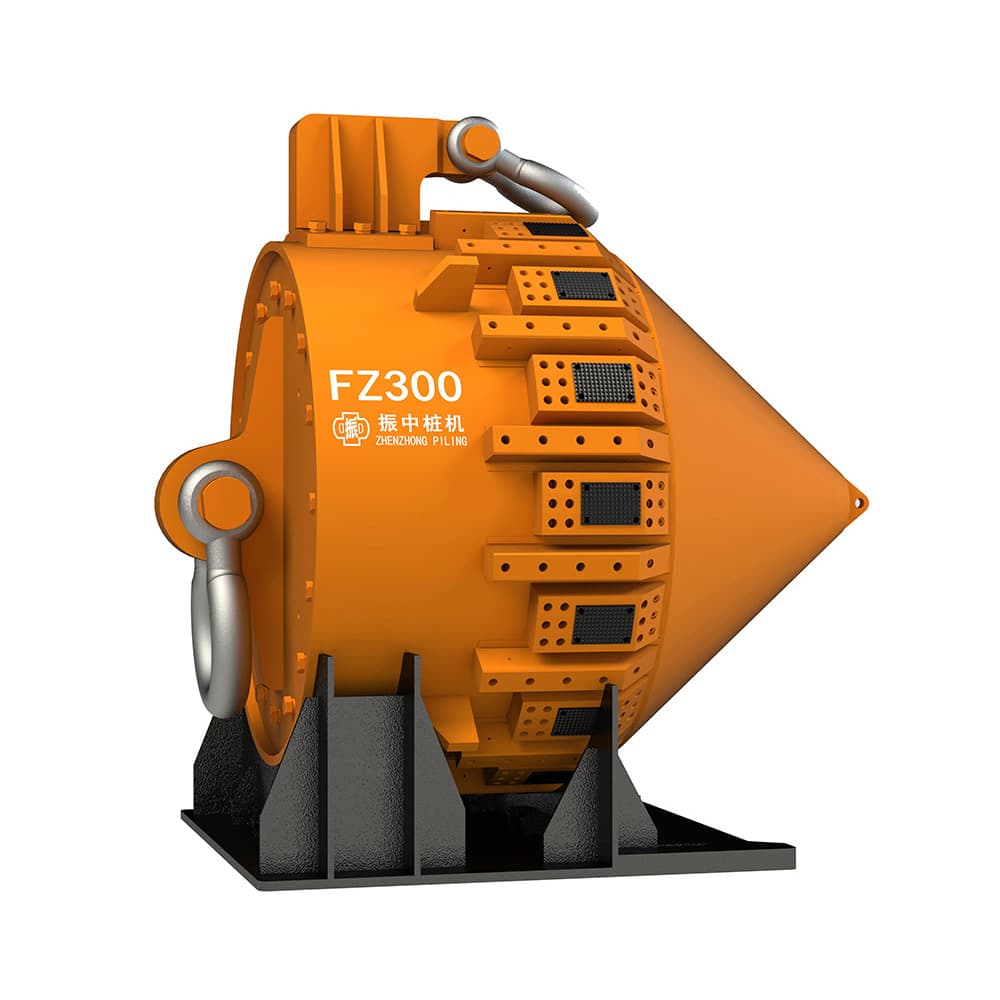

FZ300 Internal Lifting Tool for Large-Diameter Steel Pipe Piles
Product Offering
FZ Series Internal Lifting Tools for Large-Diameter Steel Pipe Piles
FZ 系列内撑式吊桩器
An internal gripping and lifting system for safe handling and feeding of large-diameter steel pipe piles without pre-welded lifting lugs.
通过钢管桩内壁夹持实现大型钢管桩安全起吊和喂桩，无需预焊吊耳，适用于海上风电及大型桩基础施工。

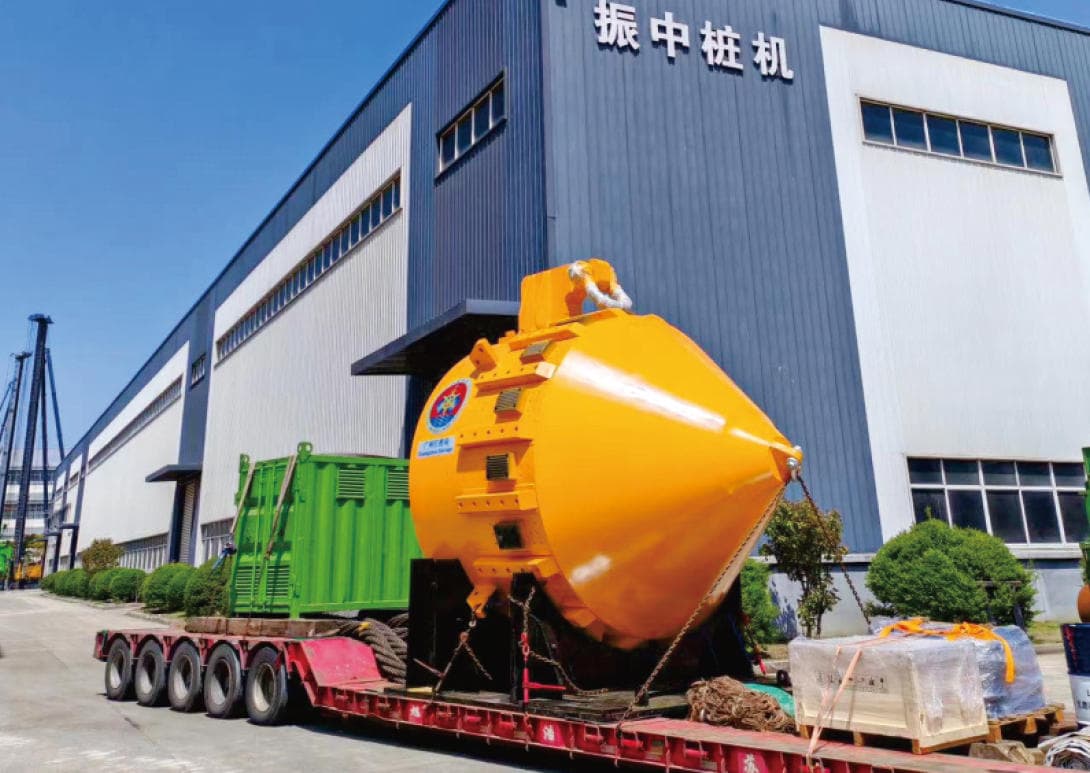

Supplied by Shanghai Zhenzhong Construction Machinery Technology Co., Ltd.
Overview
Product overview

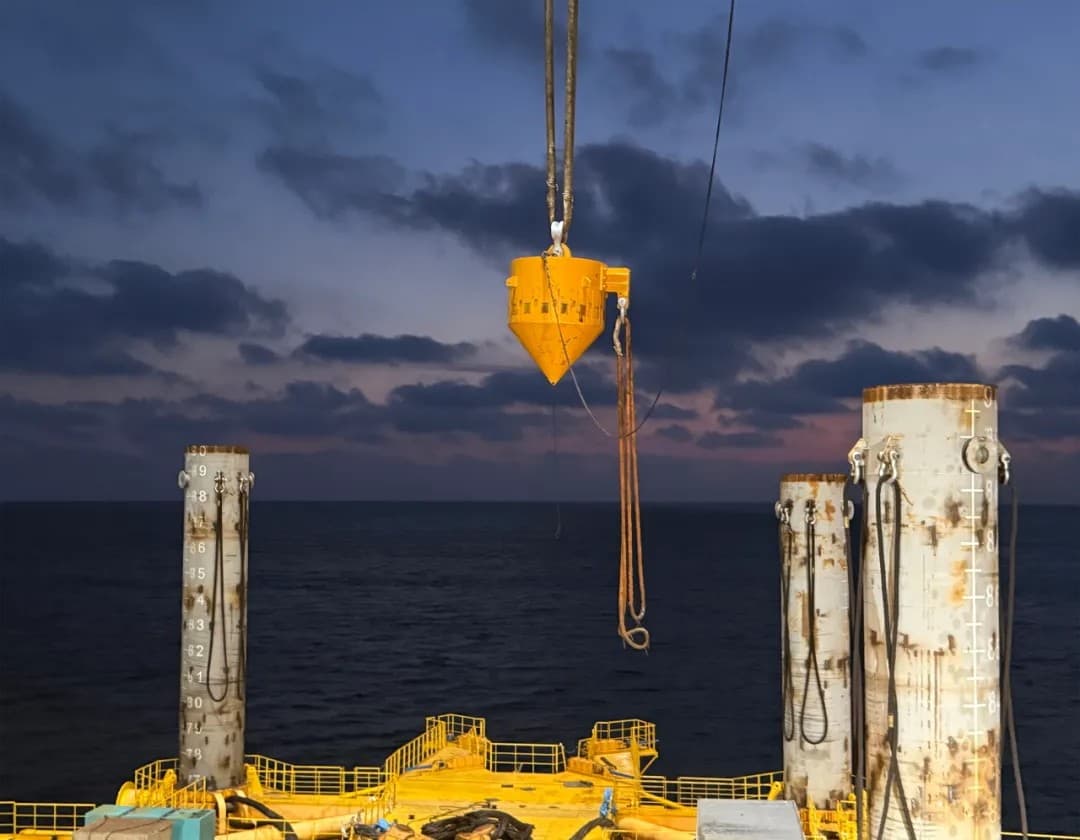

The FZ series is designed for lifting, handling, and feeding large-diameter steel pipe piles by gripping the internal wall of the pile. Mechanical self-locking and hydraulic pressure-retention mechanisms provide redundant safety and reduce the need to pre-weld, cut, and repair external lifting lugs.
A tapered long guide supports horizontal pile feeding and alignment, while the auxiliary lifting point and center-of-gravity arrangement improve stability. The system is intended for offshore wind monopiles, jacket auxiliary piles, and large steel pipe piles used in ports, bridges, and marine foundations.
FZ系列内撑式吊桩器用于大型钢管桩的起吊、转运和喂桩。设备从钢管桩内部形成夹持，通过机械自锁与液压保压锁等安全机制降低吊装过程中钢管桩脱离吊桩器的风险，并减少传统吊耳预焊、切除和后续处理工作。
吊桩器采用锥形长导向结构，便于水平喂桩和对中；辅助吊点与整机重心布置有利于保持姿态稳定。产品主要面向海上风电单桩、导管架基础辅助桩及港口、桥梁等大直径钢管桩施工。
Applications
Typical applications
- Offshore wind monopiles and jacket auxiliary piles
- Large-diameter steel pipe piles for ports, bridges, and marine works
- Horizontal feeding, vertical lifting, and alignment operations
- Projects seeking to avoid welded lifting lugs and cutting work
- 海上风电单桩和导管架辅助桩吊装
- 港口、桥梁和海洋工程大直径钢管桩
- 需要水平喂桩、垂直起吊和精确对中的施工
- 希望减少预焊吊耳及高空切割作业的项目
Features
Key product features
- Dual safety through mechanical self-locking and hydraulic pressure retention
- No pre-welded lifting lugs required
- Tapered long guide for horizontal pile feeding and alignment
- Stable handling through optimized lifting-point and center-of-gravity arrangement
- Compact design with model selection by pile diameter and lifting capacity
- 机械自锁与液压保压锁双重安全设计
- 无需预焊吊耳，提高施工便利性
- 锥形长导向，便于水平喂桩和对中
- 辅助吊点与重心布置提升吊装稳定性
- 结构紧凑，可按管径和吊重选择型号
Offering Details
Technical Details & Applications
Typical Models: FZ260, FZ300, FZ360; larger configurations available
Key Technical Range: Applicable internal pile diameter approximately 2,600–4,000 mm; applicable wall thickness approximately 40–80 mm; vertical safe lifting capacity approximately 400–500 t; maximum vertical lifting capacity approximately 1,000–1,250 t; horizontal safe lifting capacity approximately 200–250 t; hydraulic cylinder pressure 31.5 MPa; maximum clamping force approximately 1,100–1,375 t.
Representative Applications: Lifting, handling, and feeding of offshore wind monopiles, jacket auxiliary piles, and large-diameter steel pipe piles for ports, bridges, and marine works.
Engineering Support: Model selection and lifting-method matching are based on internal pile diameter, wall thickness, lifting capacity, pile orientation, and construction-vessel conditions.
技术说明与应用案例
典型型号： FZ260、FZ300、FZ360；可提供更大规格配置
主要技术范围： 适用钢管桩内径约2600–4000 mm；适用壁厚约40–80 mm；垂向安全吊重约400–500 t；垂向最大吊重约1000–1250 t；横向安全吊重约200–250 t；液压油缸压力31.5 MPa；最大夹紧力约1100–1375 t。
典型应用： 海上风电单桩、导管架辅助桩，以及港口、桥梁和海洋工程中的大直径钢管桩吊装、转运与喂桩。
工程支持： 根据管桩内径、壁厚、吊重、起吊姿态及施工船机条件进行型号选择和吊装方案匹配。
