Flexible Spiral Ventilation Ducts
柔性螺旋通风风筒
Flexible spiral ventilation ducts for tunnel and mine turning ventilation, designed for positive and negative pressure applications and flexible underground routing.
用于隧道和矿山转弯通风的柔性螺旋通风风筒，适用于正压和负压通风以及地下空间灵活布置。
Supplied by Sichuan Foresight Composite Materials Co., Ltd.
Overview
Product overview

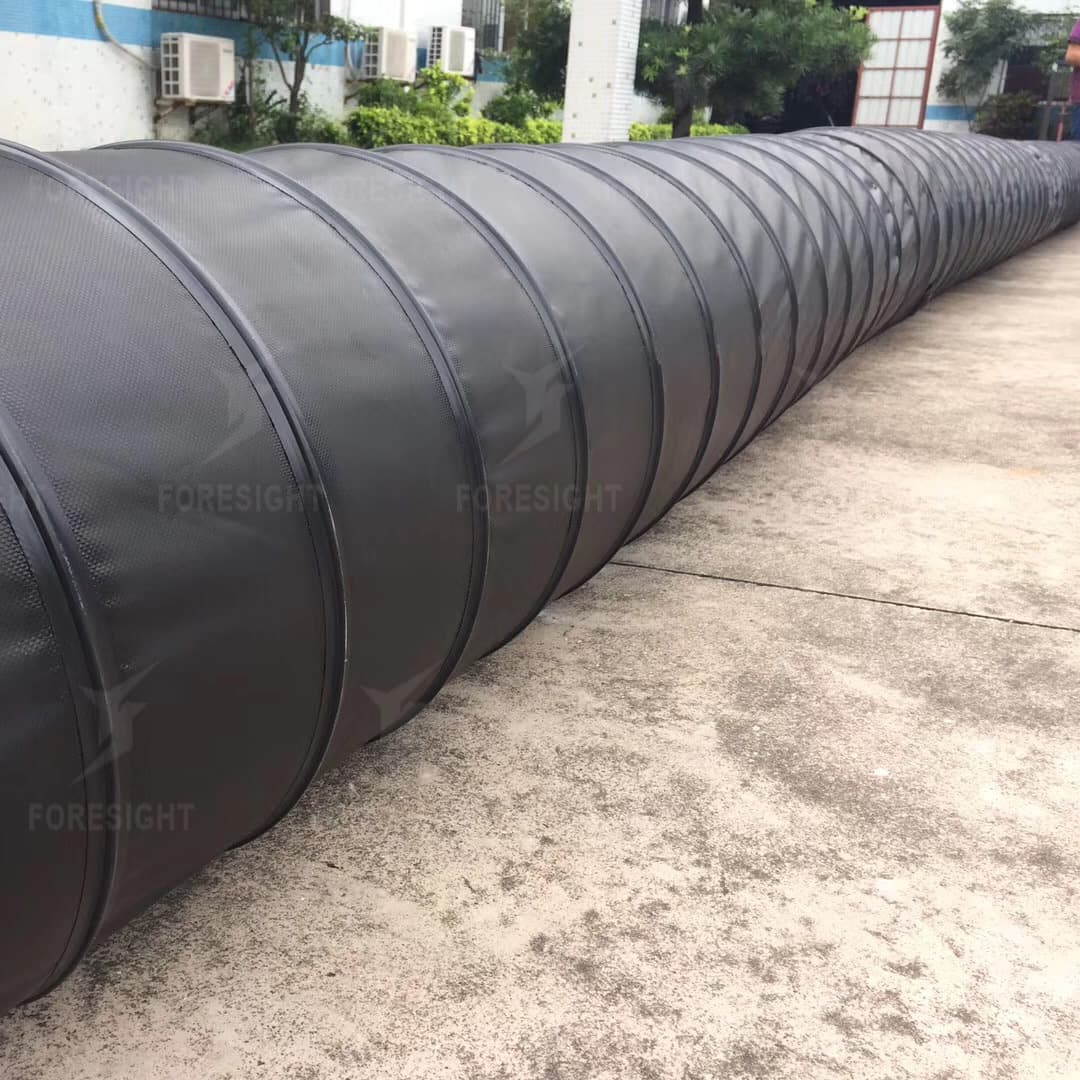

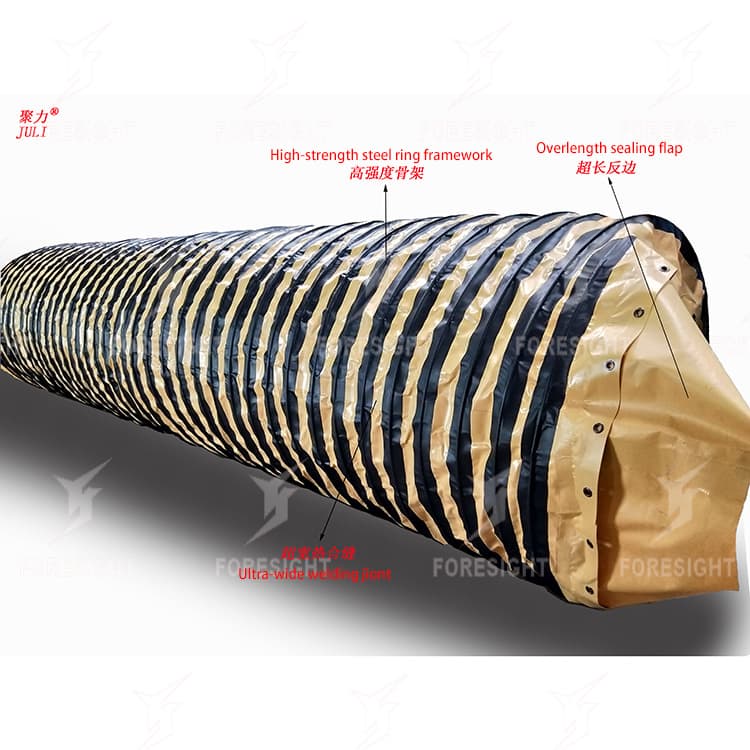

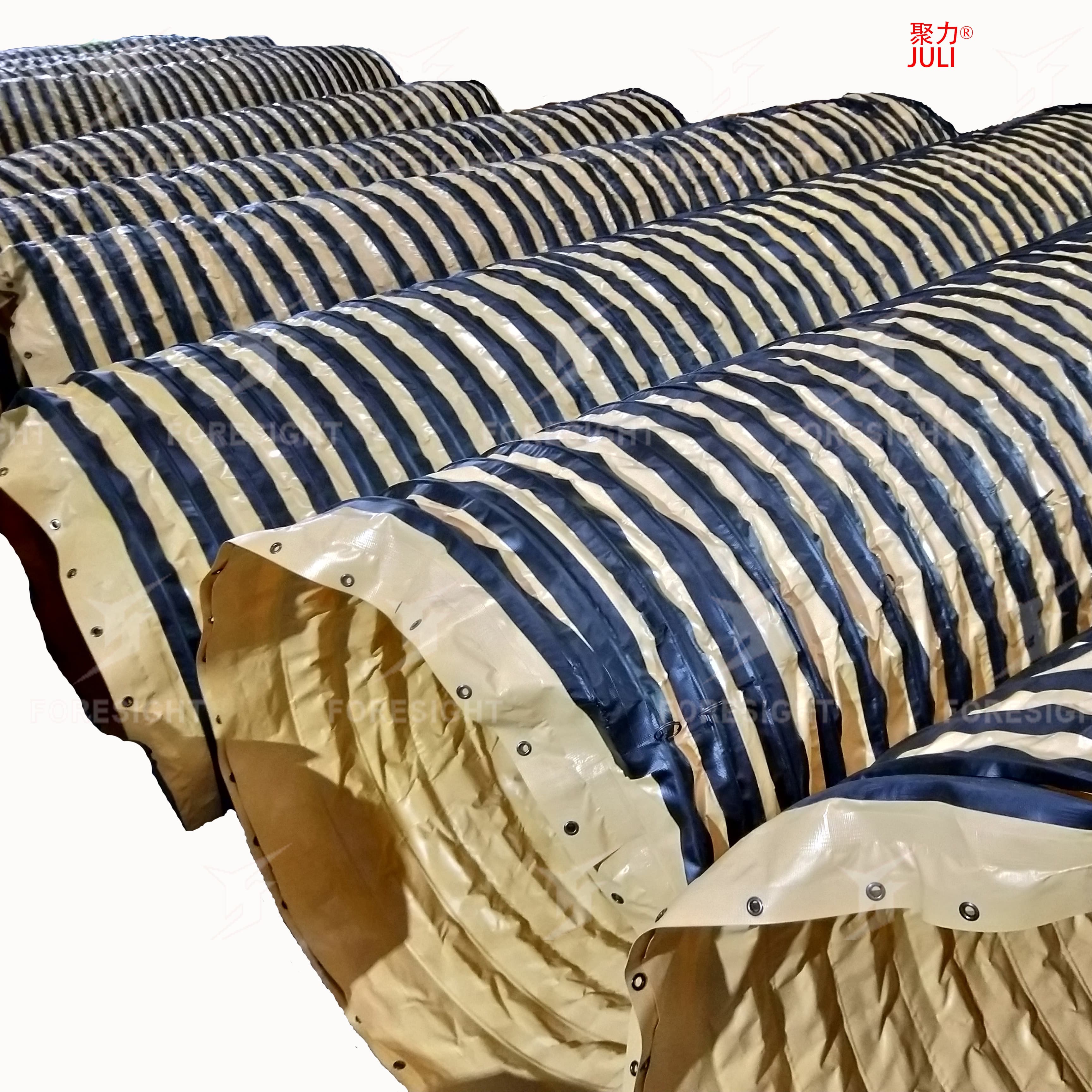

Foresight flexible spiral ventilation ducts are designed for tunnel and mine ventilation areas requiring turns, bends or flexible routing. The duct uses manganese steel wire with good elasticity as reinforced wire and is manufactured by specialized welding equipment to provide good appearance, folding performance and smooth stress distribution during ventilation.
The product can be used under positive pressure for air blowing and can also support underground ventilation layouts requiring flexible turning. It can effectively replace conventional elbows in certain ventilation arrangements and allows 360-degree turns, helping reduce the risks associated with rigid elbow dead angles, bursting and cracking.
远见柔性螺旋通风风筒适用于隧道和矿山通风中需要转弯、弯折或灵活布置的区域。产品采用具有良好弹性的锰钢丝作为增强钢丝，并通过专用焊接设备加工，具有较好的外观、折叠性能和通风受力均匀性。
该产品可在正压送风条件下使用，也适用于需要灵活转向的地下通风布置。在部分通风系统中，柔性螺旋风筒可替代传统弯头，实现 360° 任意转弯，降低刚性弯头死角、爆裂和开裂等风险。
Applications
Typical applications

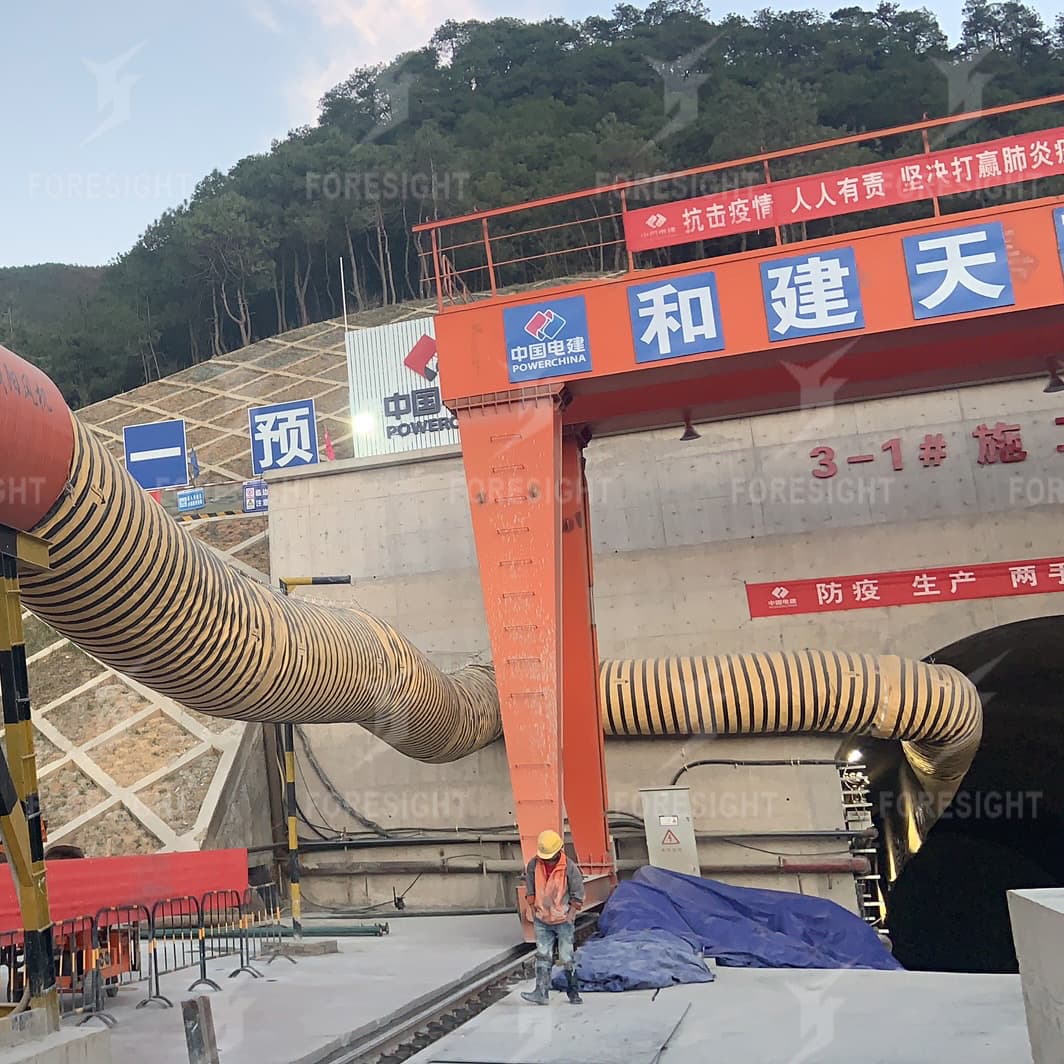

- Tunnel turning ventilation
- Mine turning ventilation
- Tunnel shafts
- Tunnel bends and corners
- Positive-pressure underground ventilation
- Flexible ventilation routing in confined spaces
- 隧道转弯通风
- 矿山转弯通风
- 隧道竖井
- 隧道弯道及转角区域
- 地下正压通风
- 受限空间柔性通风布置
Features
Key product features
- Reinforced with elastic manganese steel wire
- Suitable for positive and negative pressure ventilation
- Designed for underground turning ventilation
- Can make 360-degree turns
- Good folding performance
- Helps reduce rigid elbow dead-angle risks
- 采用弹性锰钢丝增强
- 适用于正压和负压通风
- 面向地下转弯通风设计
- 可实现 360° 转弯
- 具有良好折叠性能
- 有助于降低刚性弯头死角风险
Technical Information
Technical parameters
- Diameter: 300 mm to 3,000 mm.
- Length: 5 m to 20 m.
- Fire resistance standards: MSHA, DIN4102 B1, DIN75200 and NFPA701.
- Antistatic performance: optional.
- Application area: tunnel and mine turning ventilation.
技术参数
- 直径：300 mm 至 3,000 mm。
- 长度：5 m 至 20 m。
- 阻燃标准：MSHA、DIN4102 B1、DIN75200、NFPA701。
- 抗静电性能：可选。
- 应用领域：隧道和矿山转弯通风。
