Product Offering
Axial Flow Fan for Metro
地铁轴流风机
DTF series axial flow fans for metro ventilation and smoke exhaust applications, providing large air volume, high wind pressure and CCCF-certified fire ventilation performance.
DTF 系列地铁轴流风机适用于地铁通风及排烟应用，具备大风量、高风压和 CCCF 消防认证等特点。
Supplied by Shaoxing Shangyu Zheke Fan Co., Ltd.
Overview
Product overview

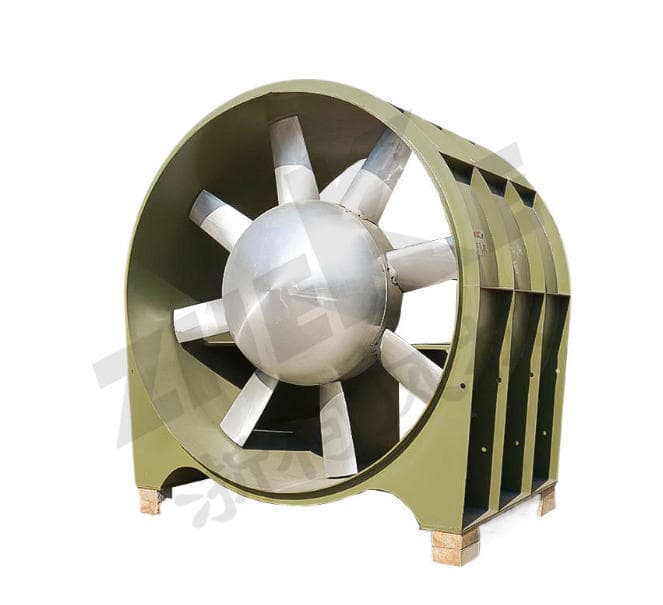

Zheke DTF series axial flow fans are designed for metro ventilation and smoke exhaust systems. The product is suitable for metro stations, tunnels and underground rail transit environments requiring large air volume, high wind pressure and reliable fire ventilation performance.
The fan is made from high-quality galvanized sheet and aluminium, with stainless steel available upon request. It supports air volumes up to 160,000 m³/h, wind pressure up to 1,600 Pa and diameters from 260 mm to 2,810 mm. The product has China CCCF fire certification and is suitable for metro ventilation and fire smoke exhaust applications.
浙柯 DTF 系列地铁轴流风机面向地铁通风及排烟系统设计，适用于地铁车站、区间隧道及地下轨道交通环境中对大风量、高风压和消防通风可靠性有要求的场景。
该产品采用优质镀锌板和铝材制造，也可根据需求选用不锈钢材质。风量最高可达 160,000 m³/h，风压最高可达 1,600 Pa，直径范围为 260 mm 至 2,810 mm。产品具备中国 CCCF 消防认证，适用于地铁通风和消防排烟应用。
Applications
Typical applications
- Metro station ventilation
- Metro tunnel ventilation
- Fire smoke exhaust systems
- Underground rail transit projects
- Emergency ventilation systems
- Large-volume air supply and exhaust systems
- 地铁车站通风
- 地铁区间隧道通风
- 消防排烟系统
- 地下轨道交通工程
- 应急通风系统
- 大风量送排风系统
Features
Key product features
- DTF series axial flow fan for metro applications
- China CCCF fire certification
- Large air volume up to 160,000 m³/h
- High wind pressure up to 1,600 Pa
- Galvanized sheet and aluminium construction
- Optional stainless steel material
- DTF 系列地铁专用轴流风机
- 具备中国 CCCF 消防认证
- 风量最高可达 160,000 m³/h
- 风压最高可达 1,600 Pa
- 采用镀锌板和铝材制造
- 可选不锈钢材质
Technical Information
Technical parameters
- Series: DTF series.
- Qualification certificate: China CCCF fire certificate.
- Material: high-quality galvanized sheet and aluminium; stainless steel available upon request.
- Air volume: up to 160,000 m³/h.
- Wind pressure: up to 1,600 Pa.
- Diameter: 260 mm to 2,810 mm.

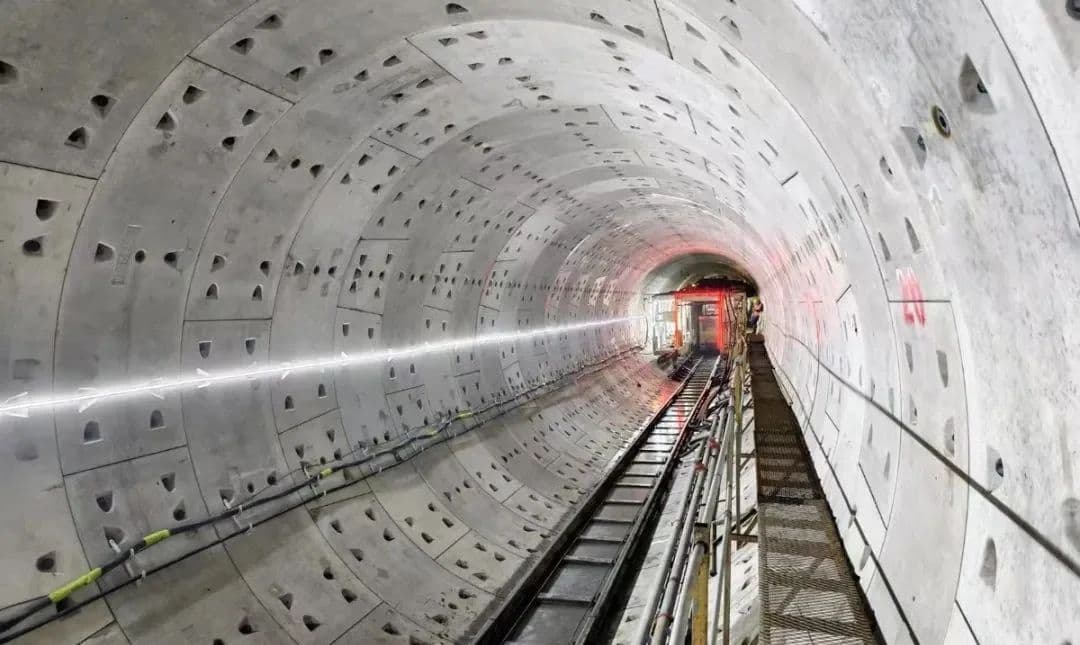

- Project references include Ningbo Metro Line 8, Jinan Metro Line 6, Ningbo Metro Line 6 and Urumqi Metro Line 2. In these metro projects, Zheke supplied axial flow fans for metro applications together with related smoke exhaust, fire damper and air valve products. In Urumqi Metro Line 2, axial fans worked with jet fans to support station and tunnel ventilation, antifreeze requirements, fire support and energy-efficient operation under cold and dry climate conditions.
技术参数
- 系列：DTF 系列。
- 资质证书：中国 CCCF 消防认证。
- 材料：优质镀锌板和铝材；可按需求选用不锈钢。
- 风量：最高 160,000 m³/h。
- 风压：最高 1,600 Pa。
- 直径：260 mm 至 2,810 mm。
- 项目案例包括宁波地铁8号线、济南地铁6号线、宁波地铁6号线和乌鲁木齐地铁2号线等。在这些地铁项目中，浙柯供应了地铁轴流风机，并配套相关排烟、防火阀和风阀产品。在乌鲁木齐地铁2号线项目中，轴流风机与射流风机协同工作，用于车站及区间通风、防冻、消防支持和寒冷干燥气候条件下的节能运行。
