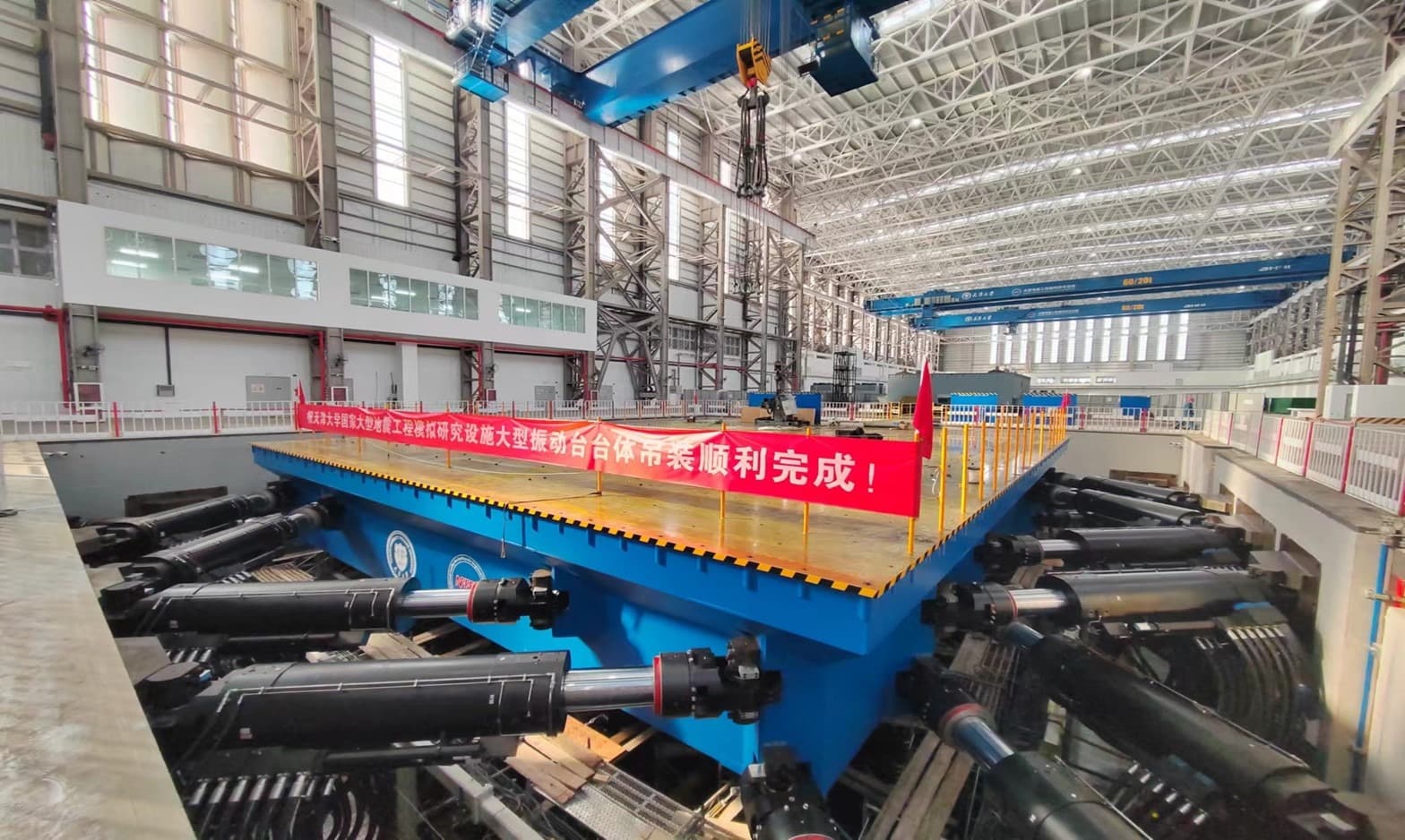

Large-scale seismic shaking table at the National Facility for Earthquake Engineering Simulation.

Engineering Service

Large-Scale Seismic Shaking Table Testing

大型振动台与工程抗震模拟试验

Large-scale seismic experiments for heavy structural models and engineering systems using a 20 m × 16 m shaking table with a maximum payload of 1,350 t.

依托20 m × 16 m、最大载重1,350 t的大型振动台，开展大尺寸、重载结构模型及工程体系地震模拟试验。

Supplied by National Facility for Earthquake Engineering Simulation (NFEES), Tianjin University

View Supplier Profile

Overview

Service overview

Large-scale shaking table testing supports investigations of structural response, component interaction, dynamic damage and seismic protection measures under controlled earthquake excitation. The experimental platform accommodates large and heavy models, allowing studies that may be difficult to reproduce on conventional laboratory tables.

Research applications include building structures, nuclear facilities, hydraulic infrastructure, long-span structural systems and engineering equipment. Experimental programmes can examine acceleration, displacement, deformation and other response characteristics in conjunction with instrumentation and post-test analysis.

大型振动台试验通过可控地震动输入，研究工程结构的动力响应、构件相互作用、损伤演化及抗震减震措施。试验平台能够承载大尺寸、重载模型，为常规实验室振动台难以覆盖的研究对象提供试验条件。

应用方向包括建筑结构、核能相关设施、水工结构、大跨度结构及工程设备等，可结合传感测量和试后分析，研究加速度、位移、变形及其他动力响应指标。

Scope

Service scope

Key components that may be provided for relevant engineering scenarios.

Table dimensions: 20 m × 16 m
Maximum payload: 1,350 t
Maximum full-load acceleration: 1.5g horizontal / 2.0g vertical
Large-model experimental capability for dynamic response and damage analysis

台面尺寸：20 m × 16 m
最大载重：1,350 t
满载最大加速度：水平向1.5g / 竖向2.0g
支持大型模型动力响应与损伤分析

Scenarios

Applicable project scenarios

Typical project conditions where this offering may be relevant.

Seismic response of multi-storey buildings
containment and foundation interaction in nuclear infrastructure
vibration control of long-span structures
seismic performance verification of large engineering models

多层建筑抗震响应
核安全壳与地基基础相互作用
大跨度结构振动控制
大型工程模型抗震性能研究

Offering Details

Technical Details & Applications

Key Equipment

The large-scale seismic shaking table has a 20 m × 16 m working surface and a maximum payload of 1,350 t. Rated full-load maximum accelerations are 1.5g horizontally and 2.0g vertically.

Representative Experimental Cases

Full-scale elastic specimen testing of a multi-storey steel frame (geometric scale 1:1; total weight of 600 t).
Nuclear containment–soil–foundation interaction testing.
Vibration-control testing of a beam-string structural system.

Experimental Approach

A test programme may integrate representative ground-motion inputs, instrumented structural models and measured responses to examine seismic behaviour and structural performance.
